5.5 Pedals
5.5.2 Mounting of pedal spring

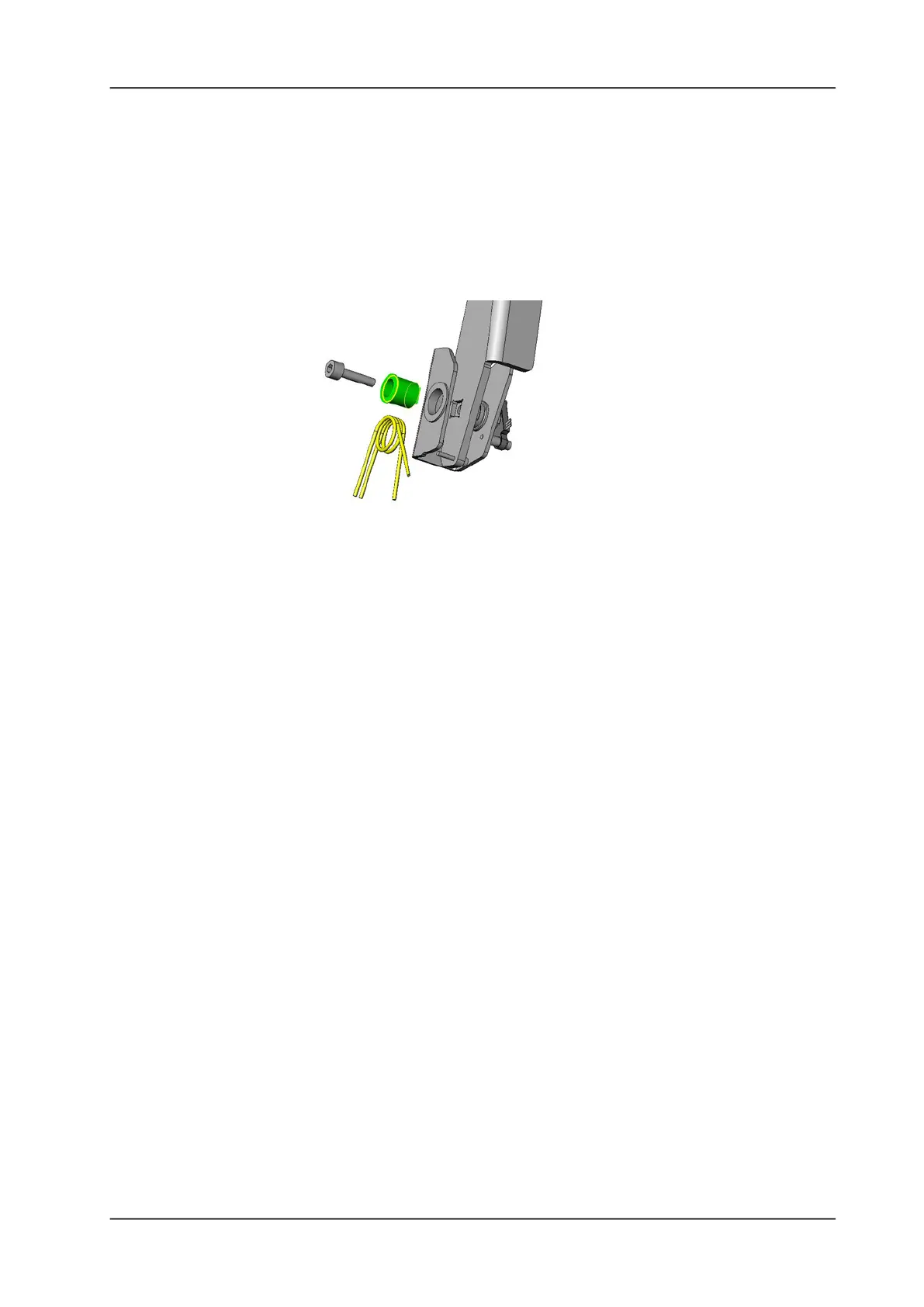

Picture 39: Mounting pedal spring
• Position the axle and mount the pedal torsion springs.
• Position the pedal and fixate it with the axle.
Remarks
When pressing both axles (4131527 & 4131528) together, make sure
that the pedal is nicely in the slot.
• Mount the screw to fixate the 2 axles.
• Position the pedal support and mount the 3 screws.
• Position the foot plate.
• Mount the two screws.
Remarks
For replacing of hall sensor refer to the chapter REMOVING OF HALL
SENSOR THROTTLE (refer to „Electrical“ section).
