6.6 Main relay
6.6.1 Removing of main relay

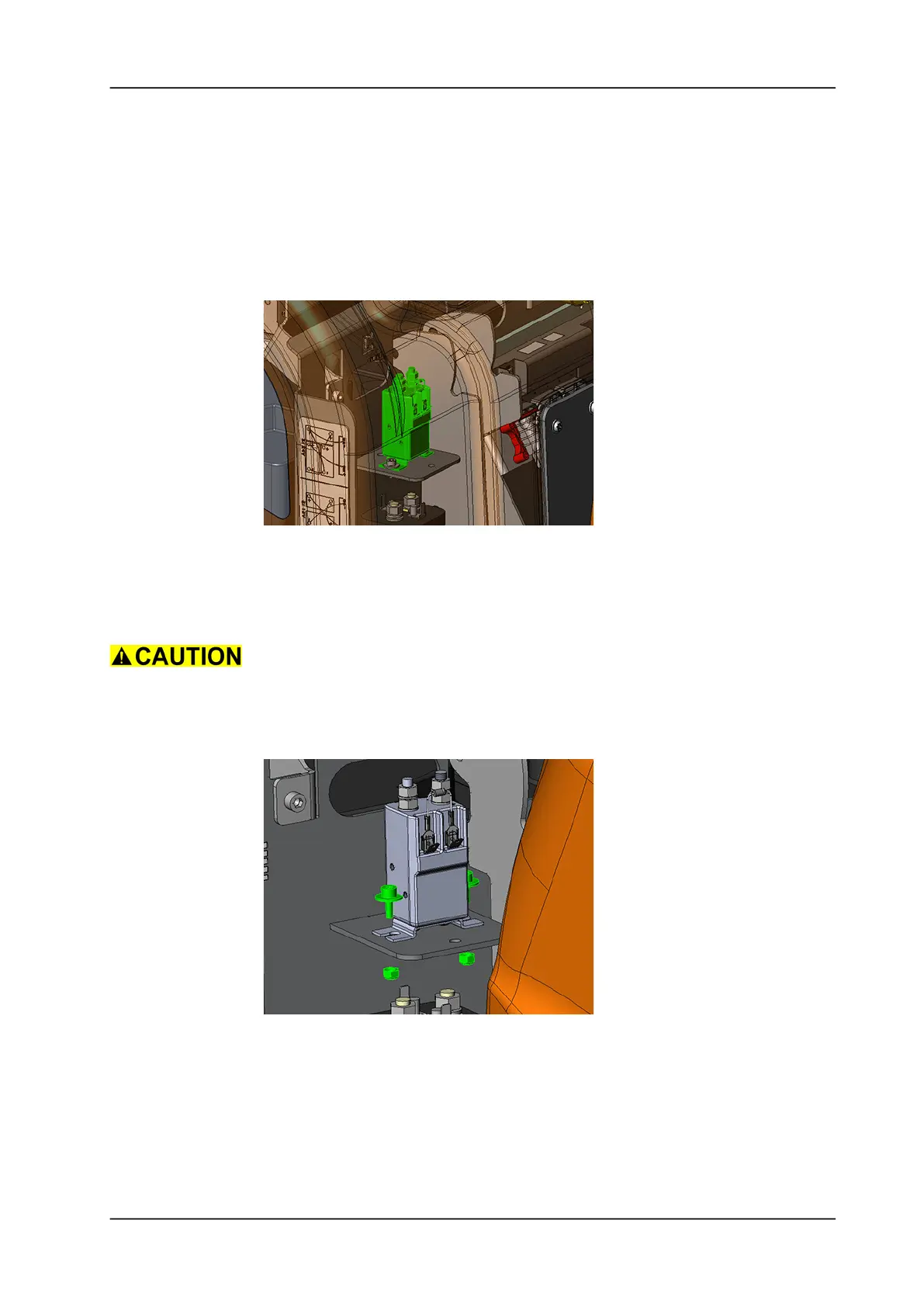

Picture 27: Main relay
• Remove the seat cover according to chapter REMOVING OF
DRIVER SEAT COVER (refer to “Mechanical” section).
• Disconnect the wires and the plugs of the main relay (4134244).
Make sure that you disconnect the batteries before disconnecting.
• Remove the 2 self-locking nuts (4062370), the 2 screws
(4006550) and the 2 washers (4060330) from the electrical
support (4131385).
Picture 28: Removing main relay
• Remove the main relay (4134244).
