5.6 Tool lowering unit
5.6.8 Mounting of linear drive

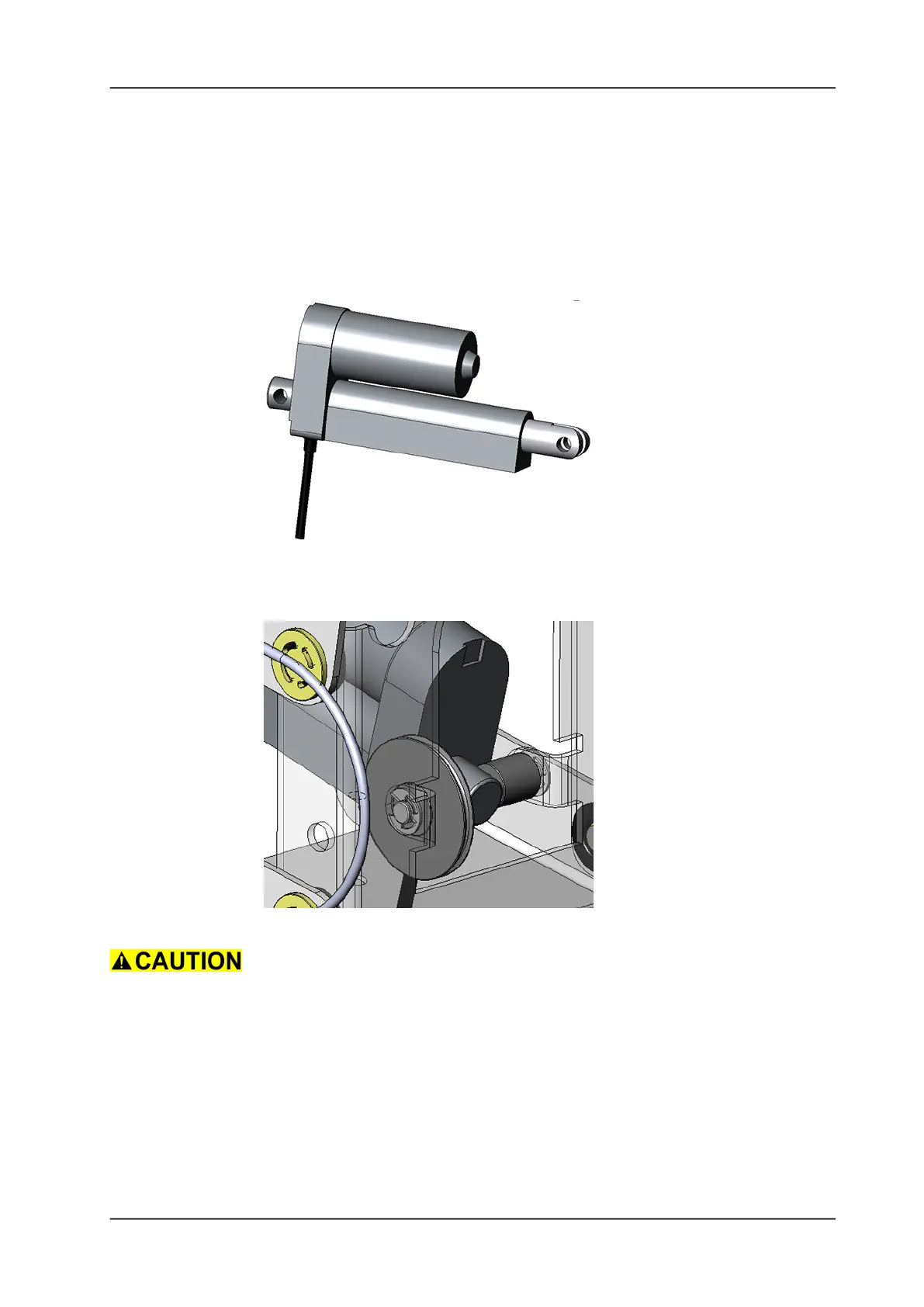

Picture 61: Linear drive unit
• Position the linear drive to mount the bolts.
• Mount the two bolts.
Picture 62: Mounting linear drive
Take care to position the linear drive correct.
Remarks
Make sure that you position the castor wheel (4134121) and the
distance bush (4134066) at the correct position.
