GTS Technical Manual
9. April 2021 Edition: V1.00/2021 5-50
Copyright © 2020, Diversey
05.32.17 drive unit - brake - 2100µicro_3500µicro_V1.10.fm
5.7 Drive unit
5.7.6 Mounting of brake

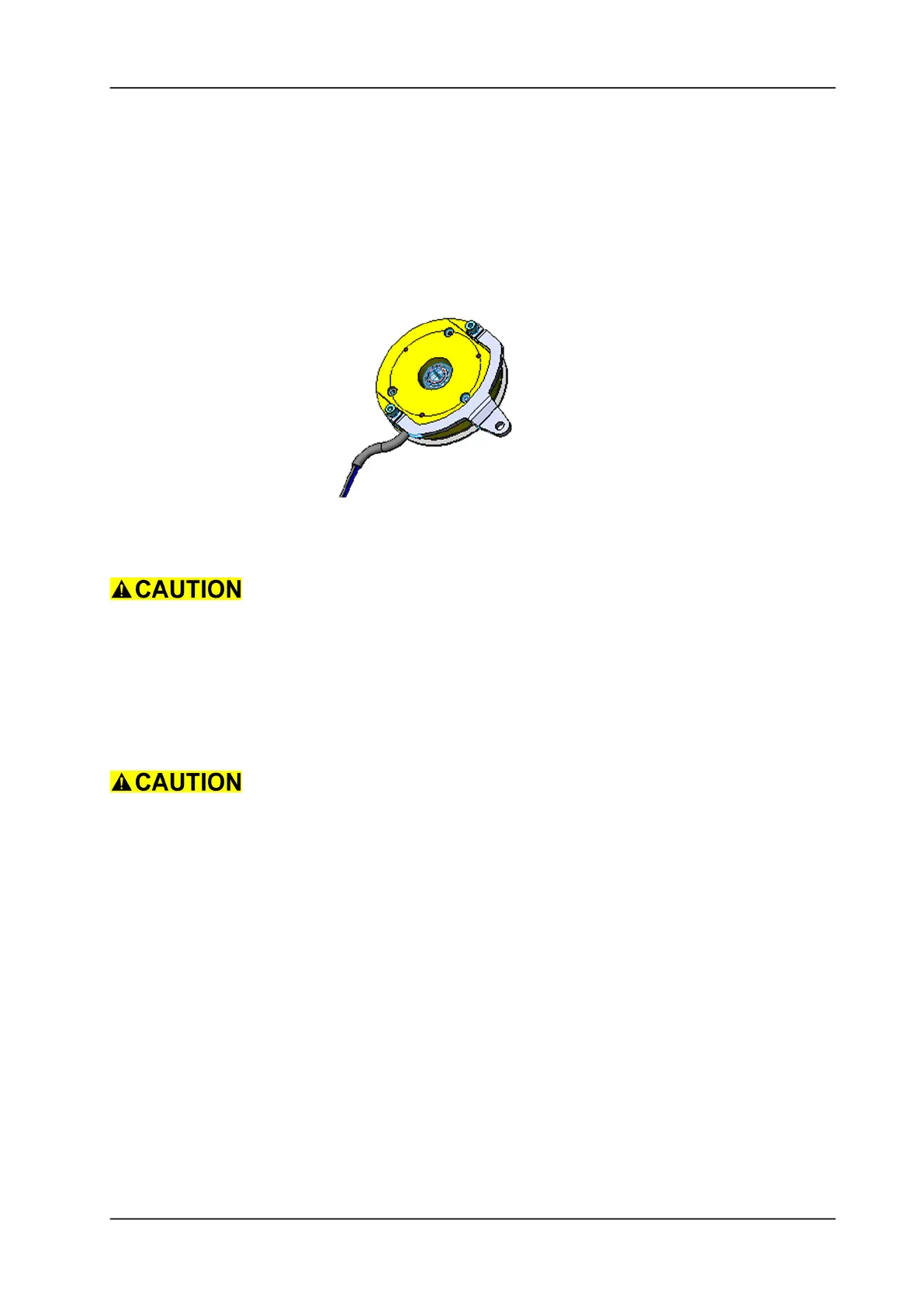

Picture 74: Brake
• Position the brake and mount the 3 screws.
Make sure that the brake is nicely in center with the axle. This needs
to be considered for mounting the encoder.
• Connect the connector of the brake.
• Complete assembly according to chapter MOUNTING OF
ENCODER.
• Complete assembly according to chapter MOUNTING OF DRIVE
WHEEL.
Make sure that you check the function of the brake during each visit
as this is a security feature.
