5.4 Steering unit
5.4.3 Removing of steering roller chain

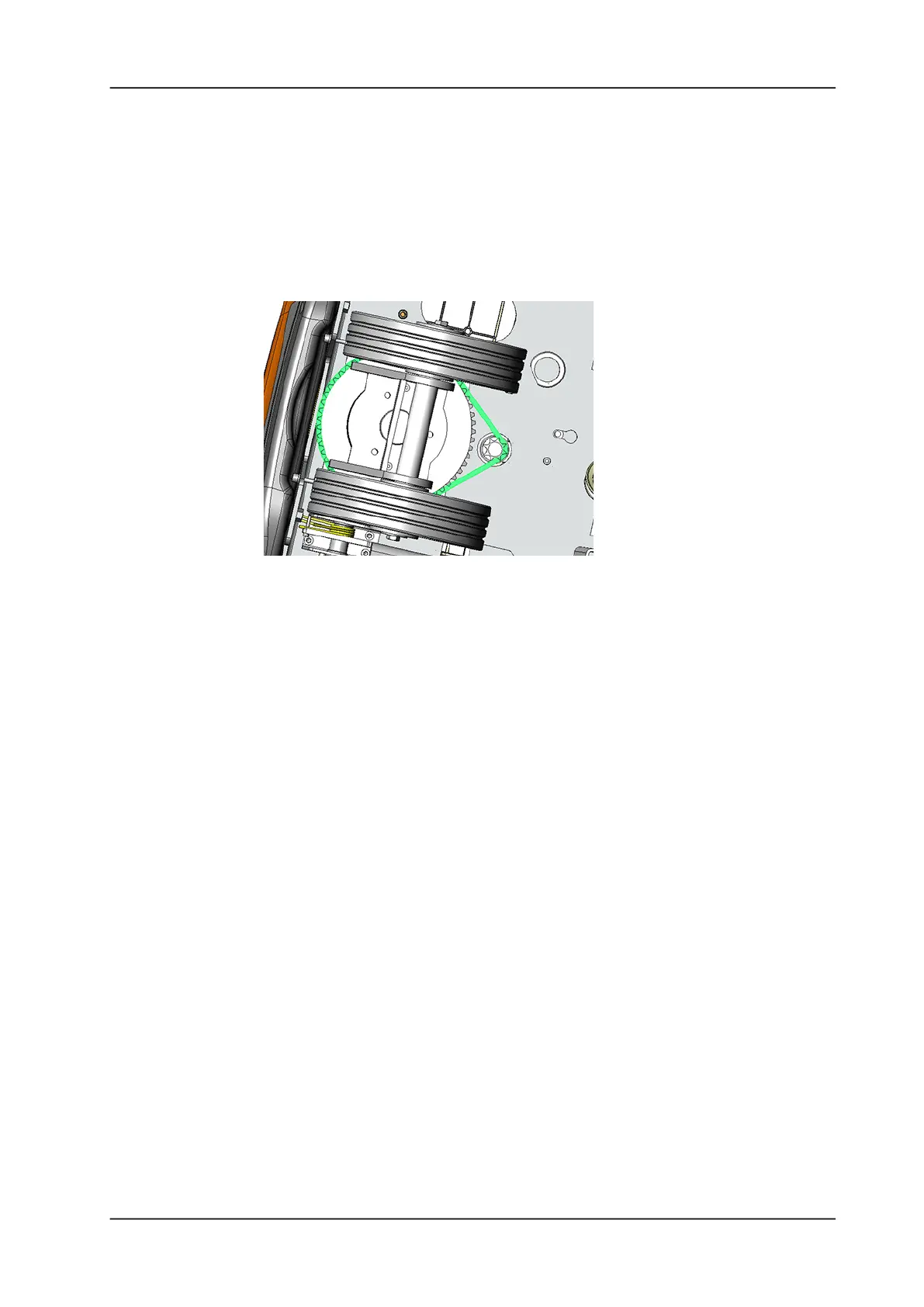

Picture 33: Steering roller chain
• Remove the front cover according to chapter REMOVING OF
FRONT COVER.
• Loosen the 4 self-locking nuts (4031060) of the steering unit
(4131239).
• Untighten the 2 tension screws (4006520) counter clock wise to
release tension of the steering roller chain (4131862).
• Remove the clip of the chain joint (4122221).
Remarks
The steering roller chain clip is at the bottom side of the chain.
• Remove the chain joint of the steering roller chain.
• Remove the steering roller chain from the chain wheels.
