5.6 Tool lowering unit
5.6.1 Removing of tool lowering unit

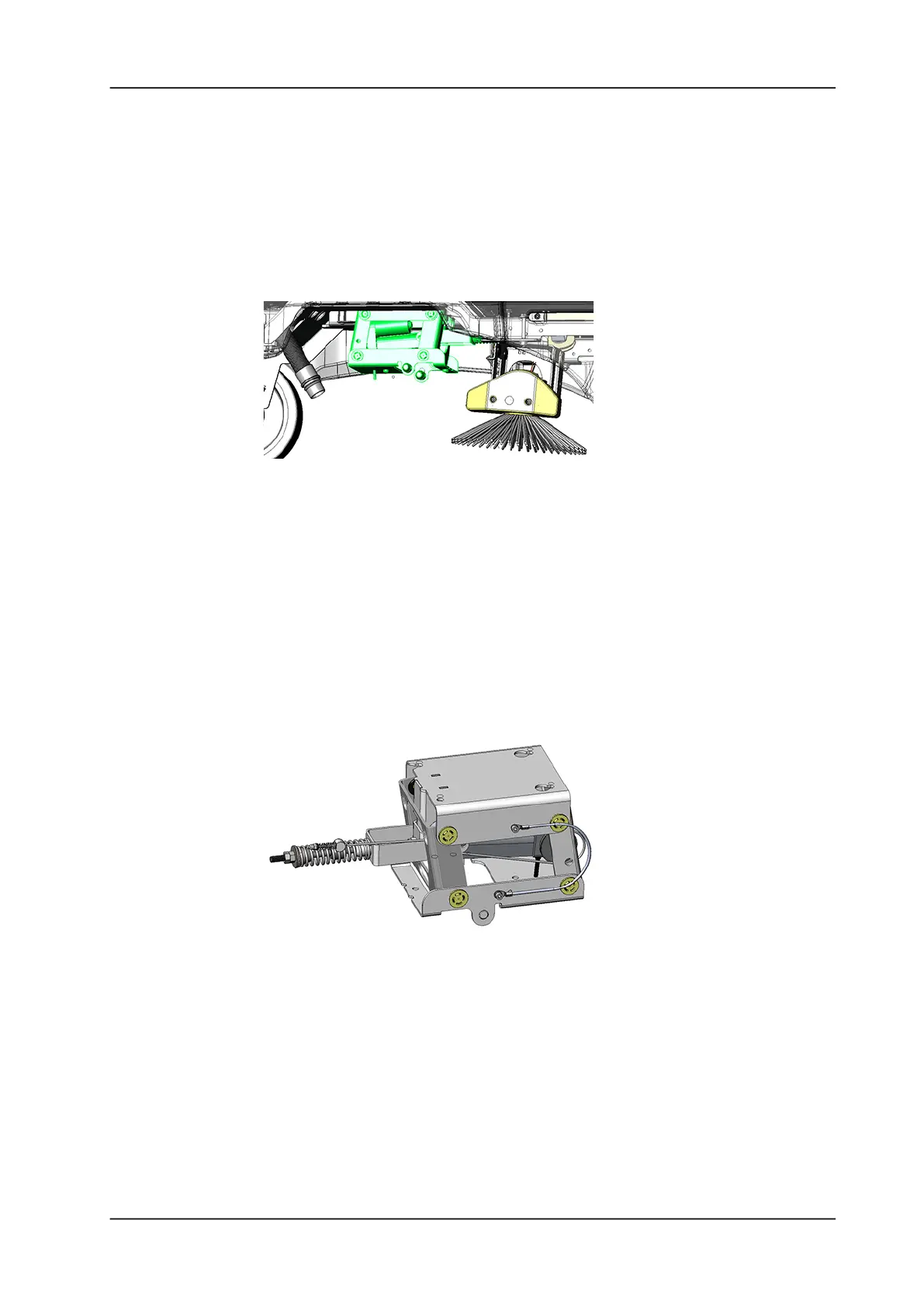

Picture 44: Tool lowering unit
• Remove the seat cover according to chapter REMOVING OF
DRIVER SEAT COVER.
• Remove the brush drive according to chapter REMOVING OF
BRUSH DRIVE.
• Disconnect the plug of the linear drive (4127185) at the
electronics (4131532).
Remarks
For correct position of the connections refer to chapter ELECTRONICS
CONNECTIONS (refer to “Electrical” section).
Picture 45: Tool lowering unit details
• Cut all cable ties for the fixation of the cables of the liner drive.
• Thread out the cable of the linear drive.
• Remove the retaining washer (4058370) of the metal rope holder
(4134070), which is located on the tool lowering offset.
• Thread out the ending of the metal rope trough the castor wheel.
Remarks
The metal rope (4134183) is for the lifting and lowering of the side
broom.
