6.5 Hall sensor
6.5.4 Removing of hall sensor throttle

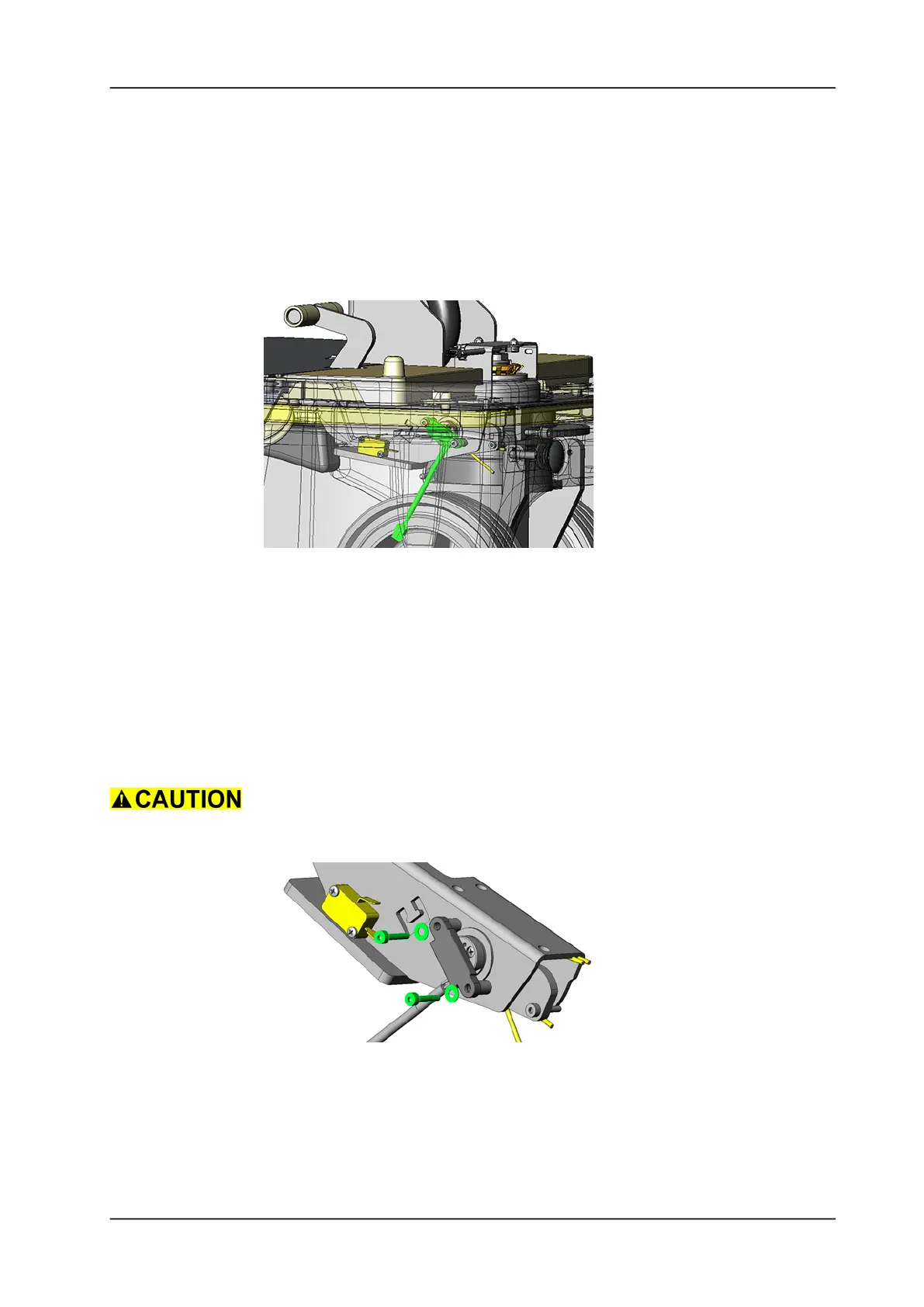

Picture 23: Hall sensor throttle
• Remove the seat cover according to chapter REMOVING OF
DRIVER SEAT COVER (refer to “Mechanical” section).
• Remove the throttle according to chapter REMOVING OF PEDAL
SPRING (refer to “Mechanical” section).
• Disconnect the cable for the hall sensor throttle (4131509) at the
electronics (4131532).
• Thread out the cable.
• Remove the 2 screws (4079170) and the 2 washers (4007440)
from the hall sensor throttle.
Be aware of the parts mounted on the screw (4079170) as they can fall
down when removing the screw.
Picture 24: Removing hall throttle
• Remove the hall sensor throttle.
