5.9 Brush drive
5.9.3 Removing of brush belt

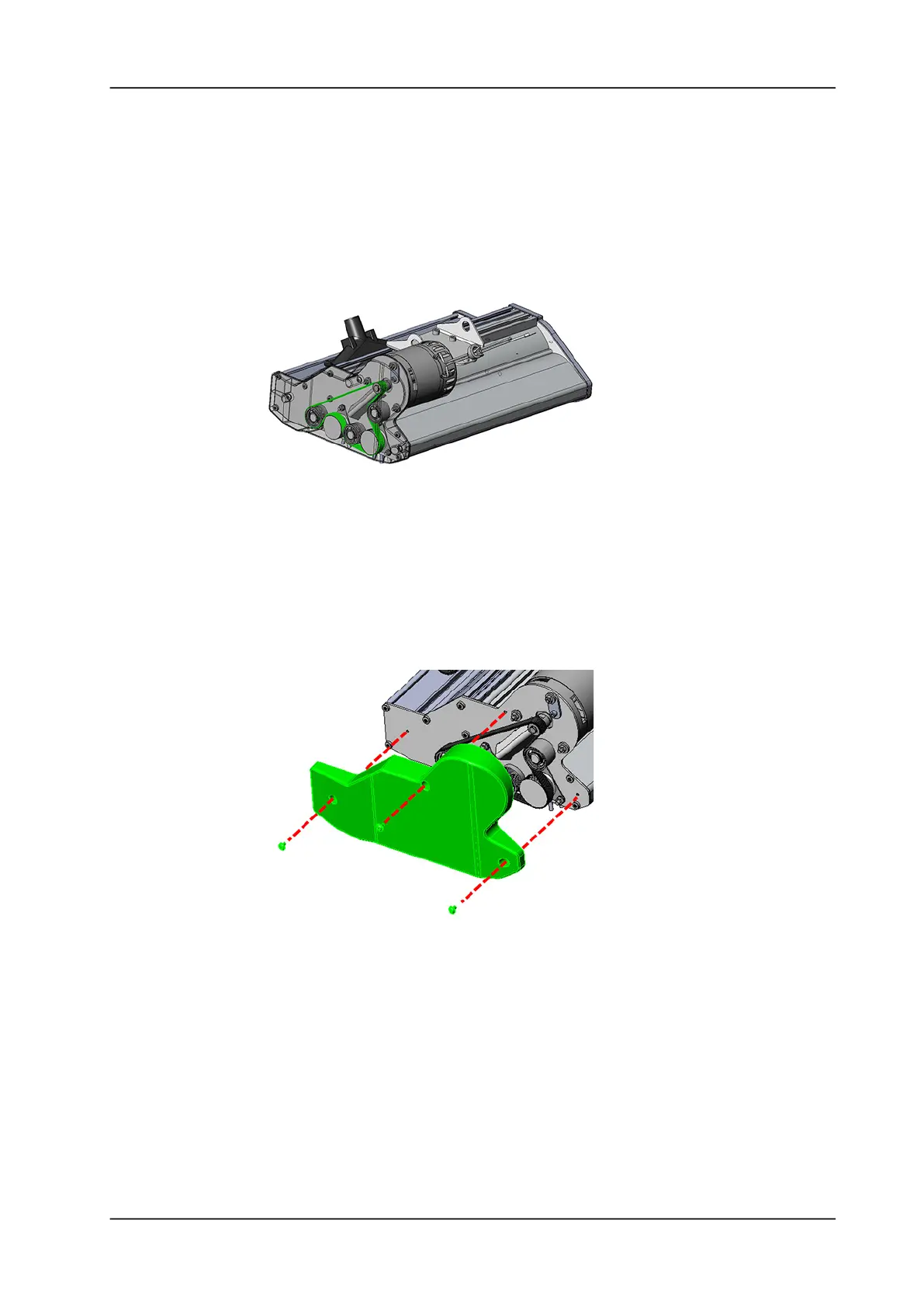

Picture 92: Brush belt
Remarks
No need to remove the brush drive for the following disabling steps.
Else remove brush drive according to chapter REMOVING OF BRUSH
DRIVE.
• Remove the 3 screws (4132896) for the belt cover (4134091).
• Remove the belt cover.
Picture 93: Removing brush belt cover
• Untighten the 3 fixation nuts (4007270) of the brush motor
(4130739).
• Remove the brush motor belt (4117030) as the tension is now
released.
