GTS Technical Manual
9. April 2021 Edition: V1.00/2021 5-2
Copyright © 2020, Diversey
05.20.18 upper part, tank - tank cover - 3500µicro_V1.00.fm
5.1 Upper part, tank
5.1.2 Mounting of tank cover

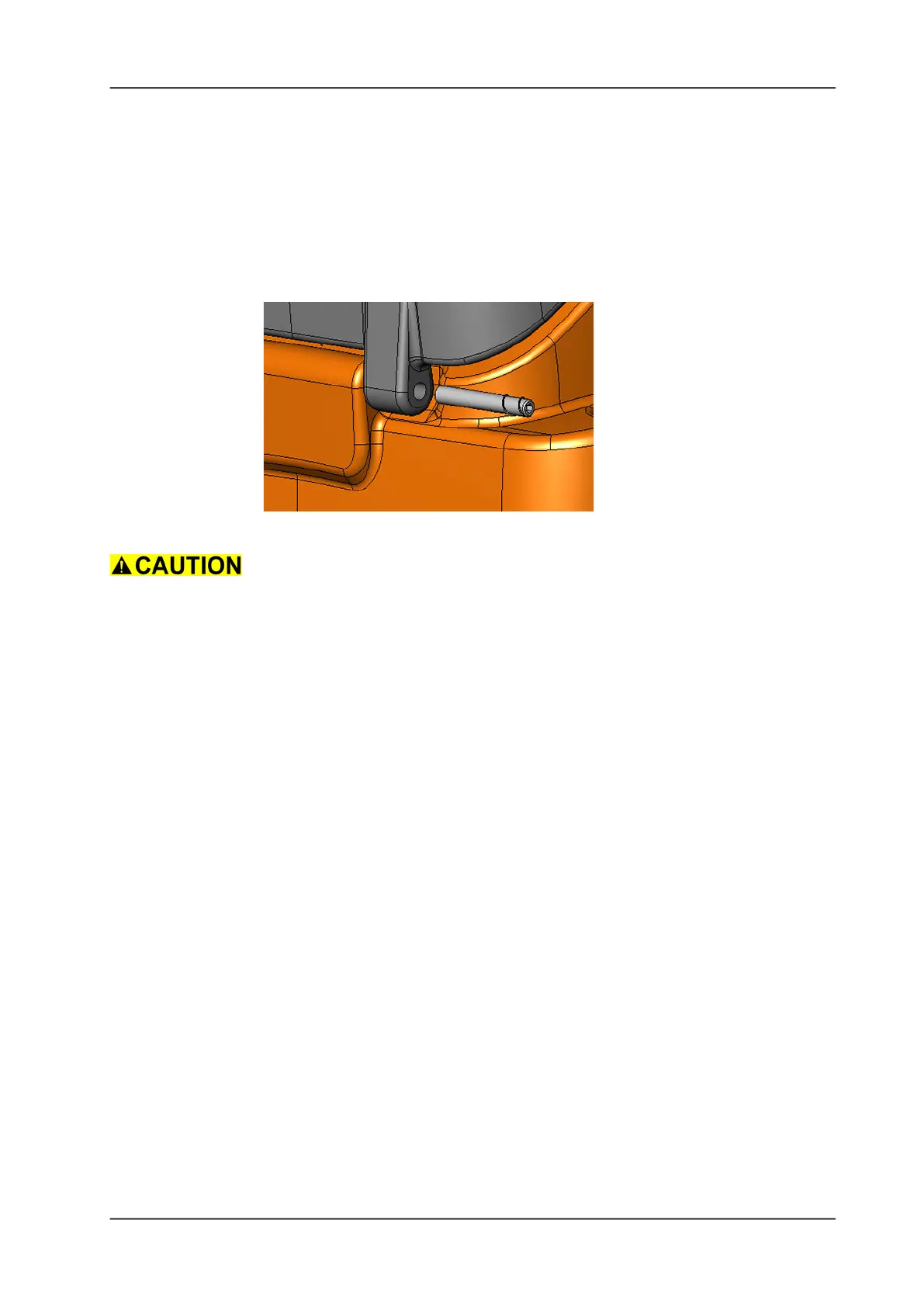

Picture 2: Mounting tank cover
Assemble the tank cover locking plate (4134111) at the end of this
sequence.
• Position the tank cover.
• Mount the two hinge bolts.
• Open the tank cover.
• Position the tilt support cord (4134313) and tighten the screw.
• Close the tank cover.
• Place all accessories and hoses onto the tank cover.
Remarks
Make sure that the tank cover sealing (4122621) is positioned
properly, is in a good condition and sealing the tank.
