GTS Technical Manual
9. April 2021 Edition: V1.00/2021 5-45
Copyright © 2020, Diversey
05.32.16 drive unit - encoder - 2100µicro_3500µicro_V1.10.fm
5.7 Drive unit
5.7.3 Removing of encoder

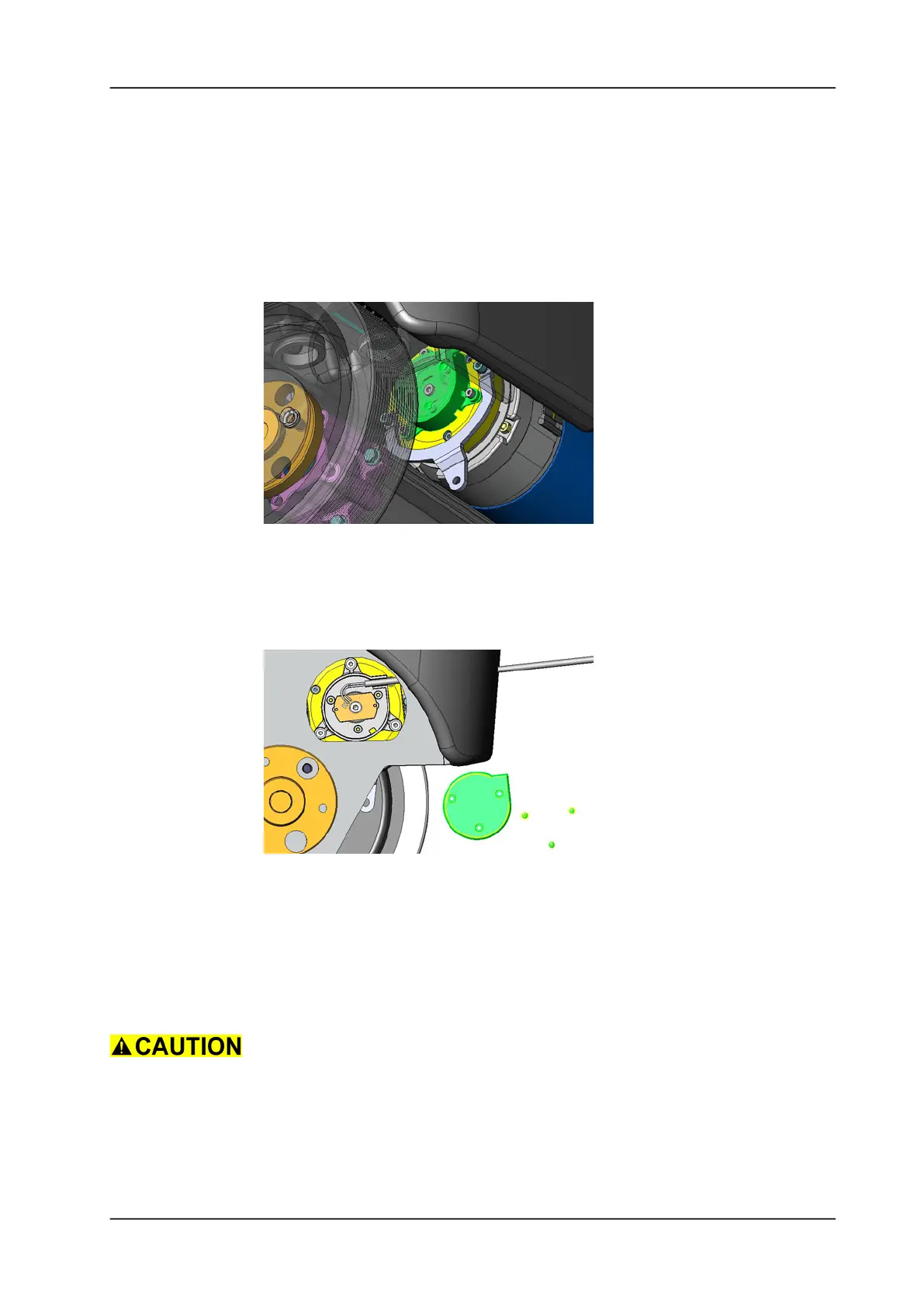

Picture 67: Encoder
Remove the drive wheel according to chapter REMOVING OF
DRIVE WHEEL.
Remove the 3 screws (4062760) for the cover (4131525).
Remove the cover.
Picture 68: Removing encoder
Remove the rotary encoder (4131514) by lifting it off the
housing (4131524).
Thread out the cable of the rotary encoder.
Disconnect the rotary encoder at the electronics (4131532).
Loosen the Allen screw for the magnet compl (4131543).
Remove the magnet compl.
The magnet is only glued onto the bushing. Take care when handling
it.
