GTS Technical Manual
9. April 2021 Edition: V1.00/2021 6-25
Copyright © 2020, Diversey
06.22.19 hall sensors - steering angle - 3500µicro_V1.00.fm
6.5 Hall sensor
6.5.2 Removing of hall sensor steering angle

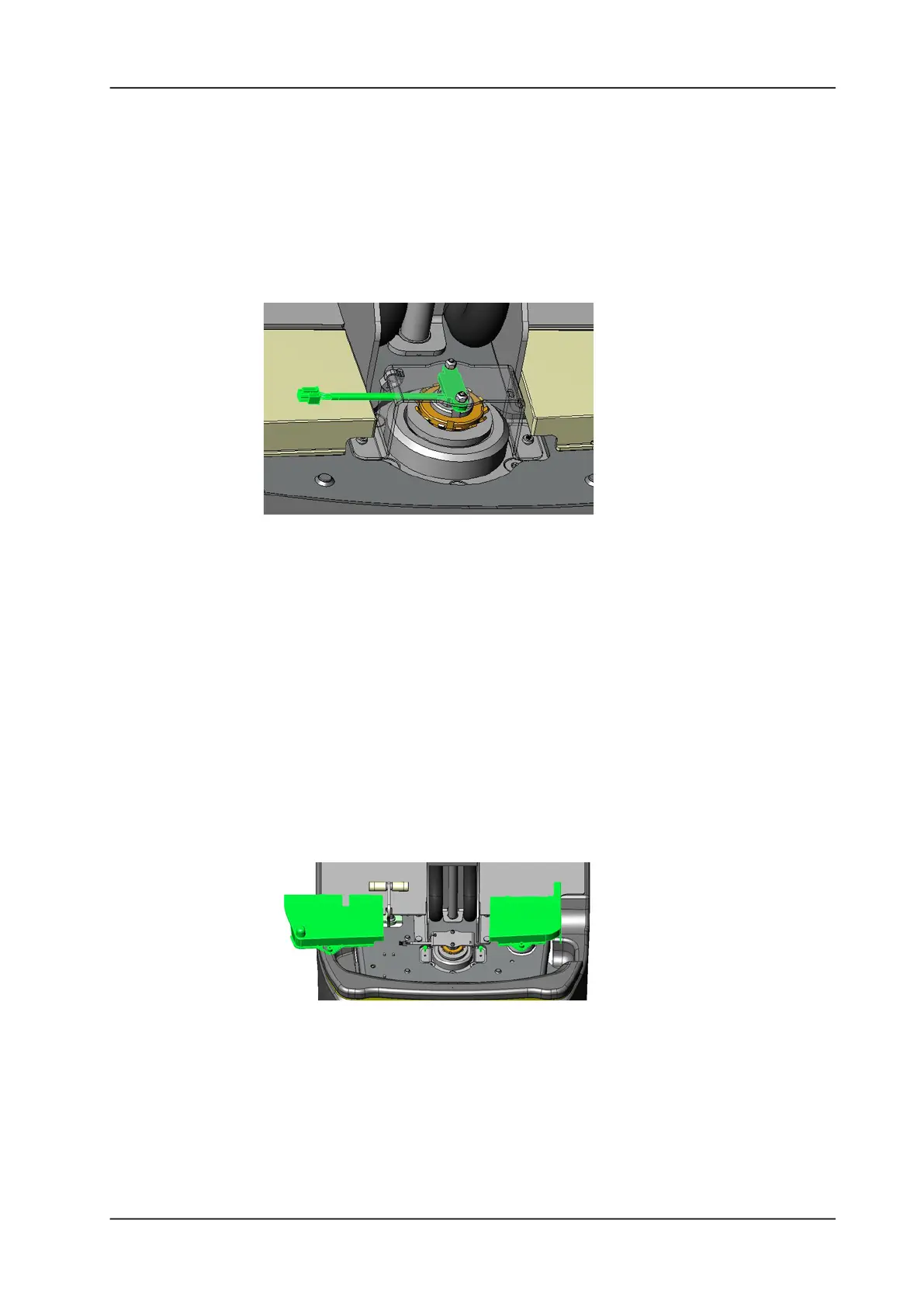

Picture 19: Hall sensor steering angle
• Remove the seat cover according to chapter REMOVING OF
DRIVER SEAT COVER (refer to “Mechanical” section).
• Remove the fresh front hood according to chapter REMOVING OF
FRONT HOOD (refer to „Mechanical” section).
• Remove the 2 screws (4129073) of the foot cover (4131666).
• Remove the foot cover.
• Disconnect the cable for the hall sensor steering angle
(4131503) at the electronics (4131532).
• Thread out the cable.
• Remove the screw (4087930) for the LH cover (4131686).
• Remove the cover.
• Remove the screw (4087930) for the RH cover (4131687).
• Remove the cover.
• Remove the 2 screws (4122950) for the hall sensor holder
(4131455).
Picture 20: Removing hall sensor steering angle
• Remove the hall sensor holder.
• Remove the 2 self-locking nuts (4007330) and the 2 screws
(4122950) from the hall sensor holder.
• Remove the hall sensor for steering angle.
