5.9 Brush drive
5.9.5 Removing of brush coupling set

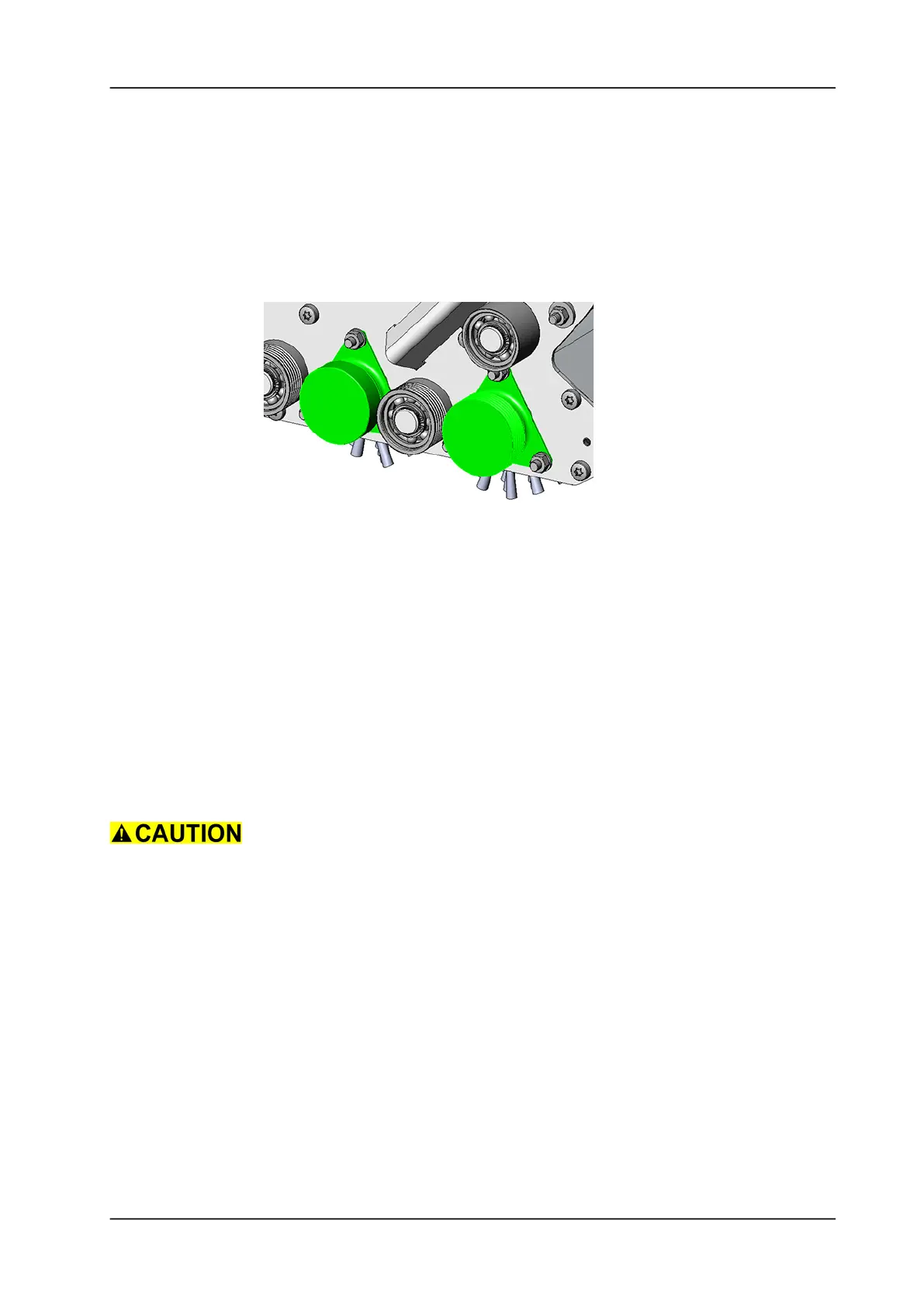

Picture 97: Brush coupling
• Remove the tools from the brush unit.
Remarks
No need to remove the brush drive for the following disabling steps.
Else remove brush drive according to chapter REMOVING OF BRUSH
DRIVE.
• Remove brush belt according to chapter REMOVING OF BRUSH
BELT.
• Remove the 3 nuts (4007270) from each bush coupling sets.
• Remove the brush coupling set (4134043) or (4134044).
The brush coupling set with the number (4133403) got grooves on it.
Please ensure that it is mounted onto the correct position, therefore
on the front side in driving direction. Refer to the mounting picture as
well as to TASKI spares.
• According to what you need to exchange, remove the existing
parts from the roller drive and place it on the new one.
Remarks
You do get each part of the bush coupling sets separately. For
individual parts, please refer to TASKI spares.
