5.9 Brush drive
5.9.1 Removing of brush drive

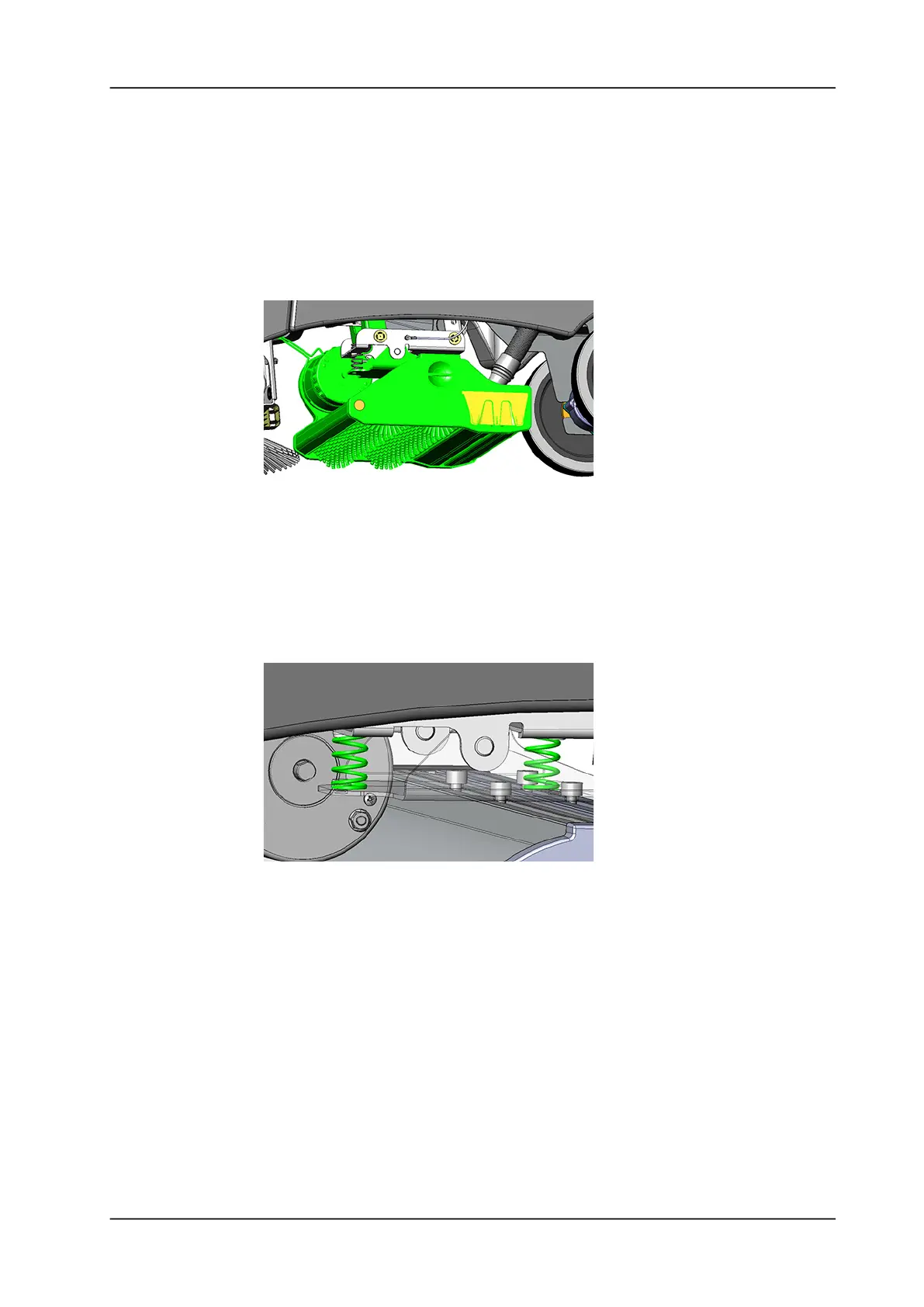

Picture 86: Brush drive
Remarks
Remove the tools from the brush unit as it is easier to handle.
No need to lower the brush deck. Leave it in the upper position. This
will allow you to pivot the brush deck for further disassembly steps.
Picture 87: Remove pressure spring
• Remove the two pressure springs (4130351) at the front and
back of the lowering unit.
Remarks
To remove the pressure springs, you need to tilt the brush deck to the
back side, then to the front side. This will allow the two pressure
springs to be pulled out.
• Remove the hose (4131479) from the connection socket
(4134054).
• Remove the stop pin (4127880).
