GTS Technical Manual
9. April 2021 Edition: V1.00/2021 5-57
Copyright © 2020, Diversey
05.42.21 lower part - front cover - 3500µicro_V1.00.fm
• Place the foot cover and mount the 2 screws.
Adjustment
The 2 screws (4109990) on the left and the right flank of the front
cover are for adjustment to align the front cover and the platform
(4131362).

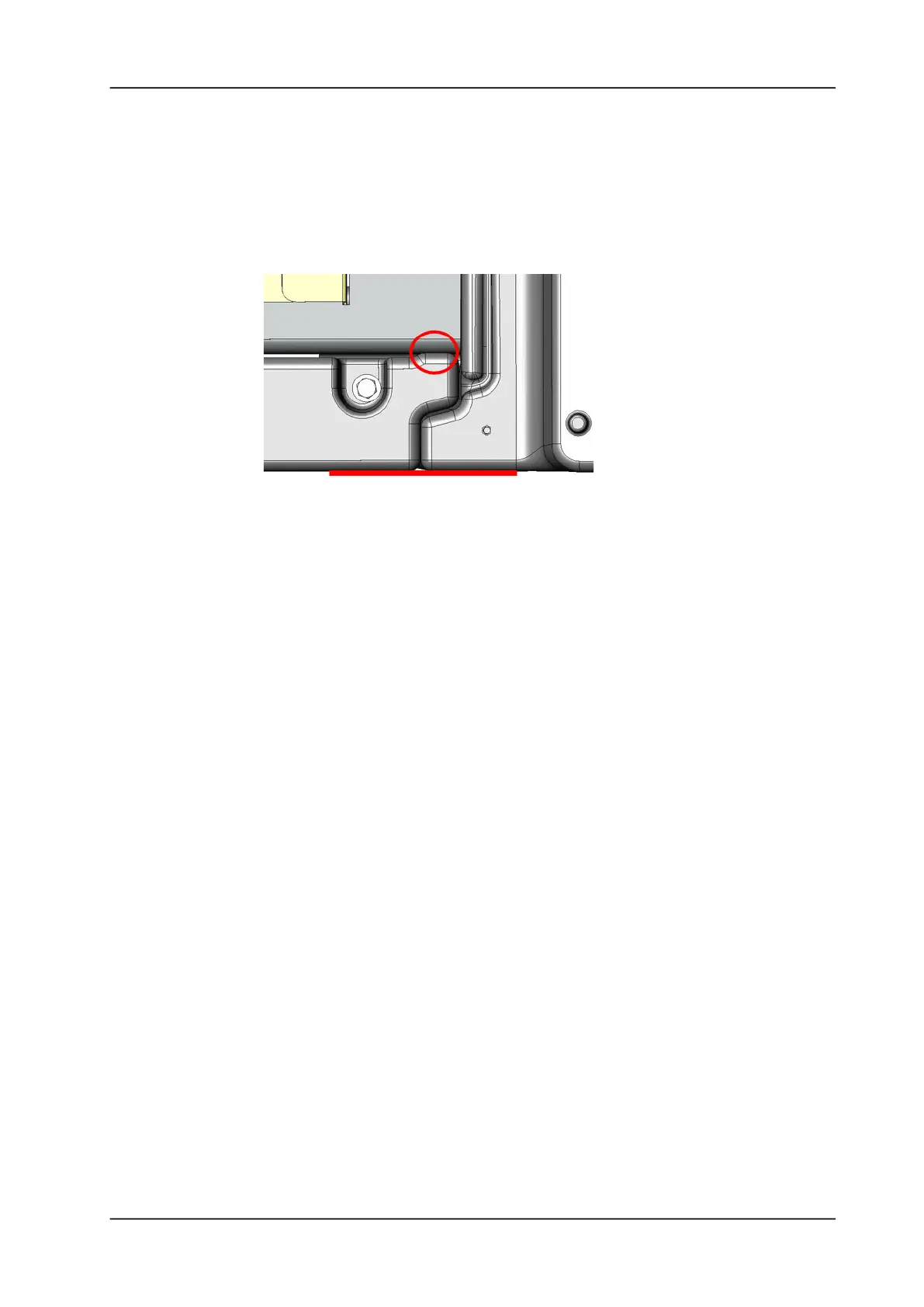

Picture 85: Front cover adjustment
