6.3 Electronics
6.3.3 Connections

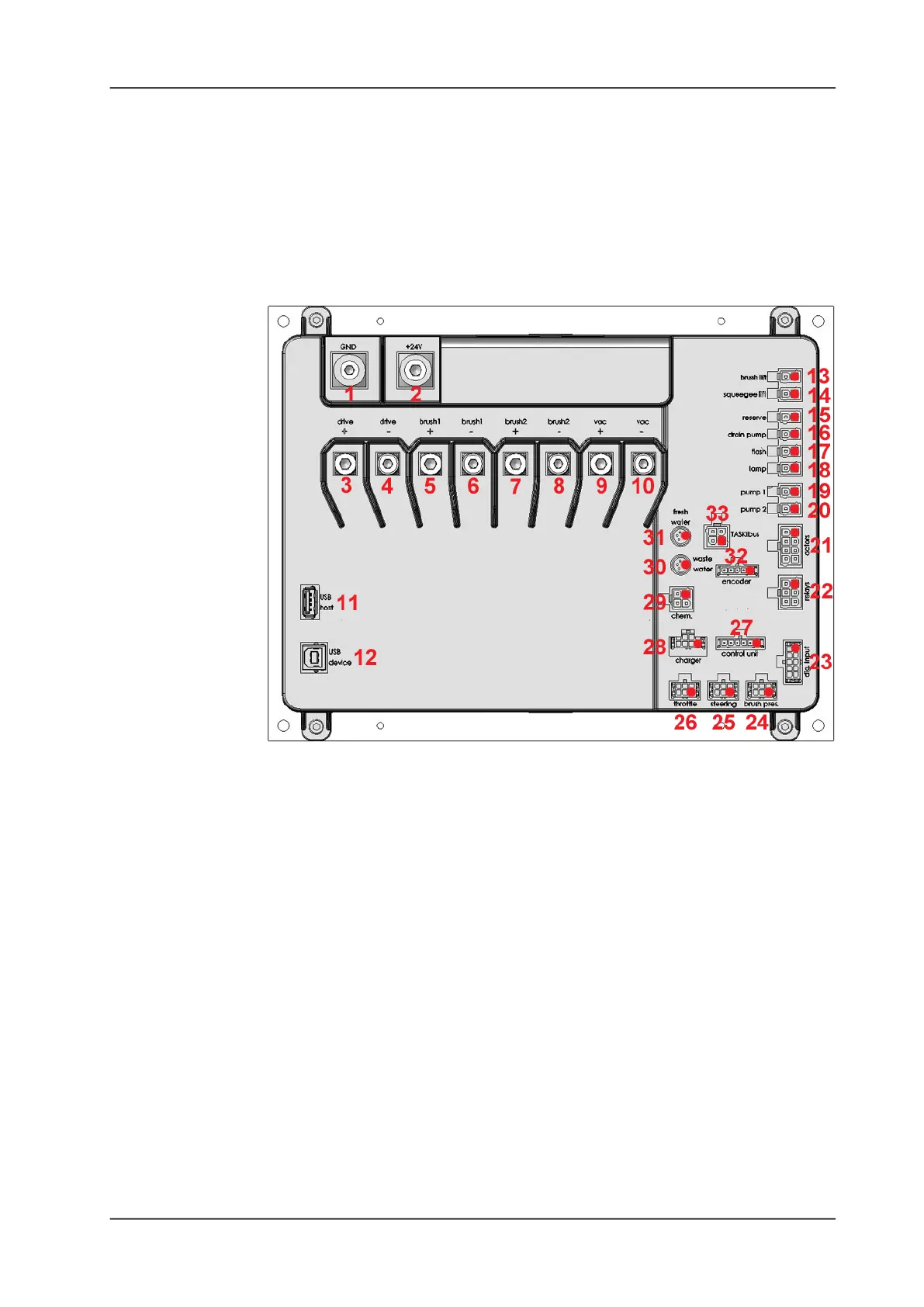

Picture 12: Electronics connections
Please find description of the connections on the following table. The connections are
marked in the upper picture (Picture: Electronics connections) with numbers and the pin
1 of the connections is marked with a red dot.
