GTS Technical Manual
9. April 2021 Edition: V1.00/2021 5-27
Copyright © 2020, Diversey
05.28.11 pedals - pedal spring - 2100µicro_3500µicro_V1.10.fm
5.5 Pedals
5.5.1 Removing of pedal spring

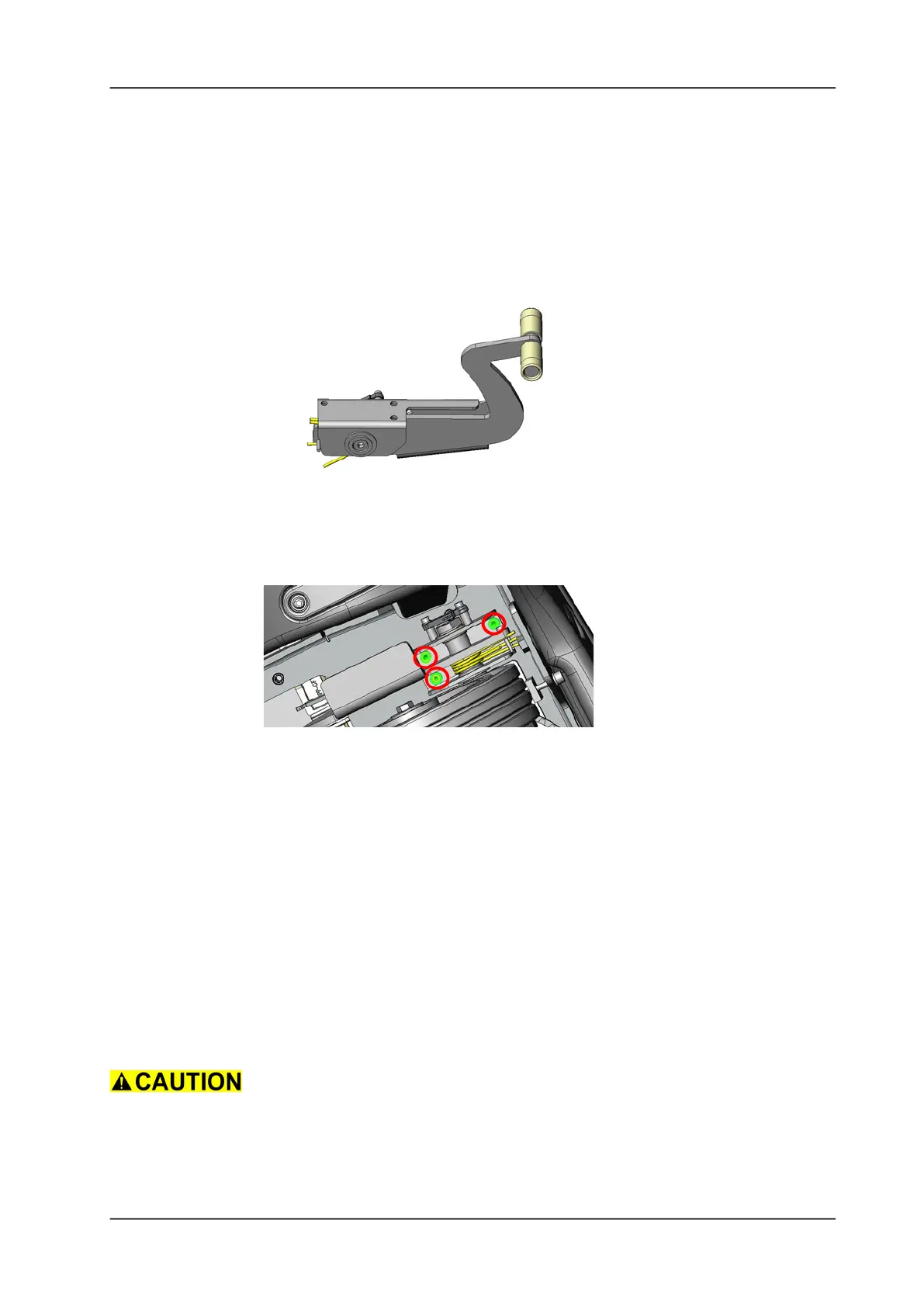

Picture 37: Pedal unit
Remove the 2 screws (4129073) of the foot cover (4131666).
Remove the foot cover.
Remove the 3 screws (4006430) of the pedal support (4131521).
Picture 38: Removing pedal unit
Remove the complete pedal from the chassis.
Remarks
You can either thread it to the bottom or to the top for easier access.
Remove the screw (4042640) of the axle (4131528).
Remove the axle (4131528).
Remarks
To remove the axle it can help to push the pedal (4131522) sideways.
Remove the pedal torsion springs (4129039).
Take care when removing the torsion springs (4129039) as they are
under tension.
