GTS Technical Manual
9. April 2021 Edition: V1.00/2021 5-21
Copyright © 2020, Diversey
05.26.22 guidance - front hood - 3500µicro_V1.00.fm
5.4 Guidance
5.4.2 Mounting of front hood

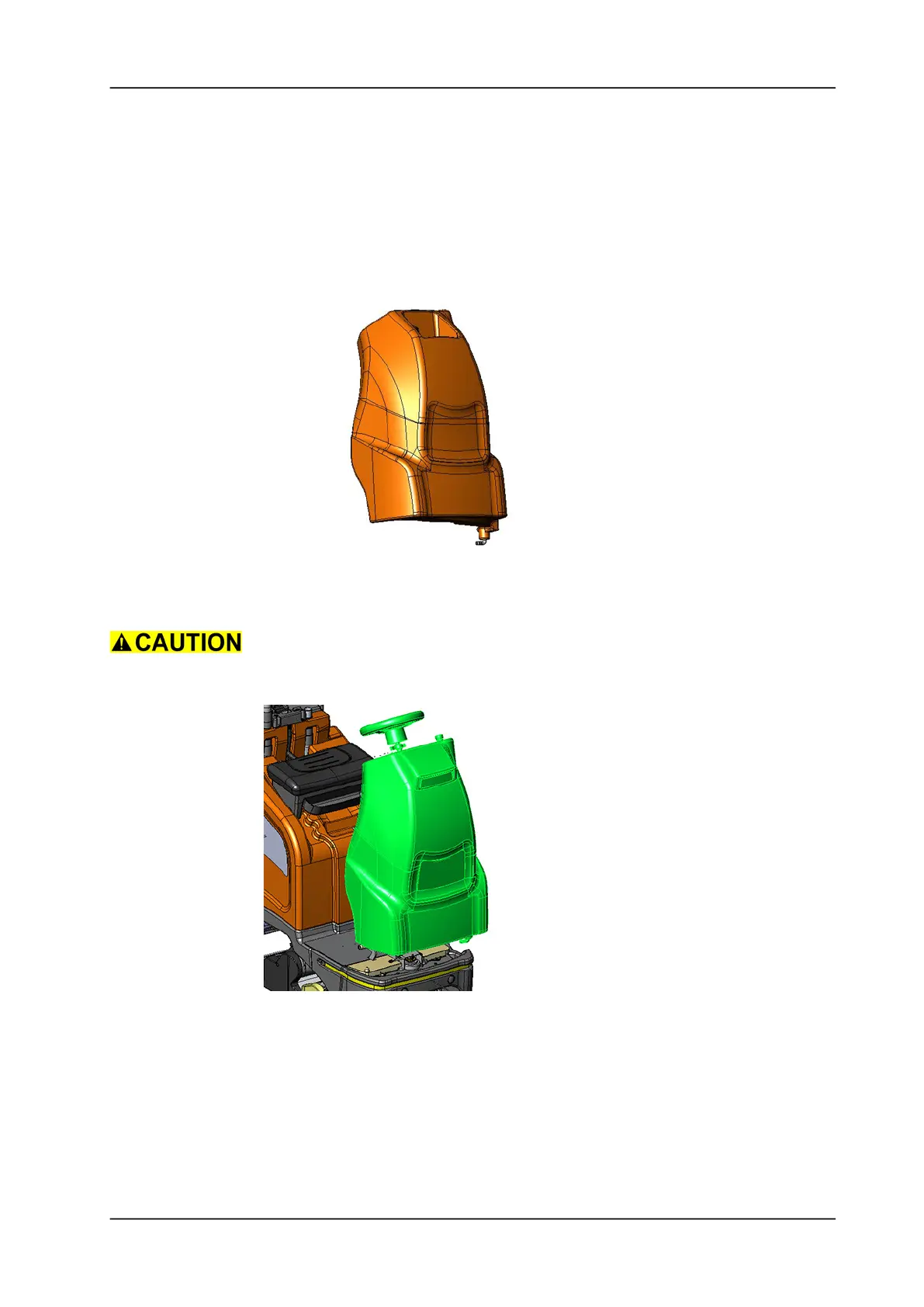

Picture 31: Front hood unit
• Position the front hood on the machine.
Tank care of the cables, connectors and hose inside the steering
support (4131371) positioning the front hood on the machine.
Picture 32: Mounting front hood
• Position the steering pipe into the Cardan Joint.
• Tighten the self-locking nut and screw of the Cardan joint.
• Position the holder plate and mount the 4 screws which fixate
the holder plate and the front hood.
• Mount the 2 screws for the fixation of the holder plate to the
steering support.
• Position the cover and mount the 6 screws for the cover.
