5.6 Tool lowering unit
5.6.3 Removing of tool lowering offset

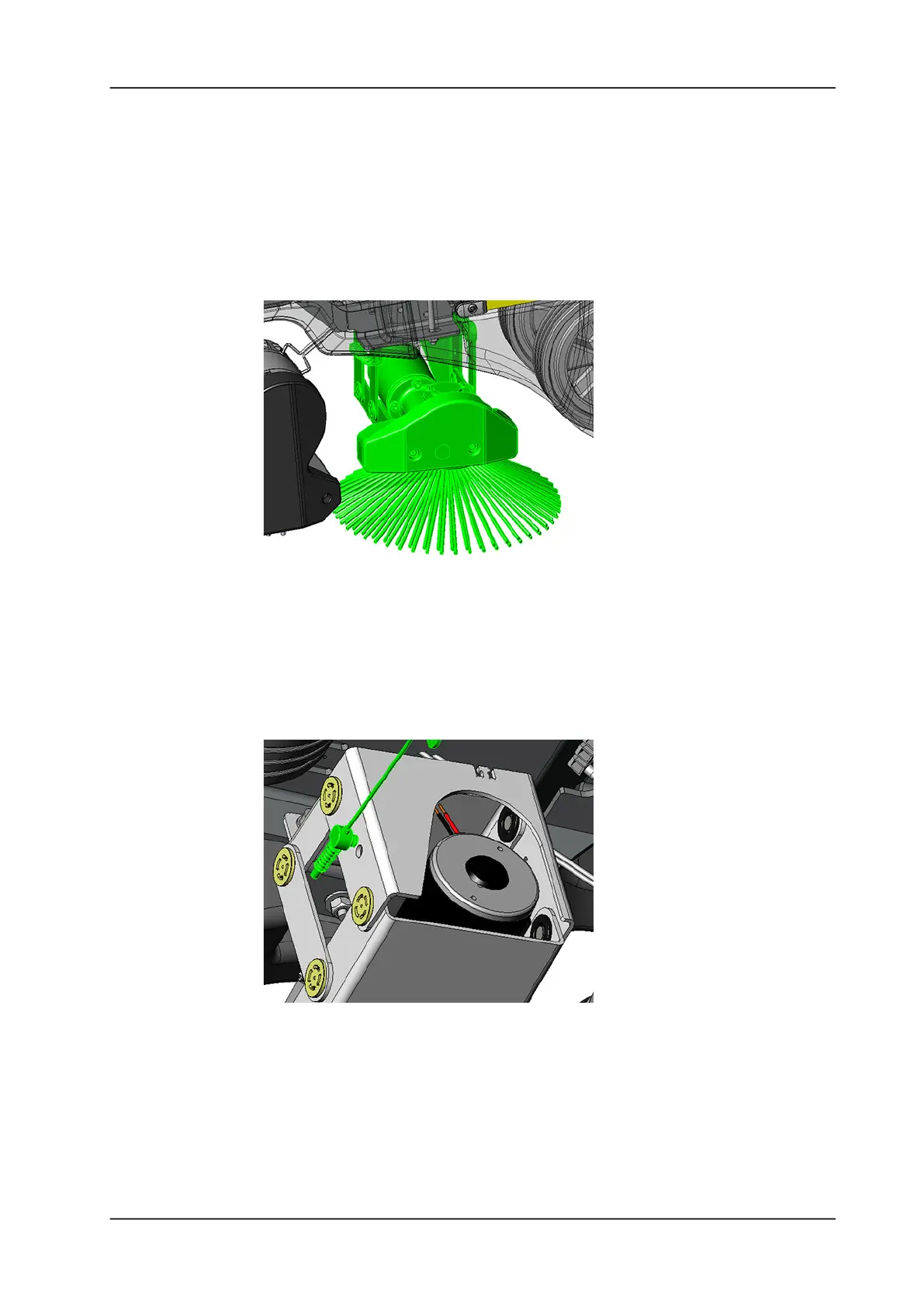

Picture 51: Linear drive for offset
• Remove the tool.
• Lower the brush drive for easier access.
• Disconnect the brush motor wires from the connection block
(4082740) which is mounted on the chassis (4131386).
• Remove the retaining washer (4058370) from the bolt (4134070)
of the metal rope (4134182).
• Remove the bolt out of the lowering unit.
Picture 52: Metal rope fixation
• Remove the three screws (4065050) of the tool lowering which
fixates it onto the chassis (4131386).
• Remove the tool lowering offset.
