05.30.24 tool lowering unit - lowering offset - 3500µicro_V1.00.fm

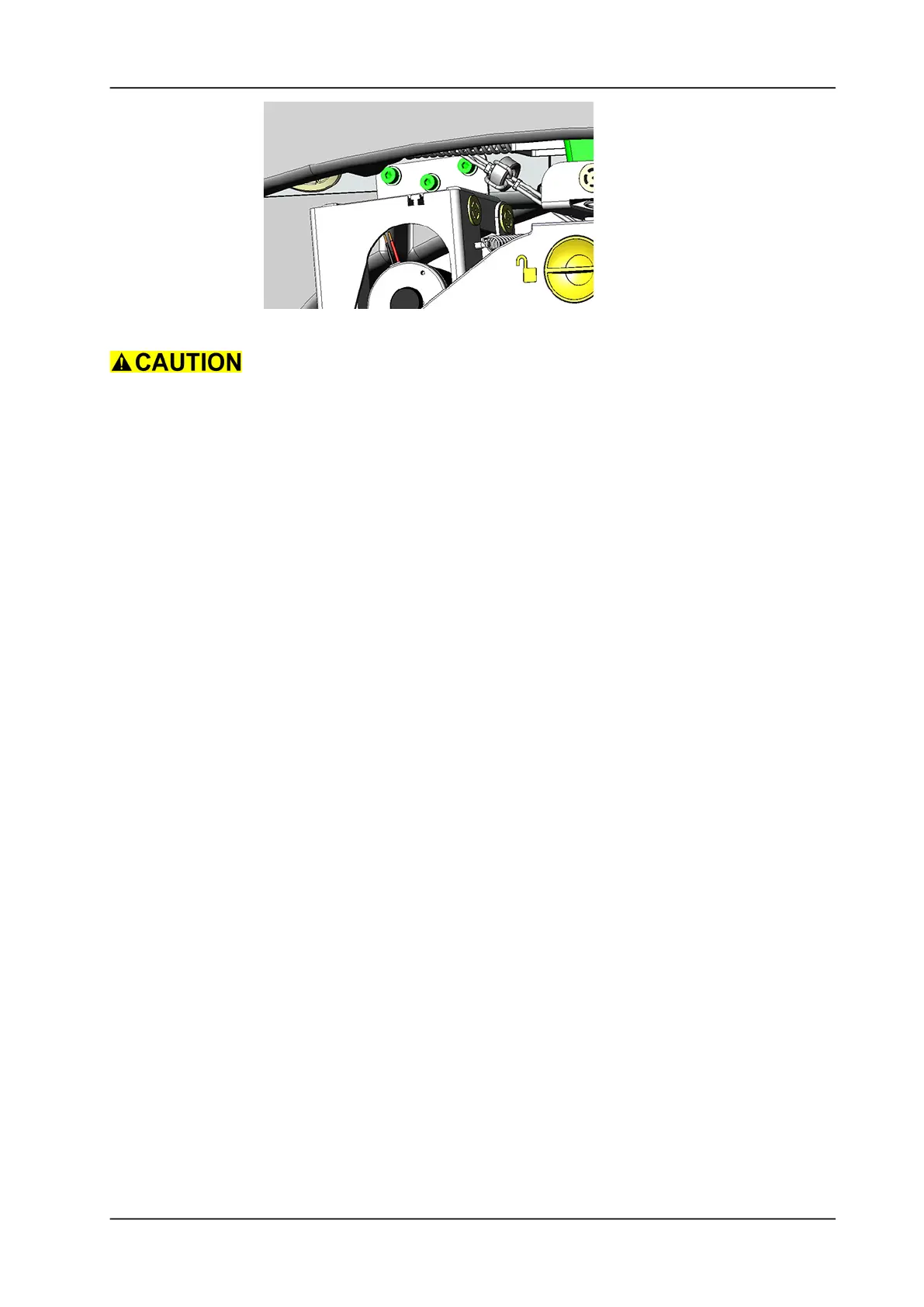

Picture 53: Tool lowering fixation
Be aware of the weight of the tool lowering unit as it can fall down and
close.
Only work on the brush lowering unit, when the emergency stop
button is permanently engaged.
There is a risk of cutting / squeezing fingers seriously if caught in the
closing scissors mechanism of the tool lowering unit. Do not reach
into the open tool lowering unit when loosening the screws or trying
to lower it down!
Missteps can lead to personal injury and damage to the machine.
Make sure that the metal rope compl (4134183) is free and does not
get caught when removing the tool lowering unit.
• According to what you need to exchange, remove the existing
parts from the tool lowering unit and place it on the new one.
