GTS Technical Manual
9. April 2021 Edition: V1.00/2021 6-29
Copyright © 2020, Diversey
06.22.18 hall sensors - throttle - 2100µicro_3500µicro_V2.00.fm
6.5 Hall sensor
6.5.5 Mounting of hall sensor throttle

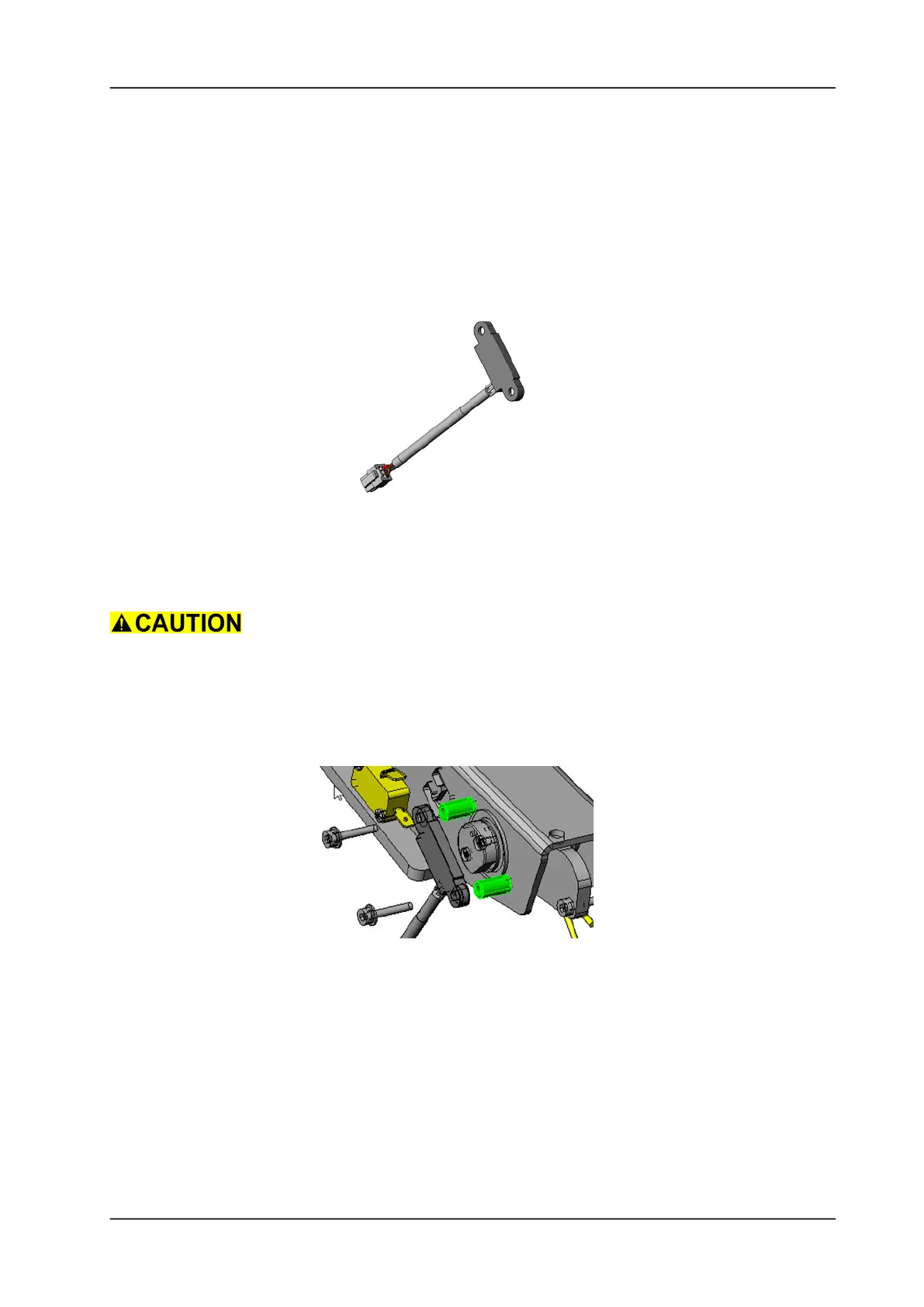

Picture 25: Hall sensor throttle unit
• Position the hall sensor throttle.
• Mount the 2 screws with the 2 washers.
Ensure that you mount the correct hall sensor for the throttle.
Remarks
Make sure that you position the 2 bushes (4131523) at the correct
position.
Picture 26: Mounting hall sensor throttle
• Thread in the cable for the hall sensor throttle.
• Connect the cable to the electronics.
• Complete assembling according to chapter MOUNTING OF
PEDAL SPRING (refer to “Mechanical” section).
• Complete assembling according to chapter MOUNTING OF
DRIVER SEAT COVER (refer to “Mechanical” section).
Remarks
For error codes, please refer to the chapter Error Codes or to the
Service Tool Manual.
