5.2 Tank
5.2.6 Mounting of tank

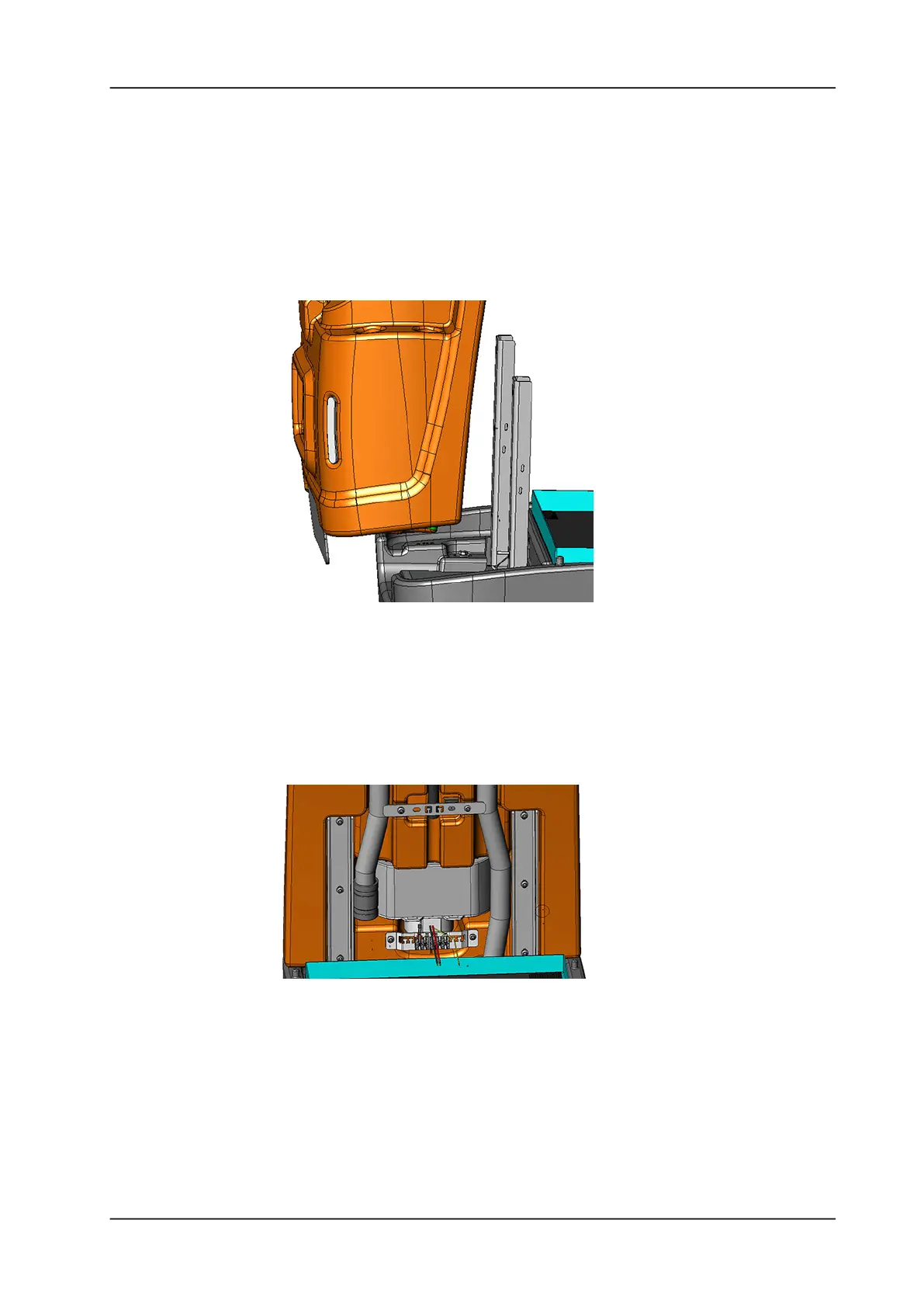

Picture 14: Mounting tank
• Position the tank on the lower part.
• Mount the 6 fixation screws of the tank at the 2 supports.
• Mount the vacuum motor assembly according to chapter
MOUNTING OF VAVCUUM MOTOR ASSEMBLY.
• Mount all plugs and connectors to the tank.
• Mount the seat cover according to chapter MOUNTING OF
DRIVER SEAT COVER.
Picture 15: Recovery tank fixation
• Mount the whole tank cover according to chapter MOUNTING OF
TANK COVER.
• Place all accessories and hoses onto the tank cover.
