GTS Technical Manual
9. April 2021 Edition: V1.00/2021 6-3
Copyright © 2020, Diversey
06.10.20 system architecture - 2100µicro_4000_5000_3500µicro_V2.00.fm
6.1.4 Emergency loop
The machine has a separate emergency loop, which contains following elements:
• Stop actuator.
• Charger (internal switch) OR battery connector switch
(4131559).
• Start up/Self holding.
The emergency loop controls the main relay (2100µicro: 4127063, 4000/5000:
4129311, 3500µicro: 4134244). Only when the complete emergency loop is closed, the
main relay is active and the power supply is ensured.

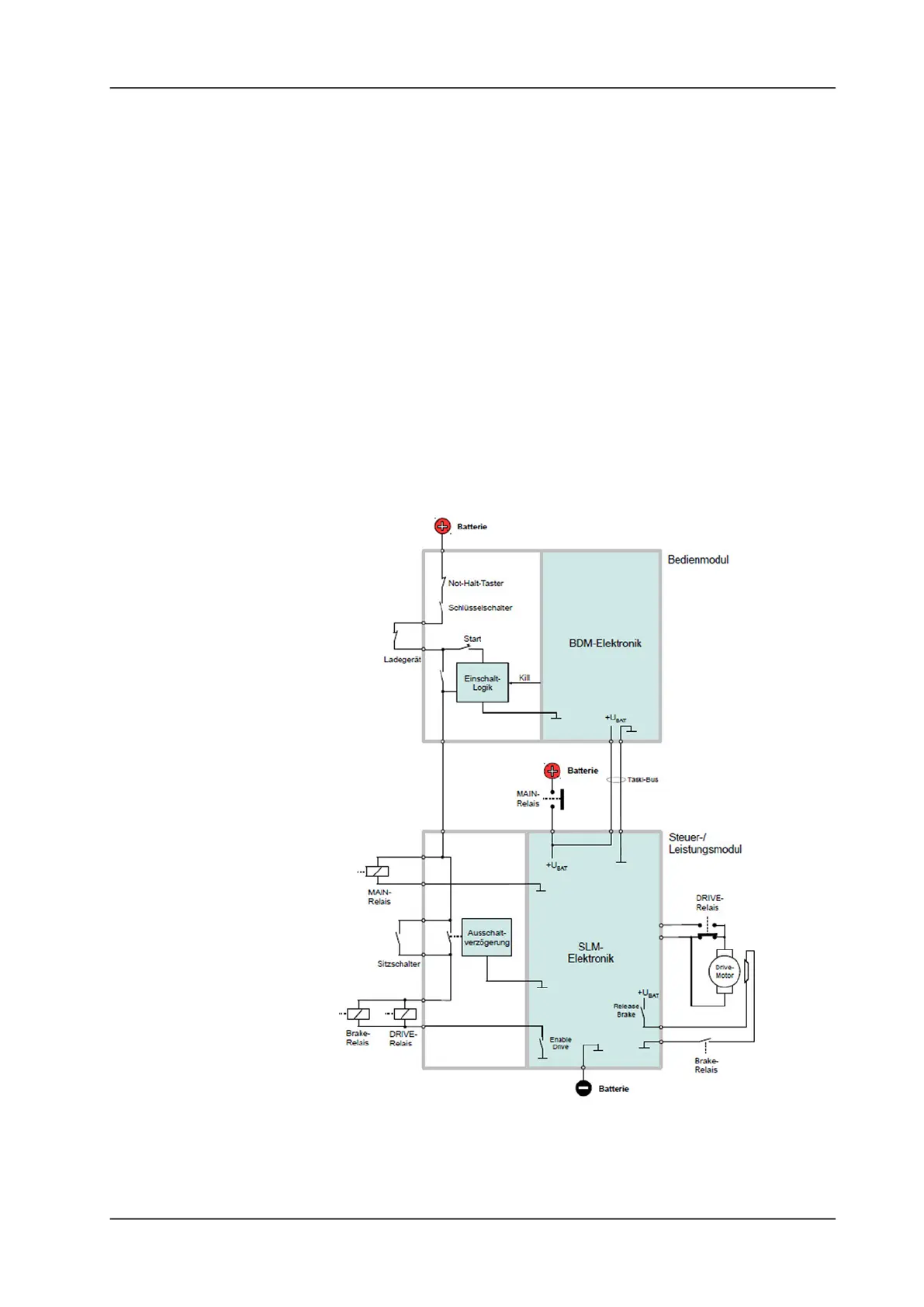

Picture 3: Start up/Self holding
