5.4 Steering unit
5.4.5 Removing of front wheel

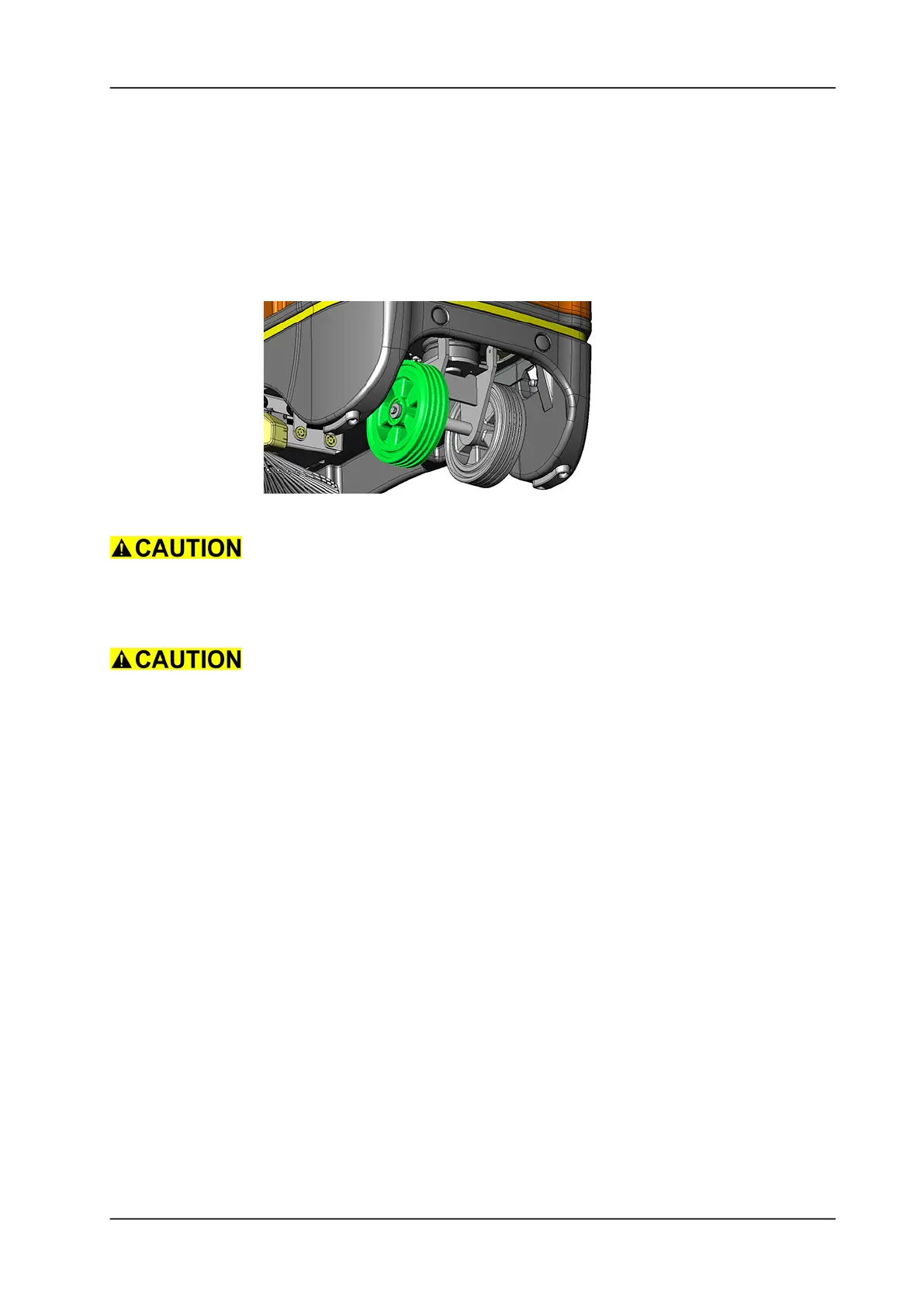

Picture 35: Front wheel
Position a piece of wood in front and behind of the traction wheel to
ensure that the machine does not move.
• Lift the front of the machine with a jack.
Make sure you position the jack on the chassis or the steering unit and
not on the bottom part (plastic).
• Remove the screw and the washer of the front wheel.
• Remove the front wheel by pulling it off the axle.
Remarks
The part number of the front wheel can vary as we have different
types. Wheel (4122500), brown wheel (4131705) and red wheel
(4131706).
