5.3 Driver seat
5.3.5 Removing of seat switch

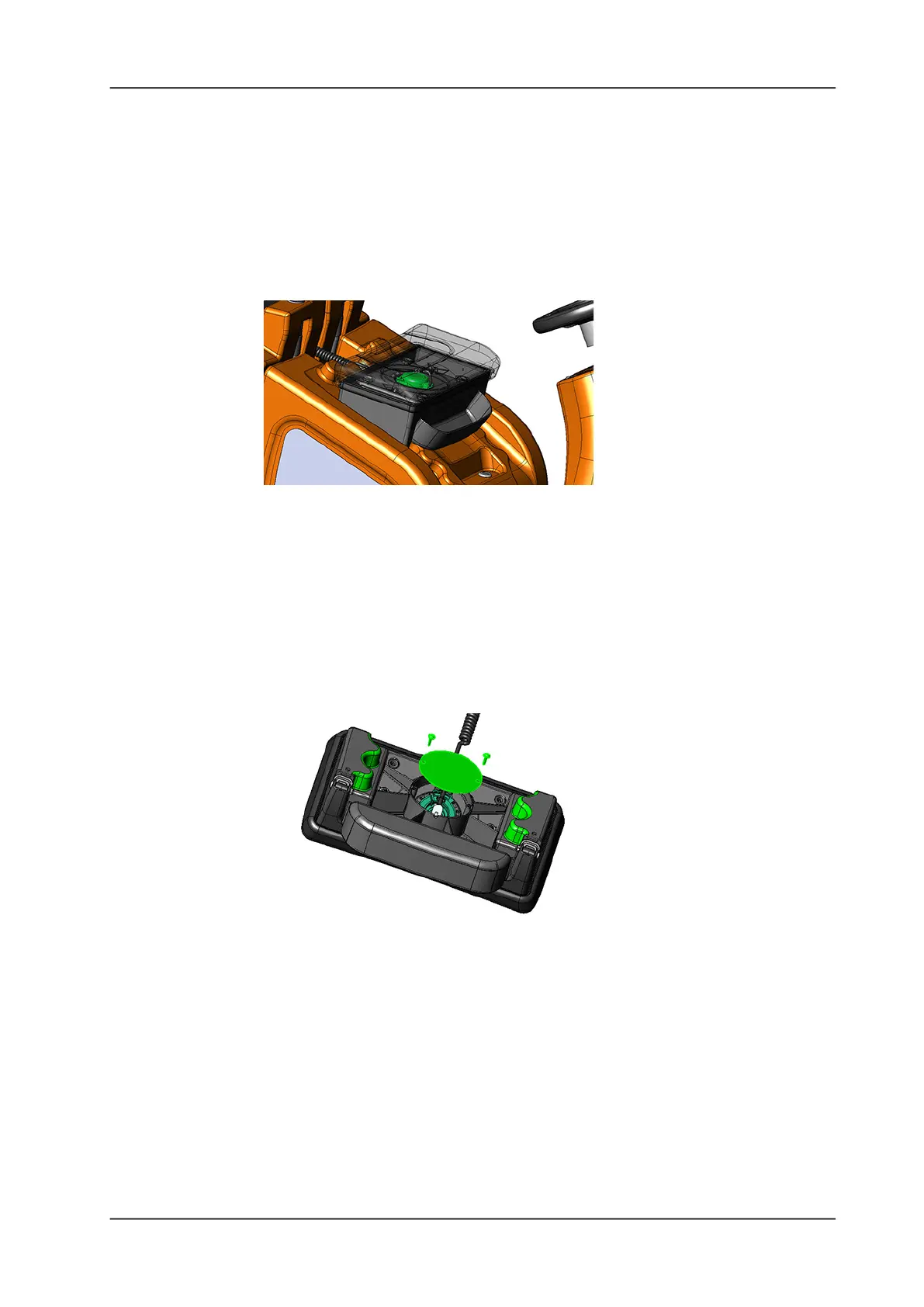

Picture 24: Seat switch
Remarks
The driver seat (4132166) is constructed that you can move it around.
We advise to place it on a stable position, for example onto the floor
beside the machine.
• Place the driver seat on a stable position.
• Remove the two screws (4122639) from the cover (4132165).
• Remove the cover.
Picture 25: Removing seat switch
• Turn the seat switch set (4121900) anti clockwise to release it.
• Disconnect the wires from the seat switch.
• Remove the seat switch.
