GTS Technical Manual
9. April 2021 Edition: V1.00/2021 5-40
Copyright © 2020, Diversey
05.30.27 tool lowering unit - linear drive - 3500µicro_V1.00.fm
5.6 Tool lowering unit
5.6.7 Removing of linear drive

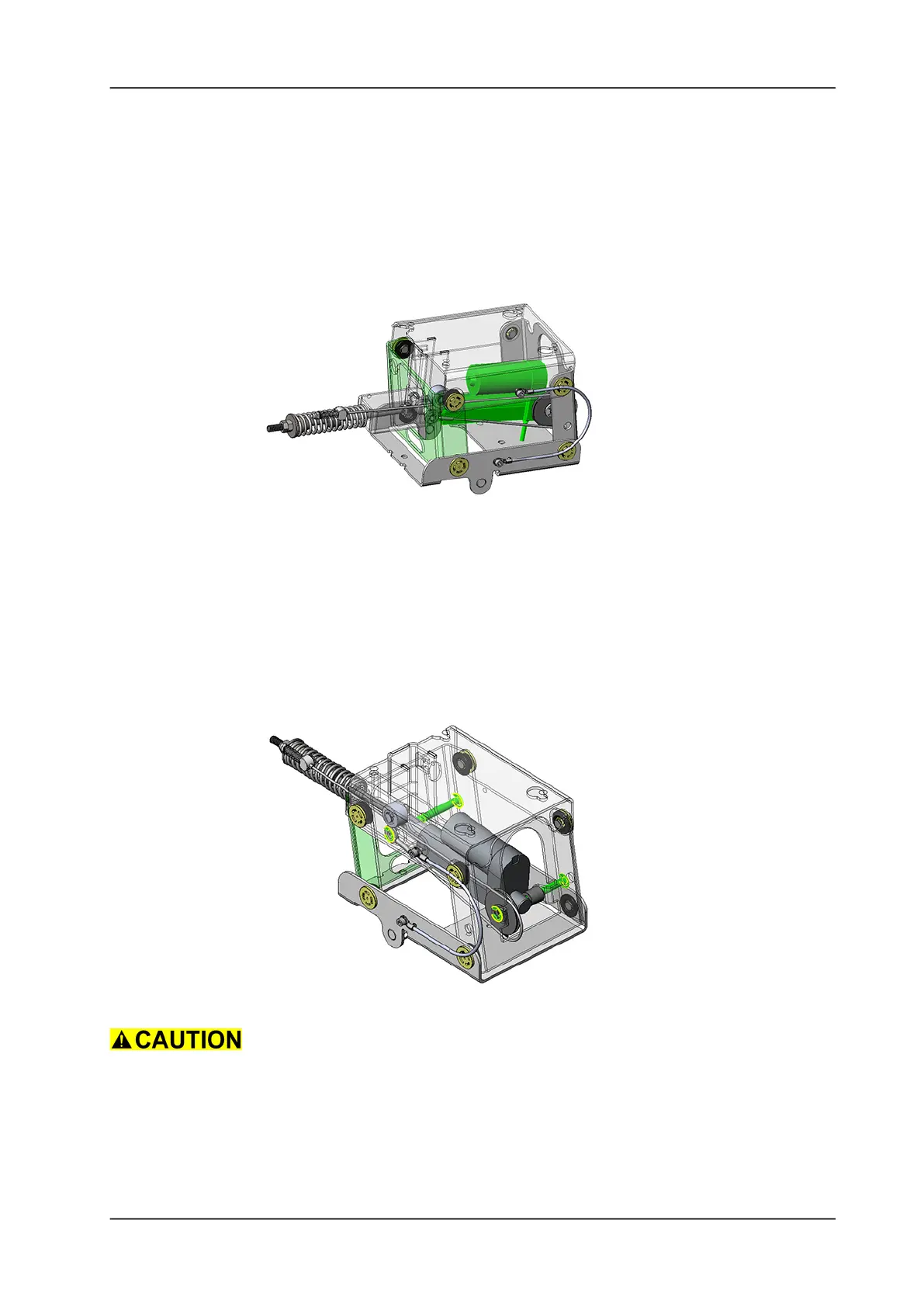

Picture 59: Linear drive
• Remove the brush unit according to chapter REMOVING OF
BRUSH DRIVE.
• Remove the seat cover according to chapter REMOVING OF SEAT
COVER.
• Remove the tool lowering unit according to chapter REMOVING
OF TOOL LOWERING UNIT.
• Remove the two retaining washers (4058370) from the two bolts
(4134068) and (4134067) of the linear drive (4127185).
• Remove the two bolts (4134068) and (4134067) to one side.
Picture 60: Removing linear drive
Be aware of the tension of the brush pressure spring.
• Remove the linear drive.
