GTS Technical Manual
9. April 2021 Edition: V1.00/2021 5-6
Copyright © 2020, Diversey
05.70.17 tank - vacuum motor - 3500µicro_V1.00.fm
5.2 Upper part, tank
5.2.2 Mounting of vacuum motor

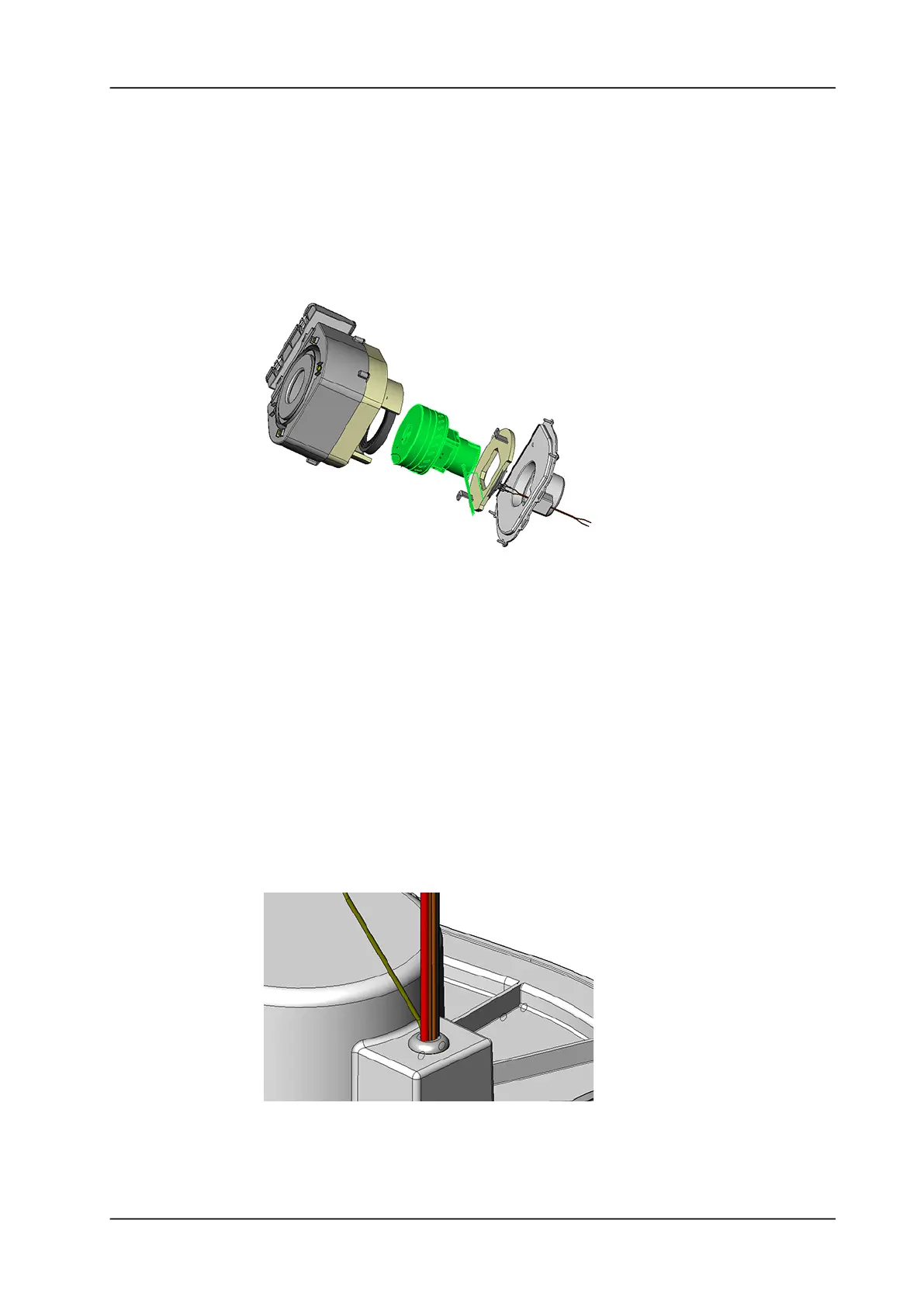

Picture 7: Vacuum motor mounting
• Position the protecting ring (4122676) of the vacuum motor,
into the suction housing (4134086).
• Build in the vacuum motor.
• Position the vacuum motor sealing ring.
Remarks
Ensure that the vacuum motor sealing is properly positioned before
assembling vacuum motor assembly.
• Assemble vacuum motor holder.
• Place the two noise absorbing mats.
• Carefully thread in the vacuum motor cables through the cover
grommet.
• Place the cover on to the housing an mount the screws.
Picture 8: Vacuum motor grommet
