6.4 Charger
6.4.2 Mounting of charger

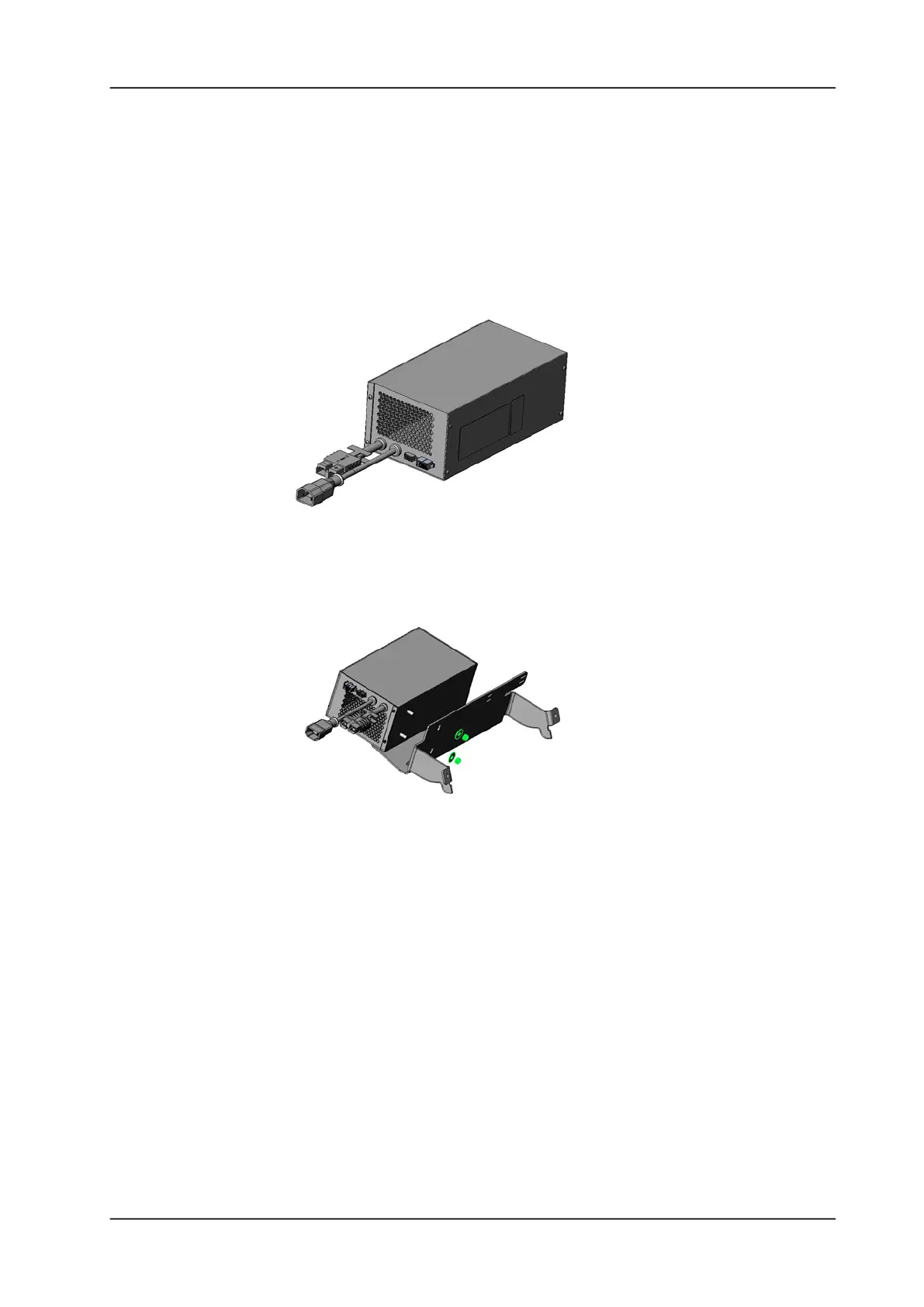

Picture 15: Charger unit
• Position the charger onto the charger holder.
• Position the 2 washers and self-locking nuts and tighten them.
Picture 16: Mounting charger
• Slide the charger holder with the charger onto the electrical
support.
• Mount the 2 screws for the charger holder.
• Connect the plug of the cable to the dashboard.
• Connect the plug of the cable to the electronics.
• Connect the plug to the main cord.
Remarks
Fixate the plugs with cable ties onto the charger support as they have
also the function of a tension release.
• Connect the battery connector.
• Complete assembling according to chapter MOUNTING OF
DRIVER SEAT COVER (refer to “Mechanical” section).
