5.7 Drive unit
5.7.5 Removing of brake

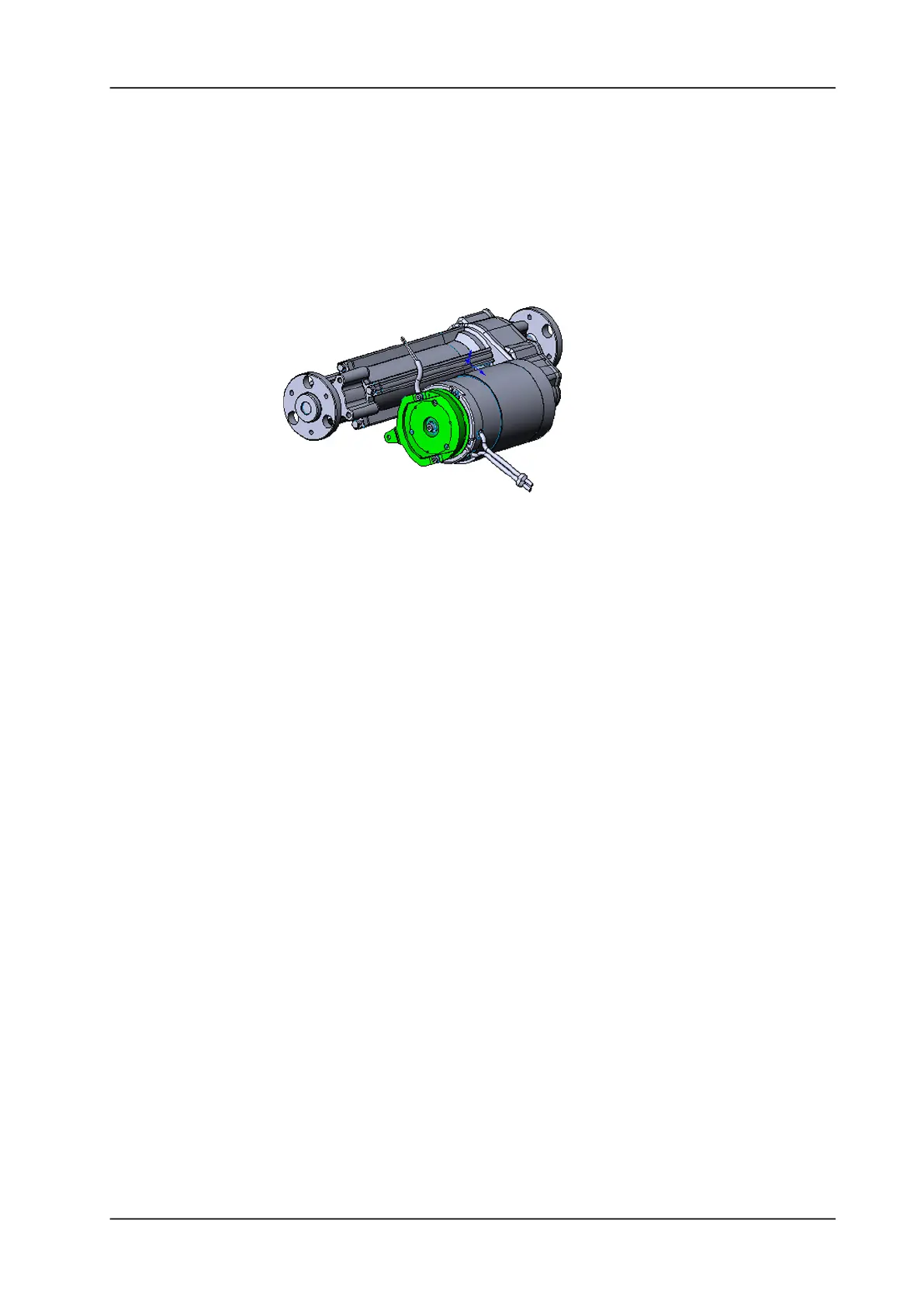

Picture 73: Brake
• Remove the drive wheel according to chapter REMOVING OF
DRIVE WHEEL.
• Remove the encoder according to chapter REMOVING OF
ENCODER.
• Disconnect the connector of the brake (4132164).
• Remove the 3 screws which fixate the brake to the traction unit
(4131237).
