GTS Technical Manual
9. April 2021 Edition: V1.00/2021 5-59
Copyright © 2020, Diversey
05.66.24 brush drive - brush drive compl - 3500µicro_V1.00.fm
Be aware of the weight of the brush drive when removing it from the
lowering unit, as it could fall onto the floor.

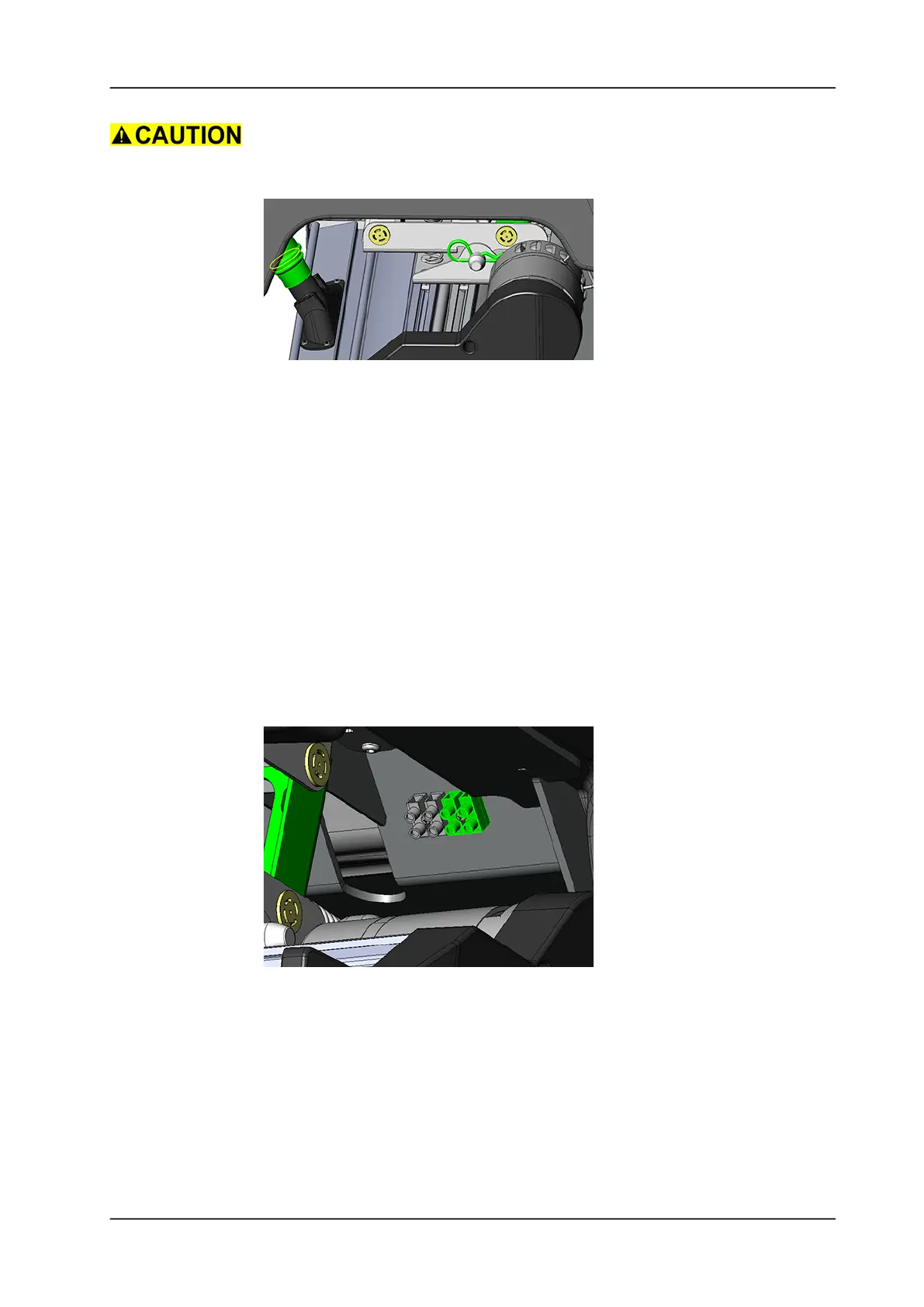

Picture 88: Removing hose and stop pin
• Remove the whole brush unit by pulling it off from the bolts of
the brush holding support (4134069).
Remarks
Pull the brush unit to the right hand side so the bracket (41334049)
comes off of the brush holding support (4134069).
• Disconnect the brush motor wires from the connection block
(4082740) mounted on the chassis (4131386).
Remarks
You need to move the released brush unit to the side to access the
connection block.
Picture 89: Removing brush drive wires
