Remarks
To reach the vacuum motor and its fixation you
need to remove the
two rear batteries.
• Disconnect the vacuum motor cables from the connection block
(4047400) and (4047410).
• Remove the two screws (4122639) from the connection support
plate (4134149) and lay it to the side.

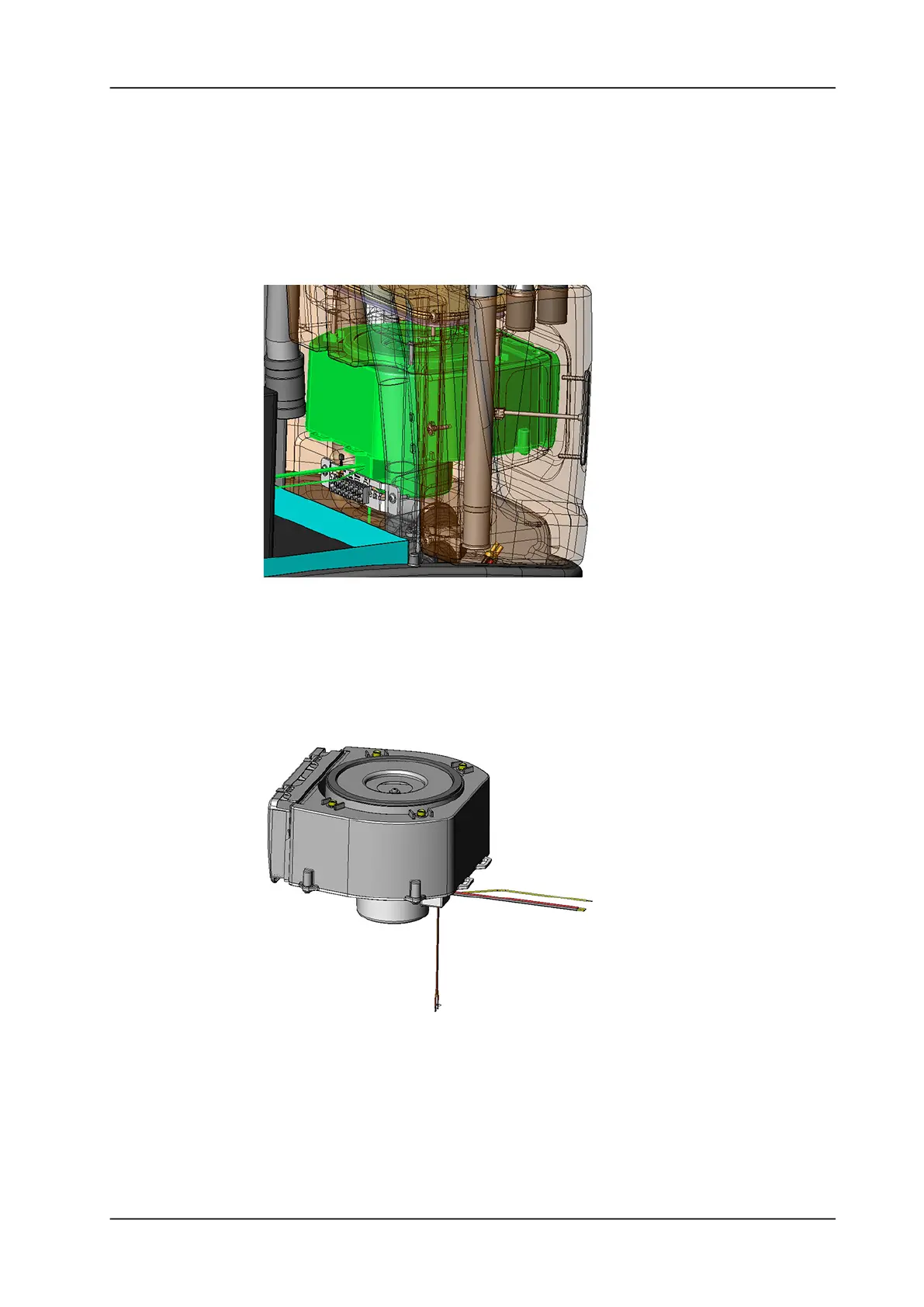

Picture 3: Vacuum motor assembly
Remarks
For a better access to the vacuum motor, cut the cable ties for the
fixation of the suction hose left and right.
• Remove the vacuum assembly by pulling it out from the tank.
Picture 4: Vacuum motor assembly set
