GTS Technical Manual
9. April 2021 Edition: V1.00/2021 5-55
Copyright © 2020, Diversey
05.42.21 lower part - front cover - 3500µicro_V1.00.fm

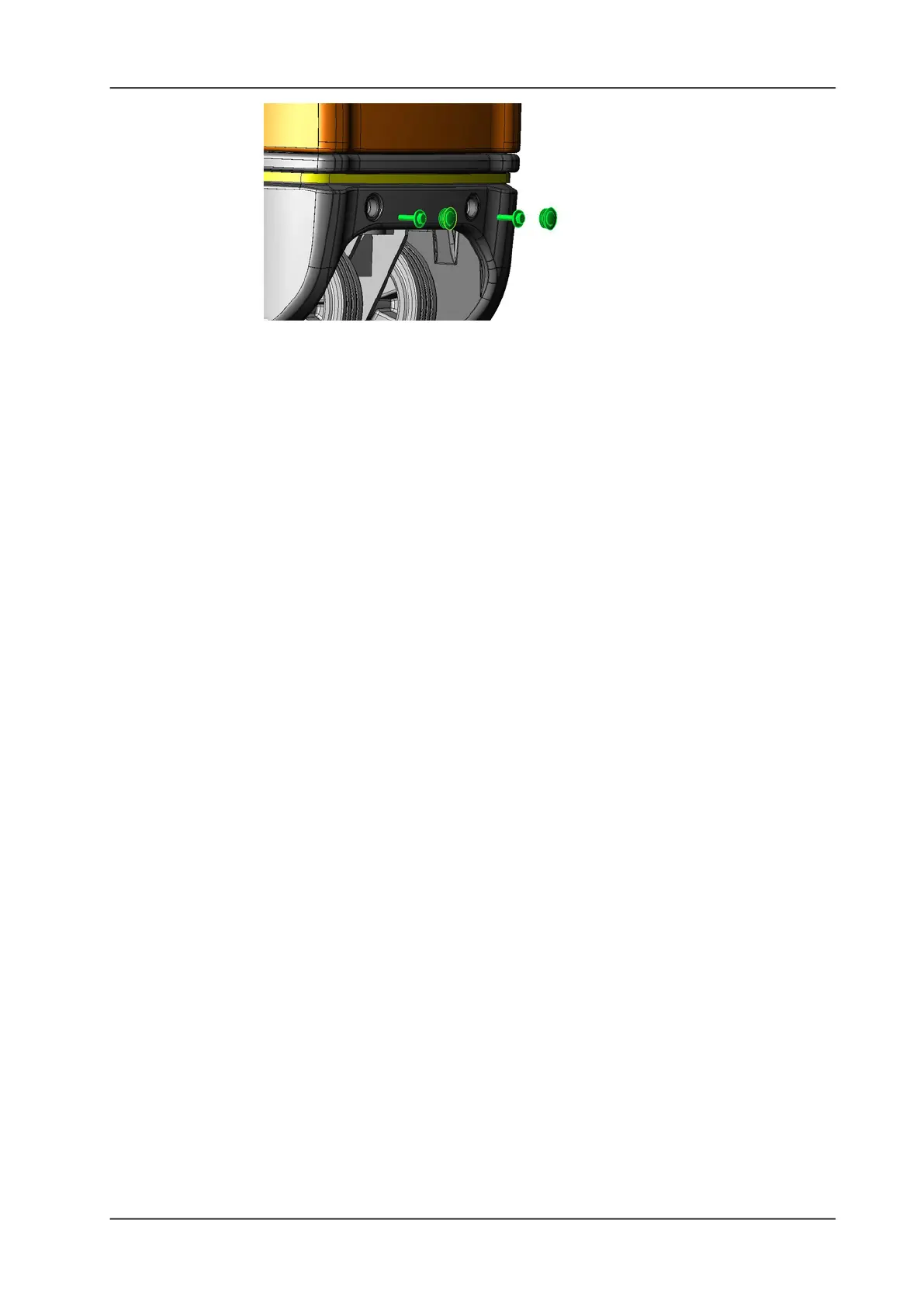

Picture 82: Removing front cover front screws
• Pull the front cover (4131665) to the front side until it is not
guided by the chassis (4131386) on the bottom.
• Enlarged the opening of the front cover (pull on both flanks) and
pull it to the front side out.
Remarks
It takes some force to get it out to the front. You can pull it side by
side out.
• Remove the front cover.
