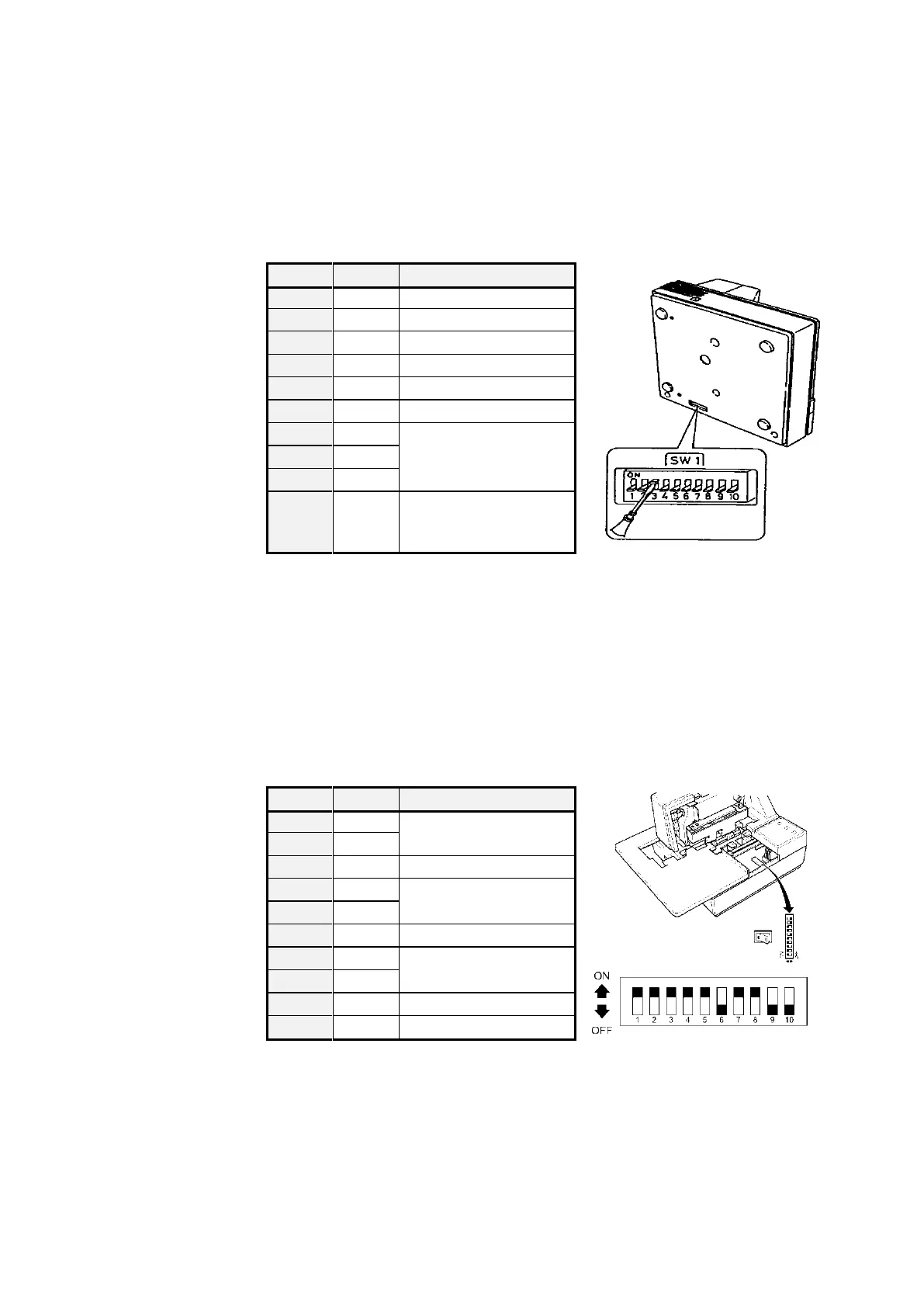

15.2 DIL Switch Settings for DR-290/DR295
 The following factory settings are to be checked on the printer in the
event of a fault:
15.3 DIL switch settings for DR-298-FDW
The switches that determine the operating mode of the DR-298 are
located in the interior of the unit (see manual).
 The following factory settings are to be checked on the printer in the
event of a fault:
* Any setting is valid
Switch
Position
Function
SW-1
ON
Ignore transmission errors
SW-2
OFF
512 Byte data buffer
SW-3
ON
Handshake XON/XOFF
SW-4
OFF
8 Bit
SW-5
OFF
No Parity
SW-6
ON
Even Parity
SW-7
OFF
9600 Baud
SW-8
OFF
SW-9
OFF
SW-10
ON
Transparent mode ON
Switch
Position
Function
SW-1
ON
9600 Baud
SW-2
ON
SW-3
ON
8 Bit
SW-4
ON
No Parity
SW-5
ON
SW-6
OFF
Handshake XON/XOFF
SW-7
ON
Printer mode
Star
SW-8
ON
SW-9
OFF*
Pin 6 Reset inactive
SW-10
OFF*
Pin 25 Reset inactive
