RUN NOW Excite +: Technical Service guide - rev. 6.2
Page 7.46

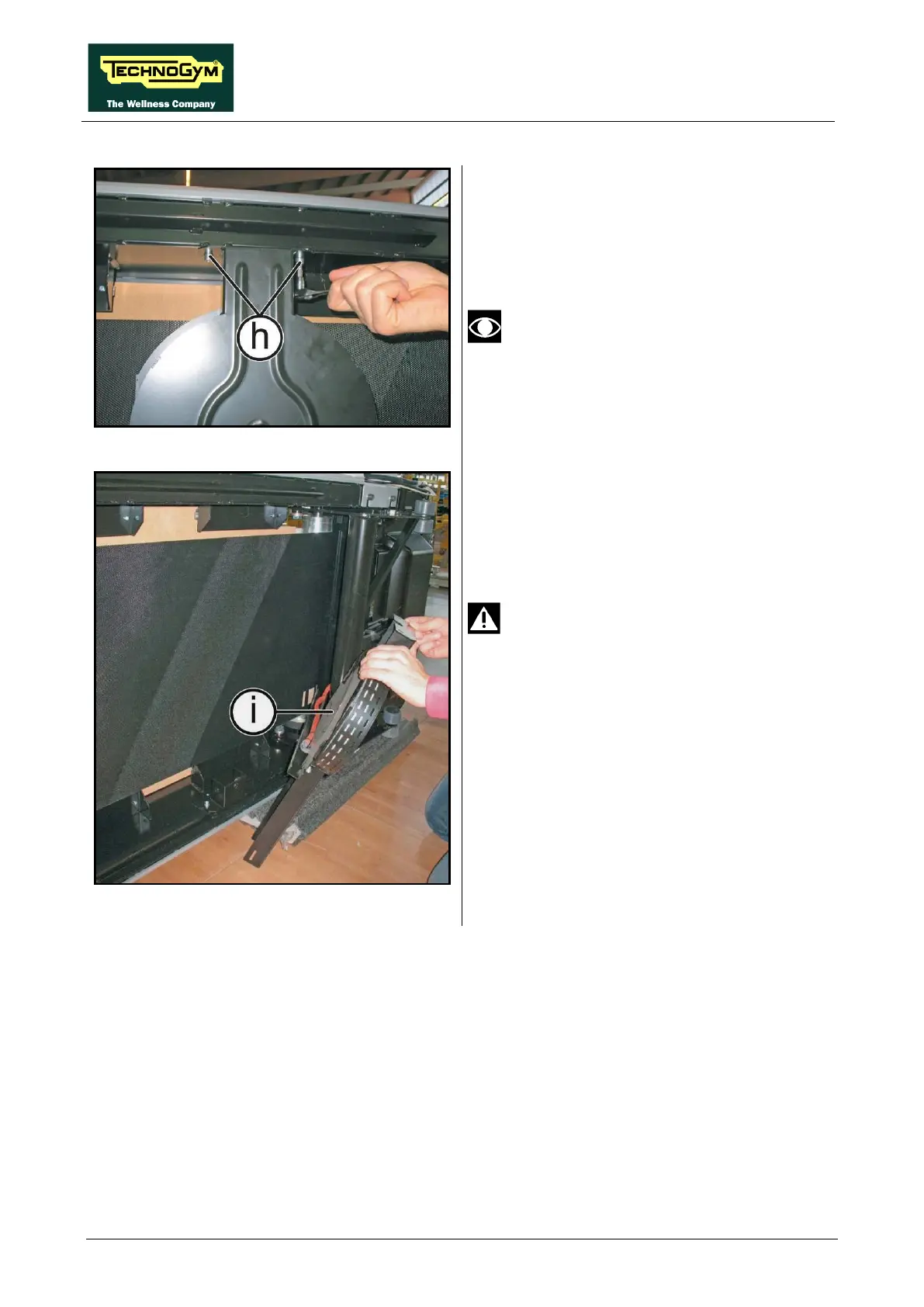

Figure 7.21-8
9. Back off the 2 screws (h)
hexagonal wrench.
For reasons of space, for the 2 (h) screws
is recommended to use a ratchet wrench.
Figure 7.21-9
10. Remove the autotransformer (i) with careful.
ATTENZIONE: Prestare particolare
attenzione durante la movimentazione
dell’autotrasformatore, poiché essendo
estremamente fragile, anche un piccolo
urto potrebbe danneggiarlo.
To reassemble the autotransformer, carry out the
above steps in reverse order; following the note
reported above:
Continued on following page…
