RUN NOW Excite +: Technical Service guide - rev. 6.2
Page 7.47

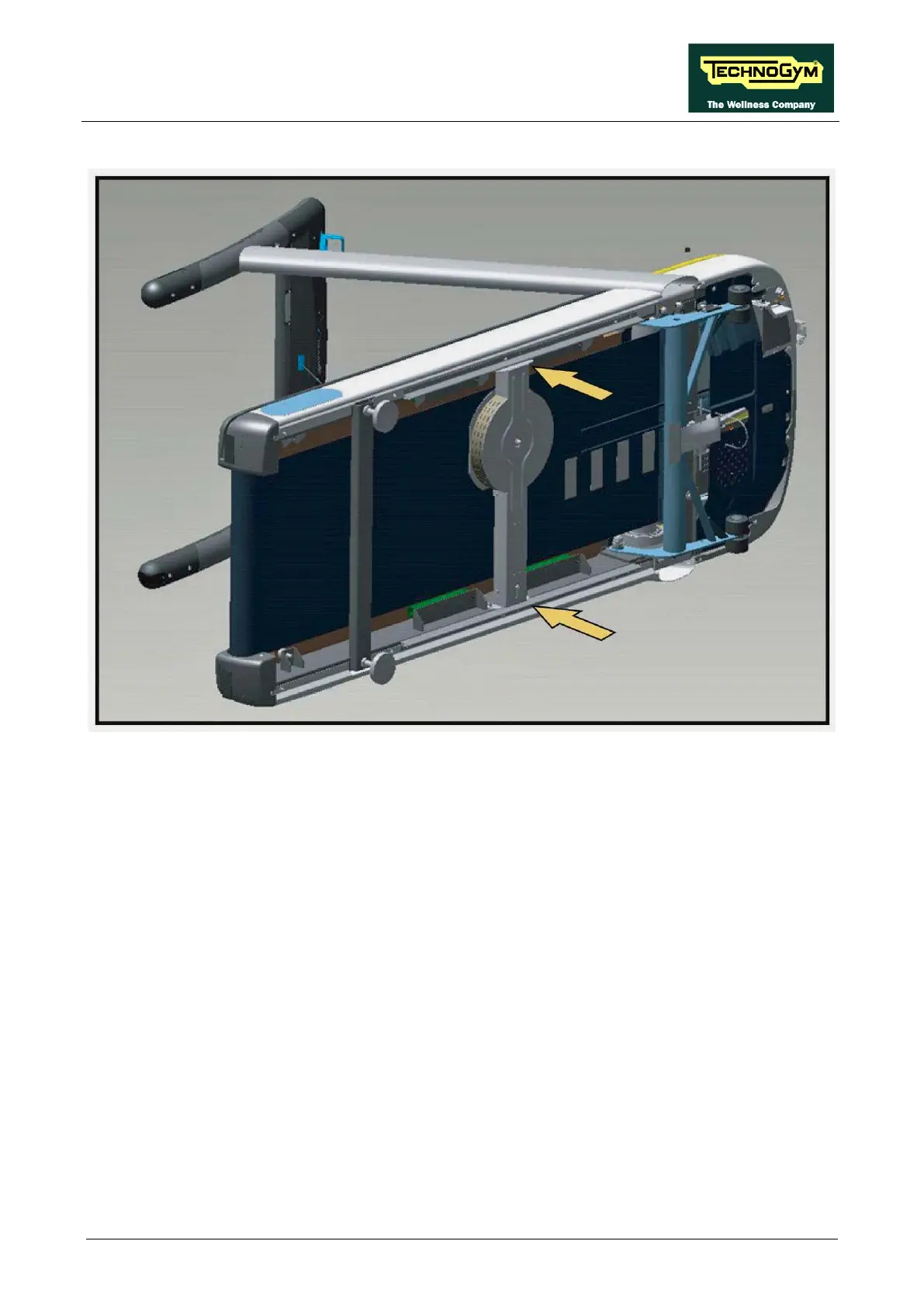

Figure 7.21-10
1. Fix the Autotransformer at the frame using the 4 fixing screws, without locking down.
2. Push the Autotr
ansformer completely forward in the direction of the yellow arrows, as shown in
the figure above.
3. At the end, lock down, the 4 screws using a 5mm hexagonal wrench.
Continued on following page…
