Textron Jacobsen AR-5 Technical/Repair Manual

4-60 4181383 First Edition
ELECTRICAL
4

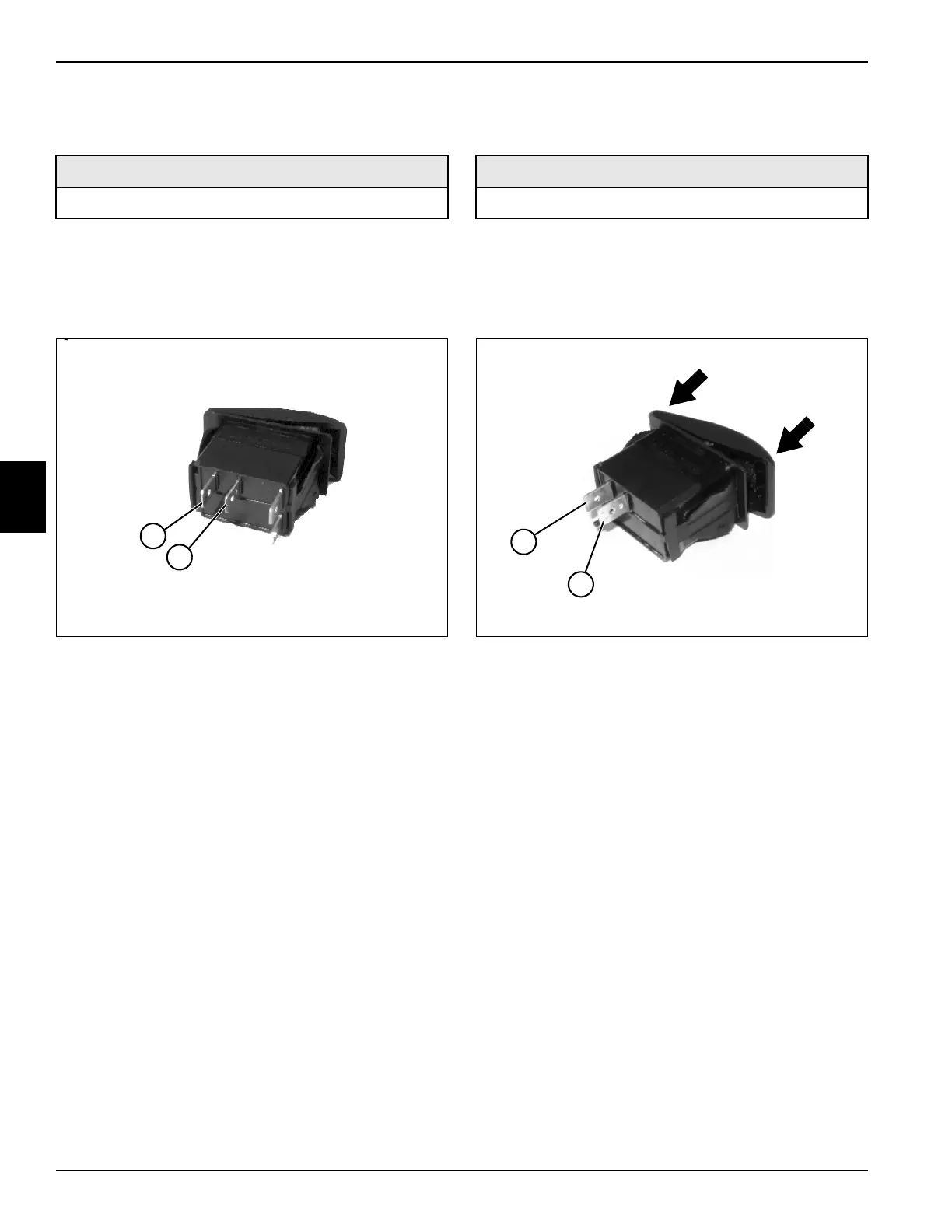

Traction Control Switch Test
See Figure 4-27.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Remove the traction control switch from the machine.
(See “Rocker Switches” on page 4-72.)
Figure 4-27
3. Connect test leads to the switch terminals (1 and 2).
4. Check for continuity.
Is continuity indicated?
YES The switch is faulty; replace the switch.
NO Proceed to step 5.
5. With the test leads still connected, press the traction
control switch.
Is continuity indicated?
YES The switch is good.
NO The switch is faulty; replace the switch.
Light Switch Test
See Figure 4-28.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Remove the work light switch from the control panel.
(See “Rocker Switches” on page 4-72.)
Figure 4-28
3. Place the switch in the OFF position.
4. Connect test leads to the switch terminals (1 and 2).
5. Check for continuity.
Is continuity indicated?
YES The switch is faulty; replace the switch.
NO Proceed to step 6.
6. Place the switch in the ON position.
Is continuity indicated?
YES The switch is good.
NO The switch is faulty; replace the switch.
Required Tools or Equipment
Digital Multimeter, Ohmmeter, or Continuity Tester
TN1544
1
2
Required Tools or Equipment
Digital Multimeter, Ohmmeter, or Continuity Tester
TN1560
1
2
OFF
ON
