Textron Jacobsen AR-5 Technical/Repair Manual

ELECTRICAL
4181383 First Edition 4-61
4
Horn Switch

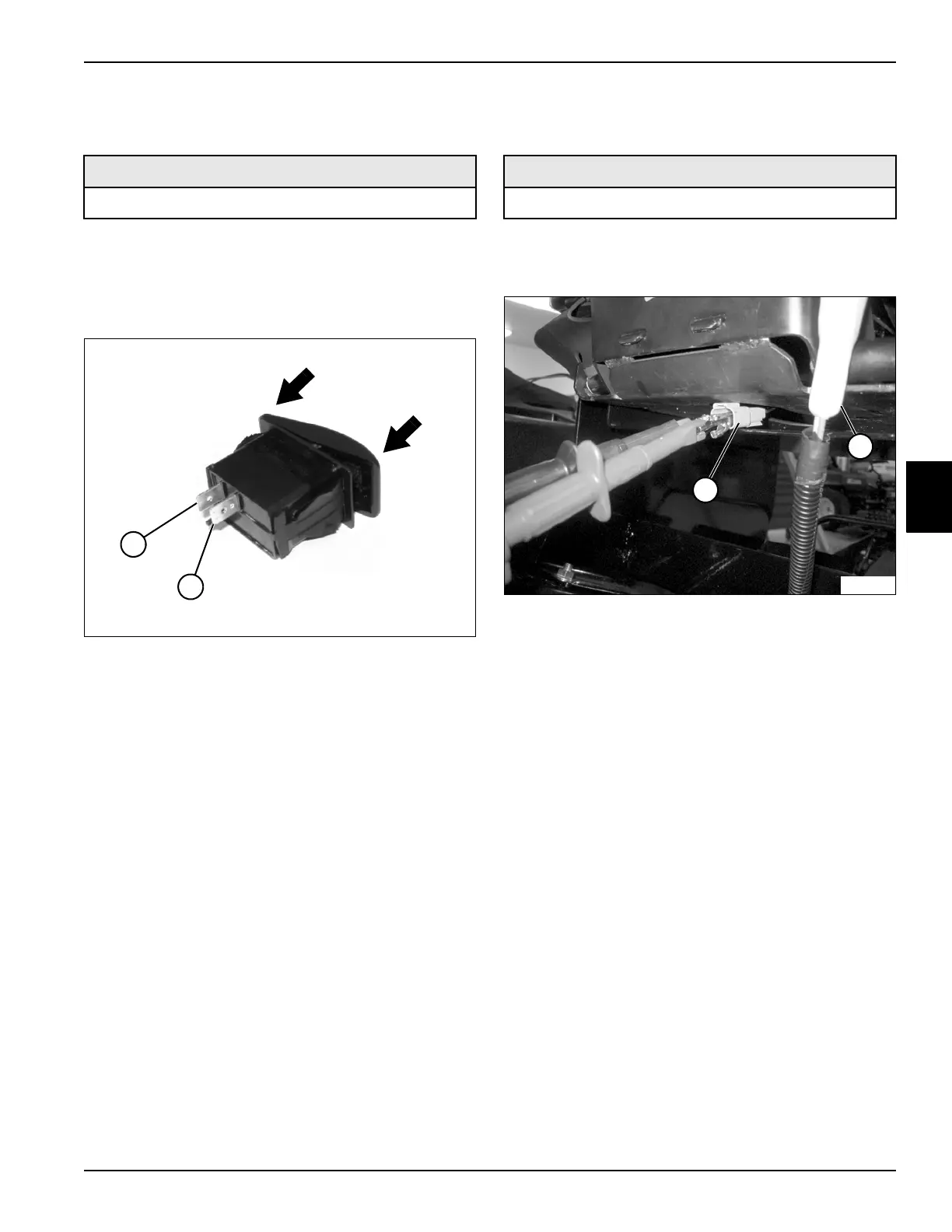

See Figure 4-29.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Remove the horn switch from the control panel. (See
“Rocker Switches” on page 4-72.)
Figure 4-29
3. The switch is normally in the OFF position.
4. Connect test leads to the switch terminals (1 and 2).
5. Check for continuity.
Is continuity indicated?
YES The switch is faulty; replace the switch.
NO Proceed to step 6.
6. Depress and hold the switch in the ON position.
Is continuity indicated?
YES The switch is good.
NO The switch is faulty; replace the switch.
Seat Switch Test
See Figure 4-30.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
Figure 4-30
2. Unplug the seat switch (1) from the harness (2).
3. Connect test leads to the switch terminals.
4. Check for continuity.
Is continuity indicated?
YES The switch is faulty; replace the switch.
NO Proceed to step 5.
5. Depress the seat switch or have a helper sit in the
seat.
Is continuity indicated?
YES The switch is good.
NO The switch is faulty; replace the switch.
Required Tools or Equipment
Digital Multimeter, Ohmmeter, or Continuity Tester
OFF
ON
1
2
TN1560
Required Tools or Equipment
Digital Multimeter, Ohmmeter, or Continuity Tester
1
2
TN1553
