ELECTRICAL
4
Instrumentation Circuit Schematic
See Figures 4-18 through 4-19.

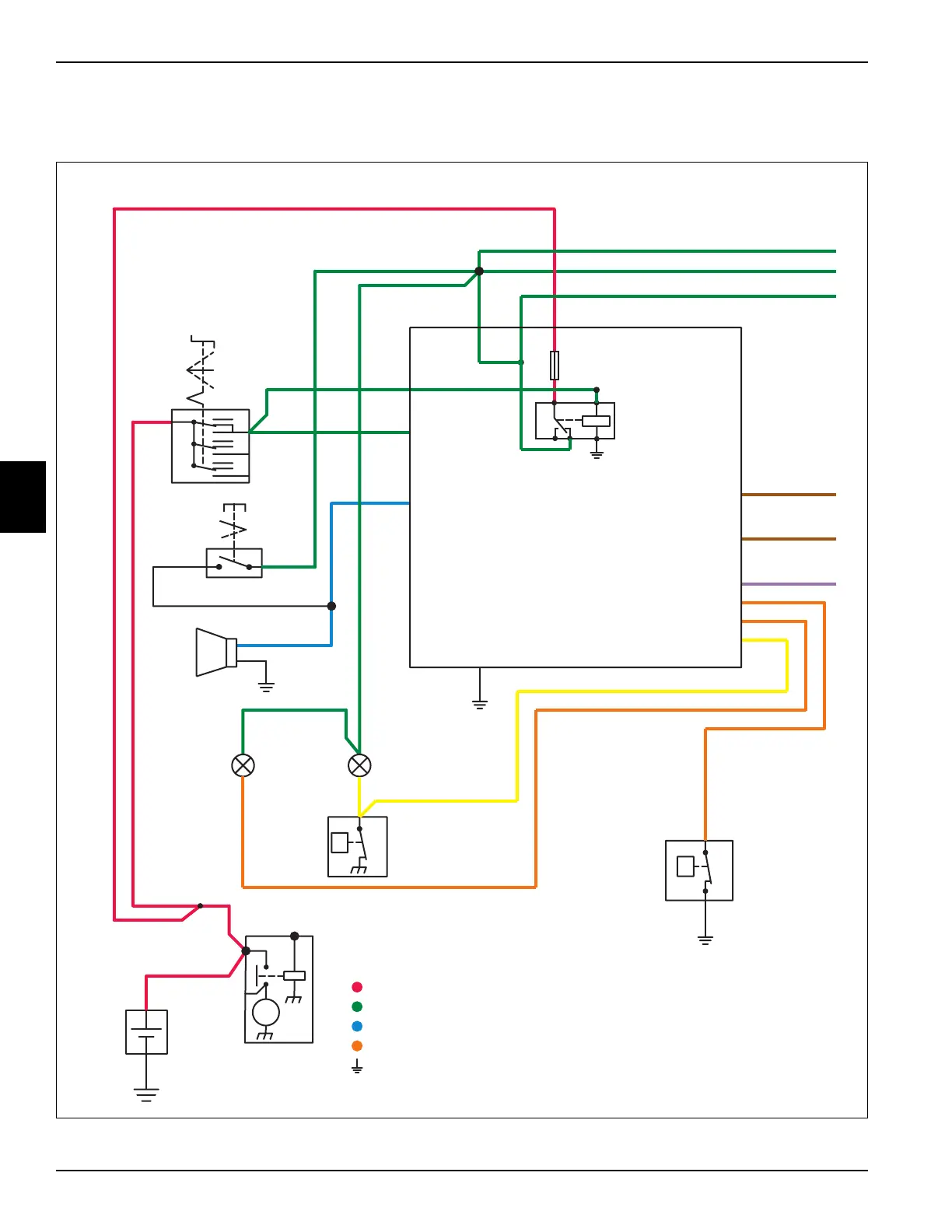

Figure 4-18
Red
Org/Yel J3-2 Switch Power (+)
Org/Yel
Red
Red
Red
Blk
Red
M1
Starter
Motor
M
S1
Key
Switch
G1
Battery
Red
Red
Red
+
-
8787A 85
8630
Blk
Ground
J3-8
F2
20A
Fuse
J3-5 J3-6J3-3
J4-2 Select 2 Input
A1
Control
Module
Off
Run
Start
A
B
C
D
Hydraulic Filter Pressure
Switched Power Circuit
Unswitched Power Circuit
Horn Circuit
Ground Circuit
Org/
Wht
Org/
Pnk
Org/
Wht
Splice 90
J3-10 Horn Output (+)
Pnk/Blk
Pnk/Blk
Pnk/Blk
Blk
H4
Horn
Org/WhtPnk/Blk
On
Off
S2
Horn
Switch
H9
Hydraulic
Filter
Pressure
Light
Org/
Wht
Org/
Wht
Pur/
Grn
P
Org/
Wht
Blu
Blu
B1
Engine
Oil
Pressure
Switch
H5
Engine
Oil
Pressure
Light
Pur/Grn
Org/Wht
Org/ Pnk
Blk
25 PSI
Blu/
Ye l
B3
Hydraulic
Filter
Pressure
Switch
P
Pur/Grn
Hydraulic Filter Pressure Light Output (-) J2-8
Engine Oil Pressure Switch Input J2-1
Blu
Hydraulic Filter Pressure Switch Input J2-2
Blu/Yel
Grn
Engine Temperature Sensor Input J2-12
Gry/Wht
Hyd Oil Level Sw Input J1-1
Hyd Oil Level Light Output (-) J2-9
Pur/Yel
TN1632
