Textron Jacobsen AR-5 Technical/Repair Manual

5-32 4181383 First Edition
HYDROSTATIC POWER TRAIN
5
4WD Valve
Removal and Installation

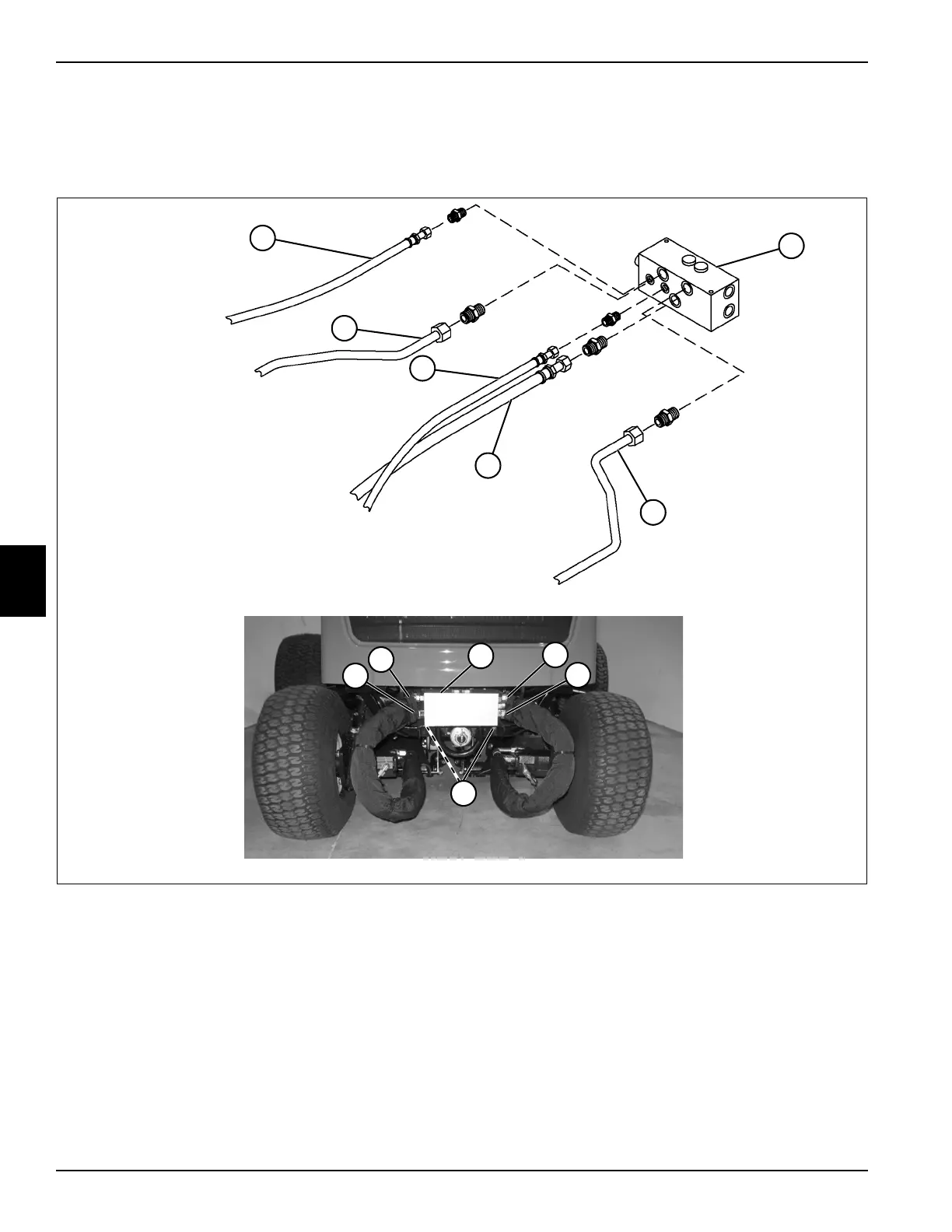

See Figure 5-31.
Figure 5-31
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Drain hydraulic tank.
3. Label all hydraulic hoses to ensure correct
installation.
4. Disconnect hoses (1—5).
5. Disconnect hoses (7—10).
6. Remove mounting screws, flat washers, and lock
washers (11).
7. Remove 4WD valve (6).
TN1511, TN1484
1
4
5
6
3
7
8
9
10
11
2
6
