3-6 4181383 First Edition
ENGINE
3
Repair
Fan Belt
Removal and Installation
See Figures 3-6 and 3-7.
NOTE
Inspect and adjust the new engine belt after the first 50
hours of operation. Check and adjust annually thereafter.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Stop the engine and remove the ignition key.
3. Raise the hood.
4. Disconnect the battery negative (–) cable at the
battery.

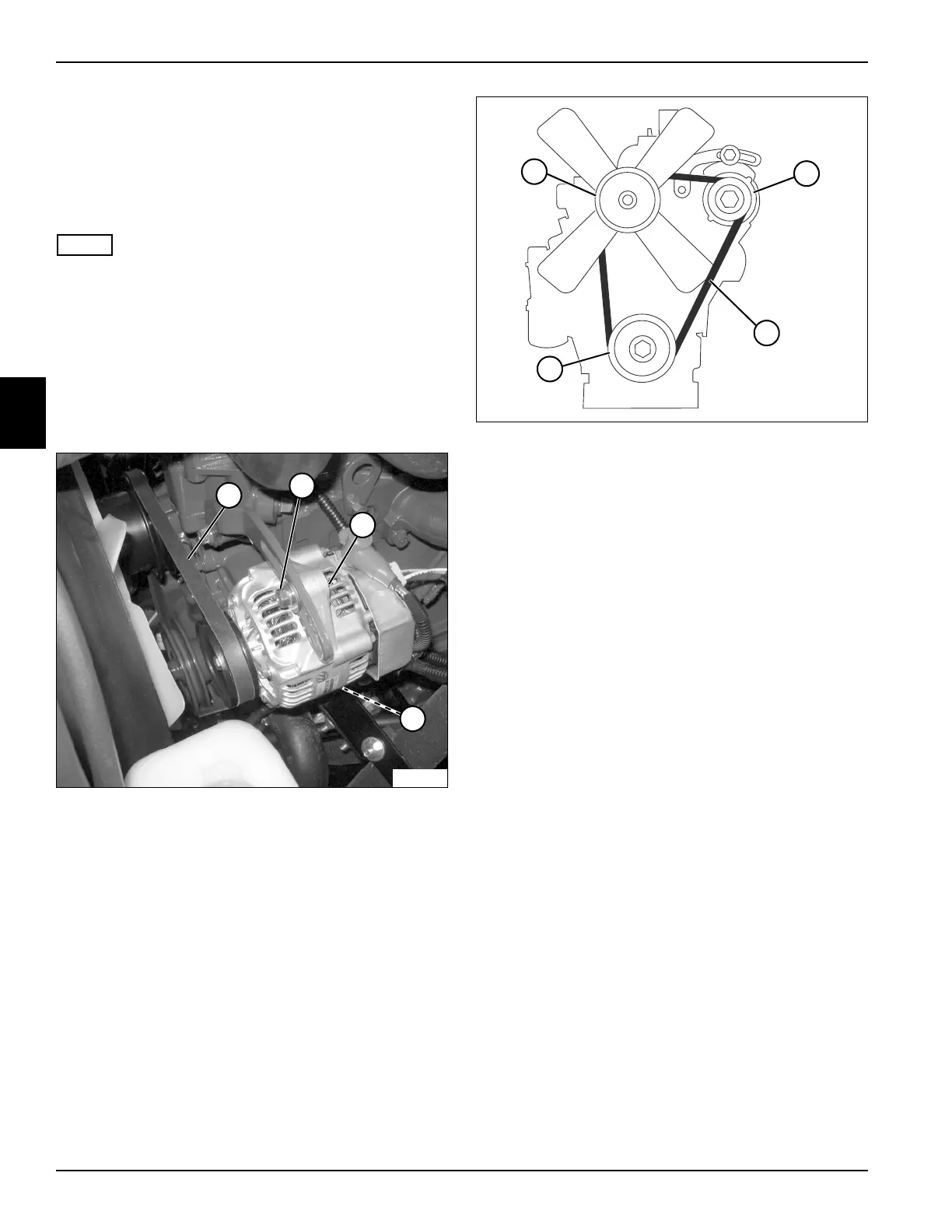

Figure 3-6
5. Loosen screws (2 and 4) and push the alternator (3)
toward the engine to loosen the belt (1).
Figure 3-7
6. Remove the fan belt (1) from the alternator (3),
coolant pump (6), and crankshaft pulley (5).
Installation Note
Install the fan drive belt by reversing the order of removal.
7. Adjust the belt tension by loosening the alternator
mounting screws (2 and 4) and pulling the alternator
(3) against the belt (1) until the proper tension is
achieved.
8. Measure the belt tension at the midpoint between
pulleys. Adjust the alternator belt to 0.28 to 0.35 in. (7
to 9 mm) with a deflection of 22 lbs.
See the engine manufacturer’s manual for further
information.
TN1431
2
3
1
4
1
TN1113
6
5
3
