Textron Jacobsen AR-5 Technical/Repair Manual

4-70 4181383 First Edition
ELECTRICAL
4

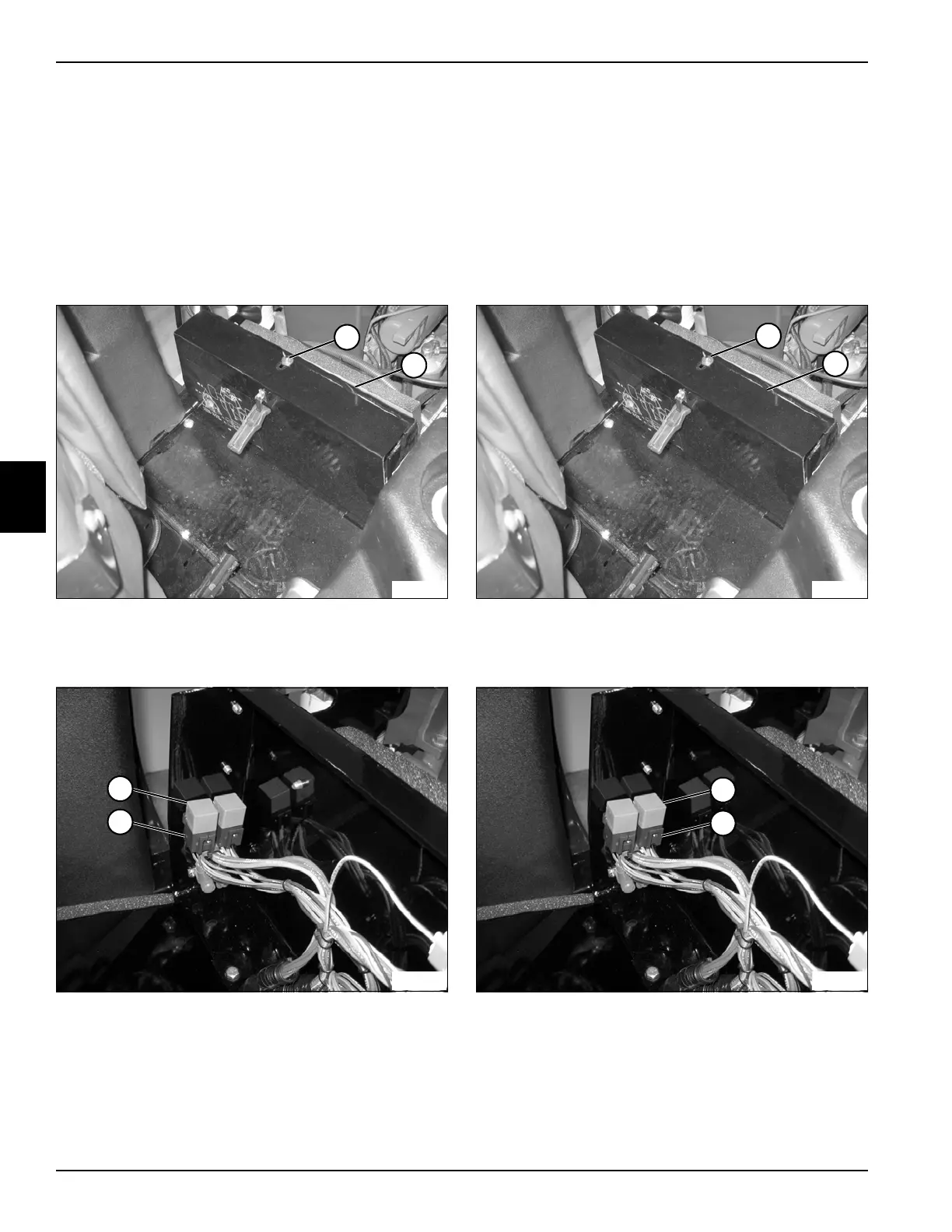

Start Relay
Removal and Installation
See Figures 4-52 and 4-53.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Raise the hood.
3. Disconnect the negative (–) battery cable at the
battery.
Figure 4-52
4. Move seat forward, loosen wing nut (1), and open
control module cover (2).
Figure 4-53
5. Pull the relay (3) straight up and out of the relay base
(4).
Installation Note
Install the start relay by reversing the order of removal.
Glow Plug Relay
Removal and Installation
See Figures 4-54 and 4-55.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Raise the hood.
3. Disconnect the negative (–) battery cable at the
battery.
Figure 4-54
Move seat forward, loosen wing nut (1), and open control
module cover (2).
Figure 4-55
4. Pull the relay (3) straight up and out of the relay base
(4).
Installation Note
Install the glow plug relay by reversing the order of
removal.
TN1475
1
2
TN1458
3
4
TN1475
1
2
TN1458
3
4
