Textron Jacobsen AR-5 Technical/Repair Manual

4-62 4181383 First Edition
ELECTRICAL
4

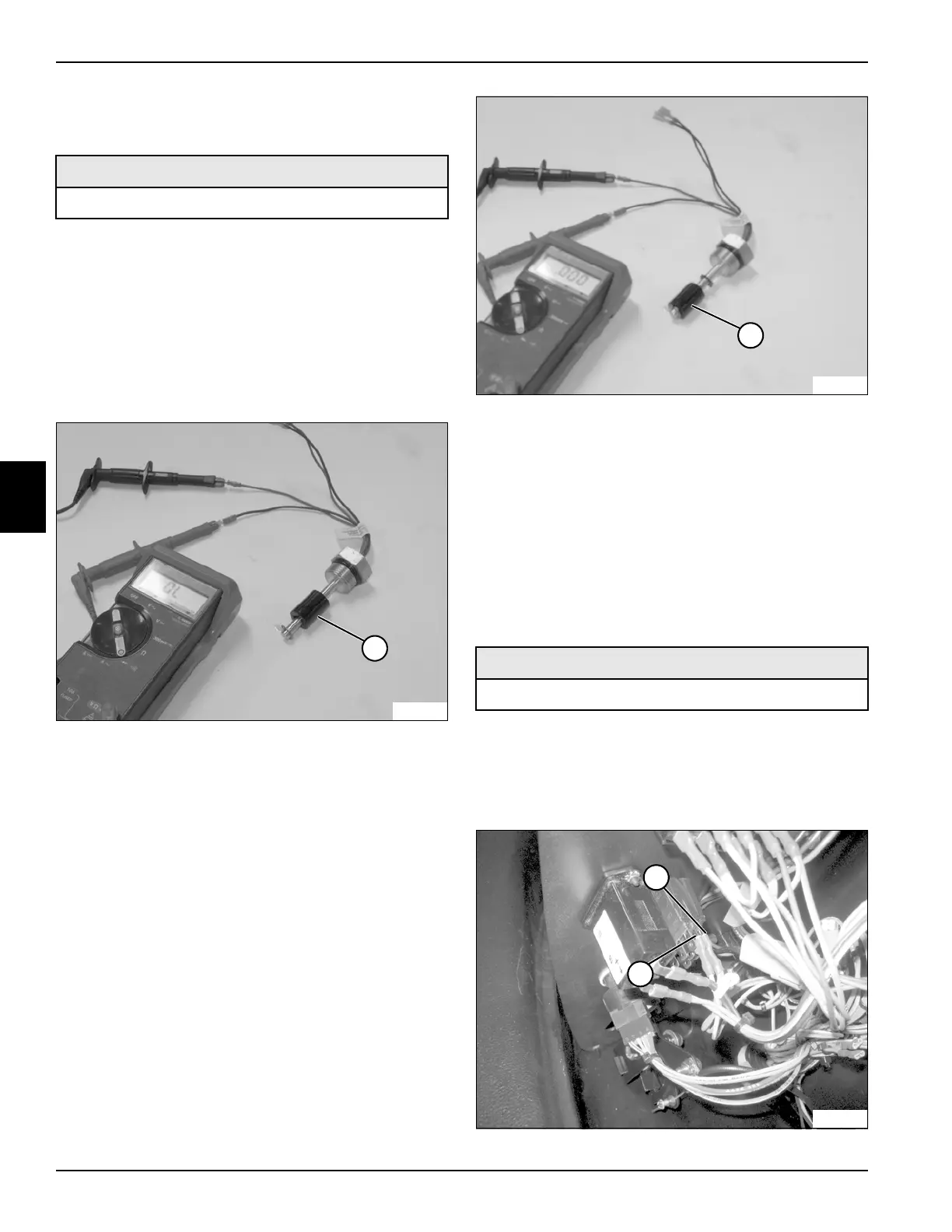

Hydraulic Oil Level Switch Test
See Figures 4-31 and 4-32.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Check to make sure hydraulic oil is at the correct
level.
3. Remove the cover from the top of the hydraulic oil
tank.
4. Remove the hydraulic oil level switch from the
hydraulic oil tank.
Figure 4-31
5. Connect test leads to the red and black switch
terminals.
6. Push the float (1) to the up position.
7. Check for continuity.
Is continuity indicated?
YES The hydraulic oil level switch is faulty;
replace the switch.
NO Proceed to step 8.
Figure 4-32
8. Push the float (1) to the down position.
9. Check for continuity.
Is continuity indicated?
YES The hydraulic oil level switch is good.
NO The hydraulic oil level switch is faulty;
replace the switch.
Mow Switch
See Figures 4-33 and 4-34.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Remove the instrument panel. (See “Instrument
Panel” on page 4-71.)
Figure 4-33
Required Tools or Equipment
Digital Multimeter, Ohmmeter, or Continuity Tester
TN1597
1
Required Tools or Equipment
Digital Multimeter or Ohmmeter
1
TN1598
1
2
TN1564
