ELECTRICAL
4181383 First Edition 4-67
4
NOTICE
6. Remove the battery (11).
NOTE
Perform steps 8 through 13 if the battery tray is to be
removed.

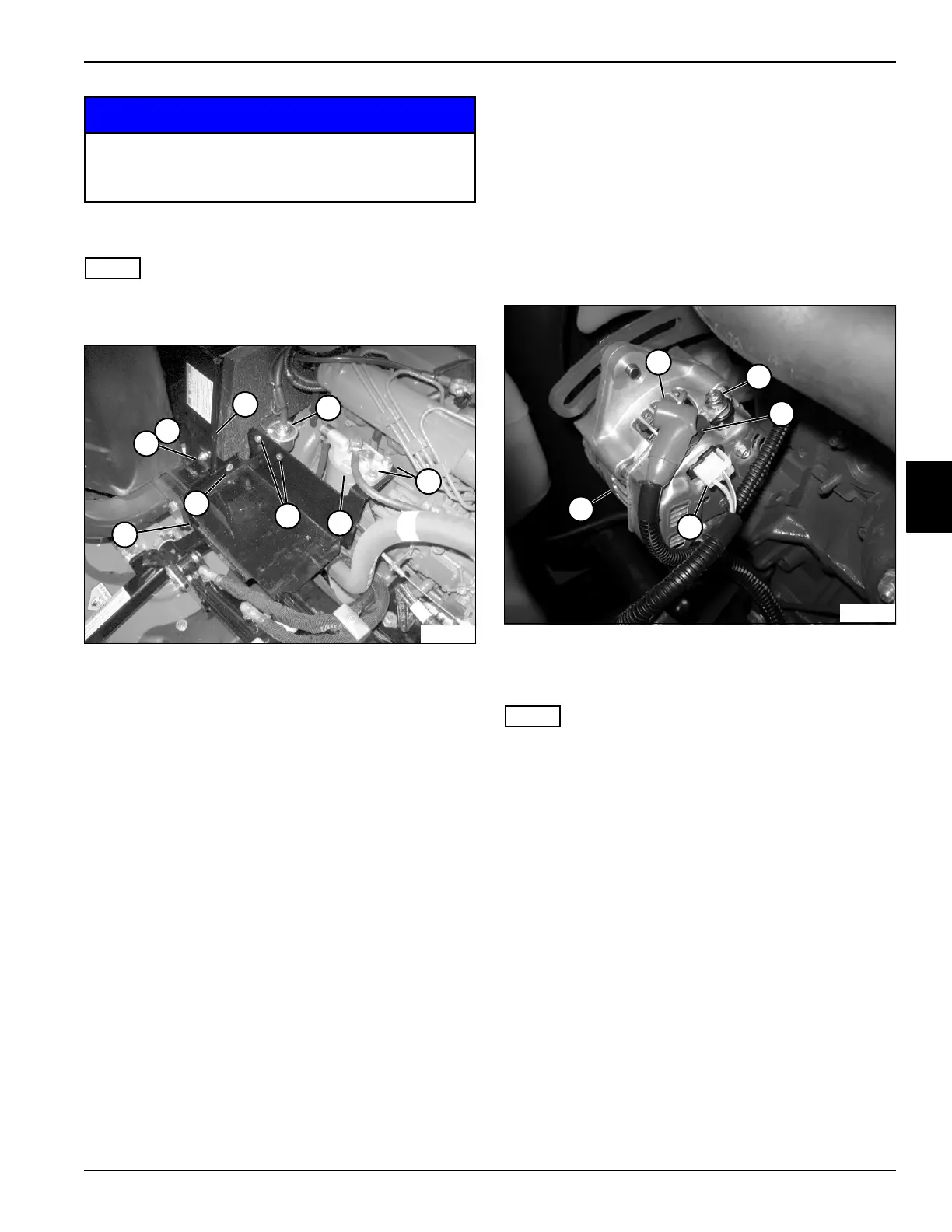

Figure 4-43
7. Support the battery tray (20).
8. Remove nut (12) and screw (13) from the controller
support (14) and battery tray (20).
9. Remove screw (19) and nut (not shown) from the
controller support (14) and battery tray (20).
10. Support the fuel solenoid (15). Remove screws (18)
and nuts (not shown) from the battery tray (20) and
fuel solenoid (15).
11. Support the fuel filter assembly (17). Remove nuts
(16) and screws (not shown) from the fuel filter
assembly (17) and battery tray (20).
12. Remove the battery tray (20).
Installation Note
Install the battery tray and battery by reversing the order
of removal.
Alternator
Removal and Installation
See Figures 4-44 and 4-45.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Raise the hood.
3. Disconnect the negative (–) battery cable at the
battery.
Figure 4-44
4. Remove the boot (1) from the terminal, and slide it
down the wire.
NOTE
Label all wires before disconnecting to ensure correct
installation.
5. Remove lock nut (2) and disconnect wire (3) from
terminal.
6. Disconnect wiring connector block (4) from the
alternator (5).
Never place used batteries in the garbage.
Dispose of used batteries in accordance with all
applicable regulations.
17
20
12
13
14
18
15
16
19
TN1452
TN1456
1
2
3
5
4
To Next Page
