HYDROSTATIC POWER TRAIN
4181383 First Edition 5-27
5
Traction Pump
Removal and Installation

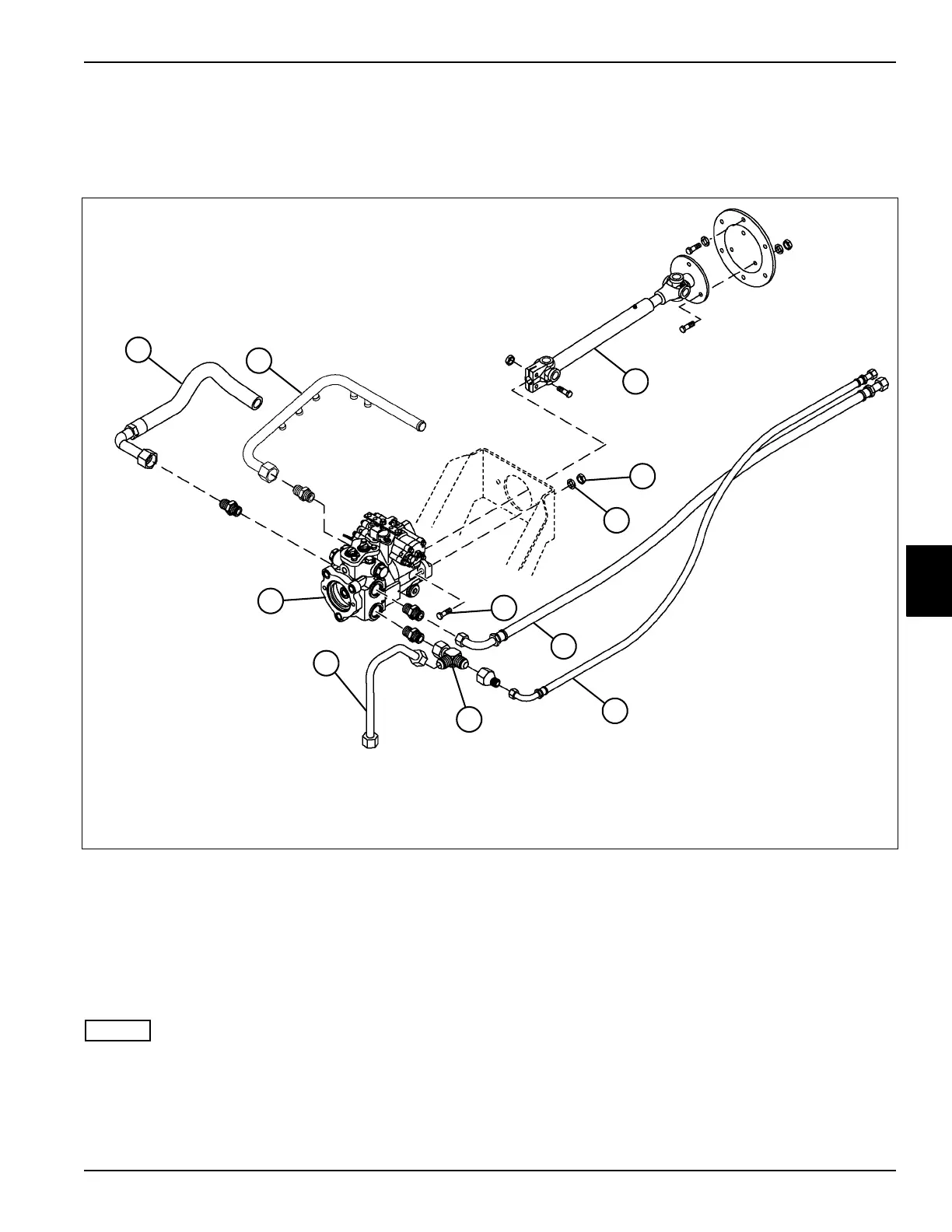

See Figures 5-27 and 5-28.
Figure 5-27
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Remove the center floorboard and the seat.
3. Drain hydraulic oil tank.
4. Remove gear pump. (See “Gear Pump” on
page 6-41.)
NOTES
• Label all hydraulic hoses before disconnecting to
ensure correct installation.
• Close all openings with caps or plugs to prevent
contamination.
5. Disconnect hoses (1 and 2).
6. Disconnect tee fitting (9).
7. Disconnect hoses (7 and 8).
1
2
6
5
4
3
7
8
9
10
11
To Next Page
