Textron Jacobsen AR-5 Technical/Repair Manual

ELECTRICAL
4181383 First Edition 4-69
4
Plug-In Fuses
Removal and Installation

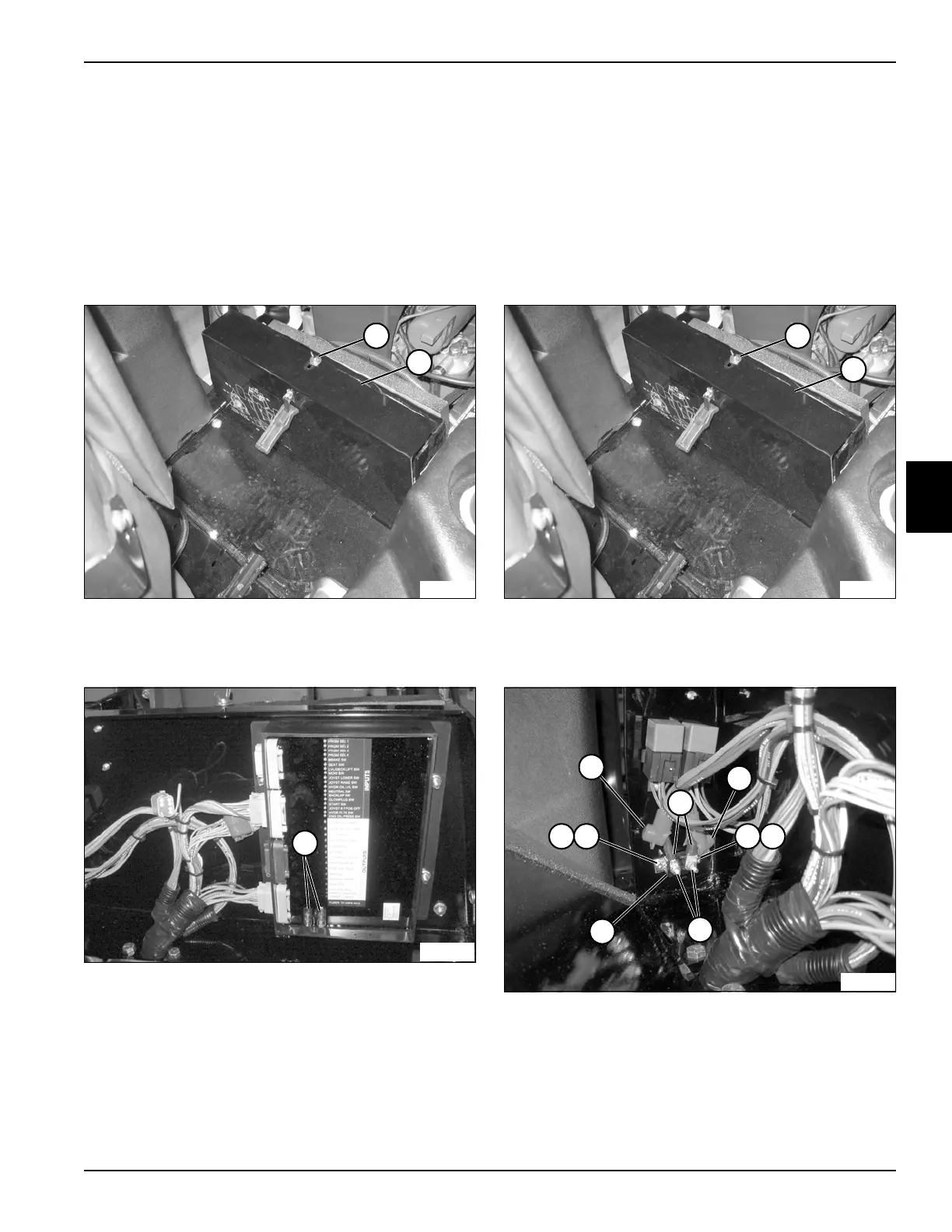

See Figures 4-48 and 4-49.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Raise the hood.
3. Disconnect the negative (–) battery cable at the
battery.
Figure 4-48
4. Move seat forward, loosen wing nut (1), and open
control module cover (2).
Figure 4-49
5. Remove fuse(s) (3) by pulling the fuse(s) straight out
of the fuse holder.
Installation Note
Apply dielectric grease (Jacobsen part number 365422)
to connection and install plug-in fuse(s) by reversing the
order of removal.
Circuit Breaker
Removal and Installation
See Figures 4-50 and 4-51.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Raise the hood.
3. Disconnect the negative (–) battery cable at the
battery.
Figure 4-50
4. Move seat forward, loosen wing nut (1), and open
control module cover (2).
Figure 4-51
5. Remove the boot (1) from the terminal and slide it up
the wire (2).
6. Remove nut (5) for wiring connection.
7. Remove two nuts (3) and screws (4).
8. Remove circuit breaker (6).
TN1475
1
2
TN1457
3
TN1475
1
2
TN1504
4
6
3
1
43
2
1
5
