ACCESSORIES AND MISCELLANEOUS REPAIR
4181383 First Edition 9-11
9
Work Light Kit
Removal and Installation

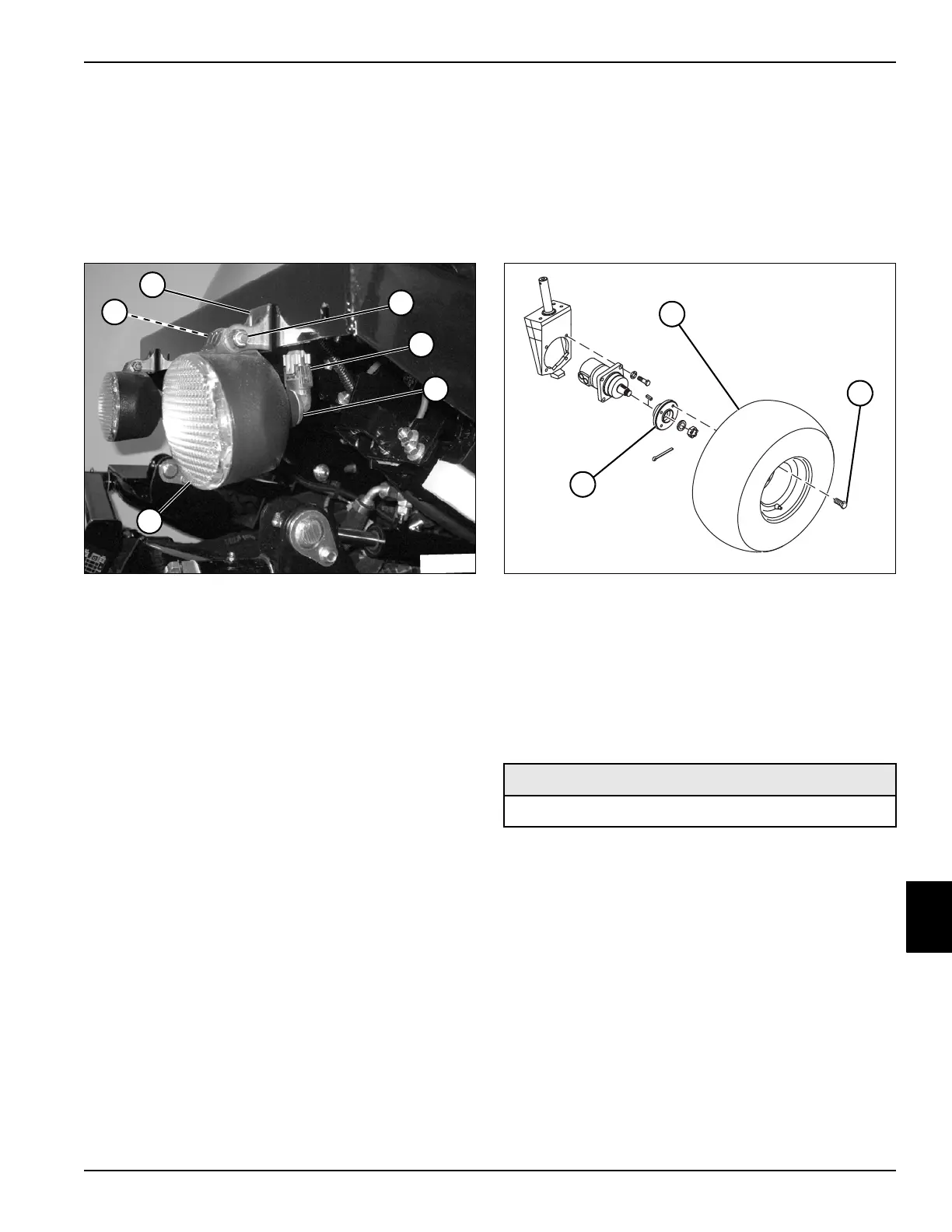

See Figure 9-15.
1. Park mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Open hood and disconnect negative battery cable.
Figure 9-15
3. Remove lock nut (3) and carriage bolt (1) from
mounting bracket (2).
4. Disconnect the wire harness connector (4) from the
work light bulb (5).
5. Remove work light (6).
6. To replace bulb, rotate bulb (5) at harness connector
end counterclock wise until bulb stops. Pull bulb
straight out to remove.
Installation Notes
• Install the work light bulb into the housing and work
light assembly by reversing the order of removal.
• Adjust the work lights to project the desired distance
in front of the mower.
Rear Wheels
Removal and Installation
See Figure 9-16.
1. Park mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Remove starter key from mower and set park brake.
Figure 9-16
3. Loosen, but do not remove, wheel-to-hub lug bolts
(2).
4. Raise and support rear of mower until wheels are off
the ground.
5. Remove wheel-to-hub lug bolts (2). Remove wheel
(1) and inspect tread area for tears or other damage.
6. Replace tire if damage is excessive.
Installation Notes
• Inspect and clean any rust from hub (3) or wheel
mounting area. Apply Anti-Seize compound to lug
bolts.
• Install wheel by reversing the order of removal.
• Torque wheel-to-hub lug bolts to 85—95 lb-ft. (115—
128 N·m).
• Set tire pressure to 12 p.s.i (83 kPa).
T
N
1
5
2
8
2
1
3
4
5
6
Required Materials
Anti-Seize Compound
T
N
1
5
4
3
2
3
1
