Textron Jacobsen AR-5 Technical/Repair Manual

5-26 4181383 First Edition
HYDROSTATIC POWER TRAIN
5
Repair
Drive Shaft
Removal and Installation

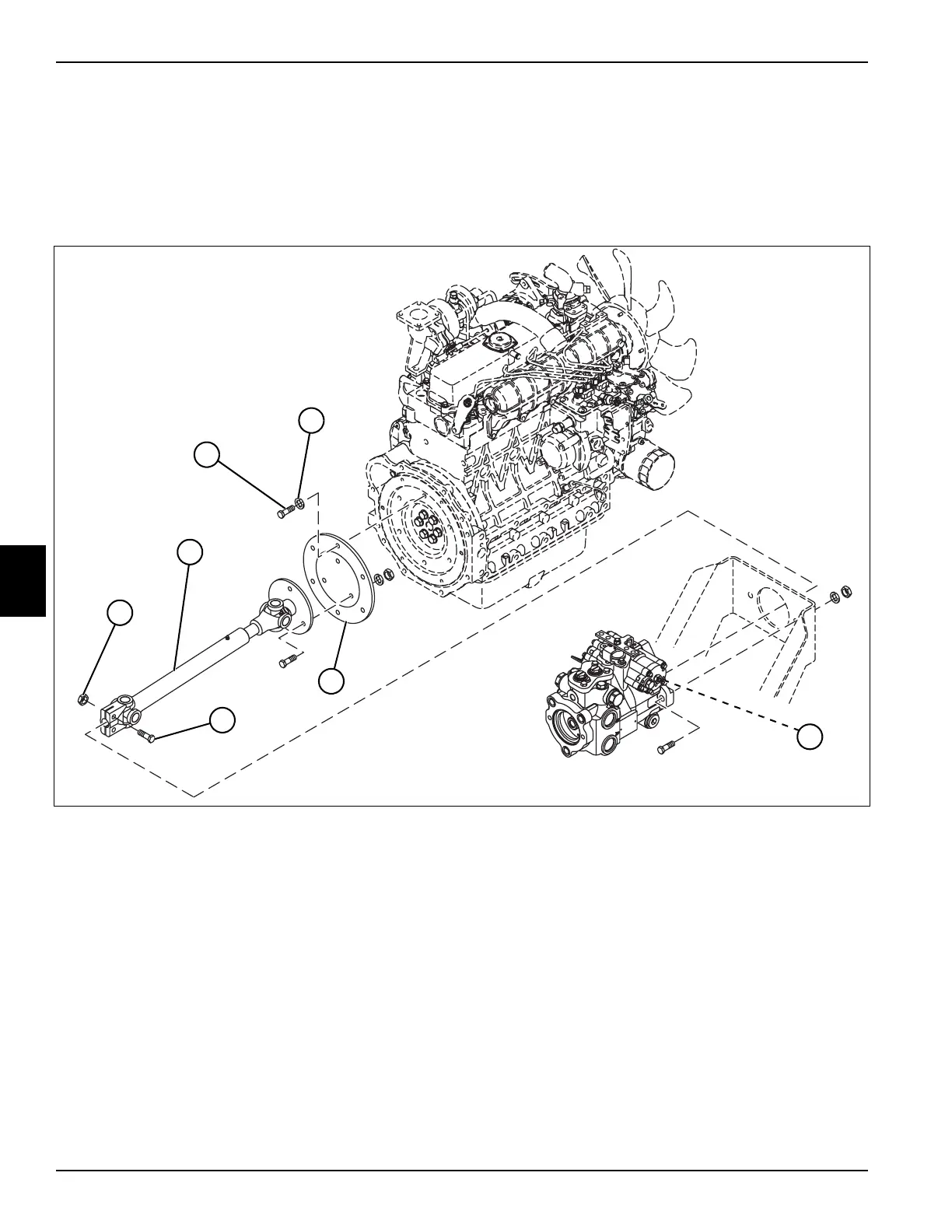

See Figure 5-26.
Figure 5-26
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Remove nut (1) and screw (7).
3. Disconnect drive shaft (2) from traction pump input
shaft (5).
4. Remove screws (3) and washers (4).
5. Remove drive shaft (2) and drive shaft flange (6) as
an assembly.
6. Remove drive shaft flange (6) from drive shaft (2).
Installation Note
Install the drive shaft by reversing the order of removal.
TN1519
1
7
3
5
4
2
6
