Textron Jacobsen AR-5 Technical/Repair Manual

4-16 4181383 First Edition
ELECTRICAL
4

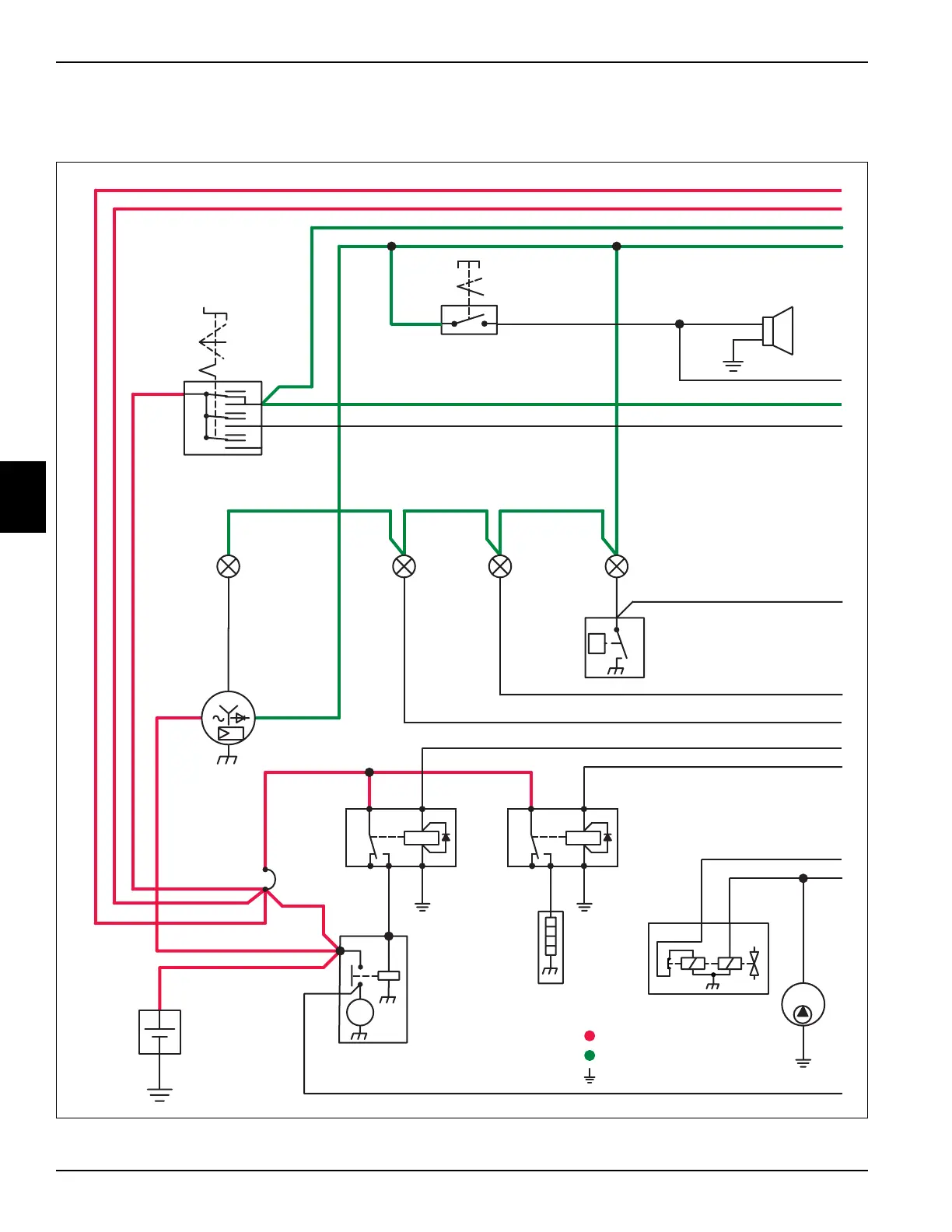

Power Circuit Schematic
See Figures 4-5 through 4-8.
Figure 4-5
Brn/YelBrn/Yel
G
U
3
8787A 85
8630
Org/
Ye l
Pnk/Blu
Org/Yel
Pnk/Blu
Blk
Org/
Blu
Gry/
Red
Pur/
Wht
L
Ye l
Red
Red
Red
Red
Red
Blk
Red
Brn/Yel
Org/Blu Org/Blu
Org/
Blu
Blu/
Blk
Blu/
Wht
Blk
Red B I
M1
Starter
Motor
K2
Glow
Plug
Relay
K1
Start
Relay
R1
Glow
Plugs
M
S1
Key
Switch
G1
Battery
G2
Alternator
Org/Yel Org/Yel
Splice 90Splice 90
Org/Wht
Red
Red
Red Red
Red Red
+
-
Blk
M
M2
Fuel
Pump
F1
50A
Thermal
Circuit
Breaker
Grn/Yel
WhtWht
Wht
Gry/RedGry/Red
Blu/Wht
Pnk/Blk
Org/
Wht
Org/Yel
Pnk/Blk
Blk
H4
Horn
Org/
Wht
Tan/
Blk
H8
Glow
Plug
Light
Org/
Wht
Org/
Wht
Ye l
Org/Wht Pnk/Blk
On
Off
S2
Horn
Switch
H9
Hydraulic
Filter
Pressure
Light
Org/
Wht
Org/
Wht
Org/
Wht
Pur/
Grn
8787A 85
8630
Off
Run
Start
A
B
C
D
P
Org/
Wht
Blu
Blu
B1
Engine
Oil
Pressure
Switch
H5
Engine
Oil
Pressure
Light
H7
Alternator
Light
Pur/Grn
Tan/Blk
Y1
Fuel
Shutoff
Solenoid
Pull-In Hold-In
Switched Power Circuit
Unswitched Power Circuit
Ground Circuit
TN1637
