HYDRAULICS

4181383 First Edition 6-13

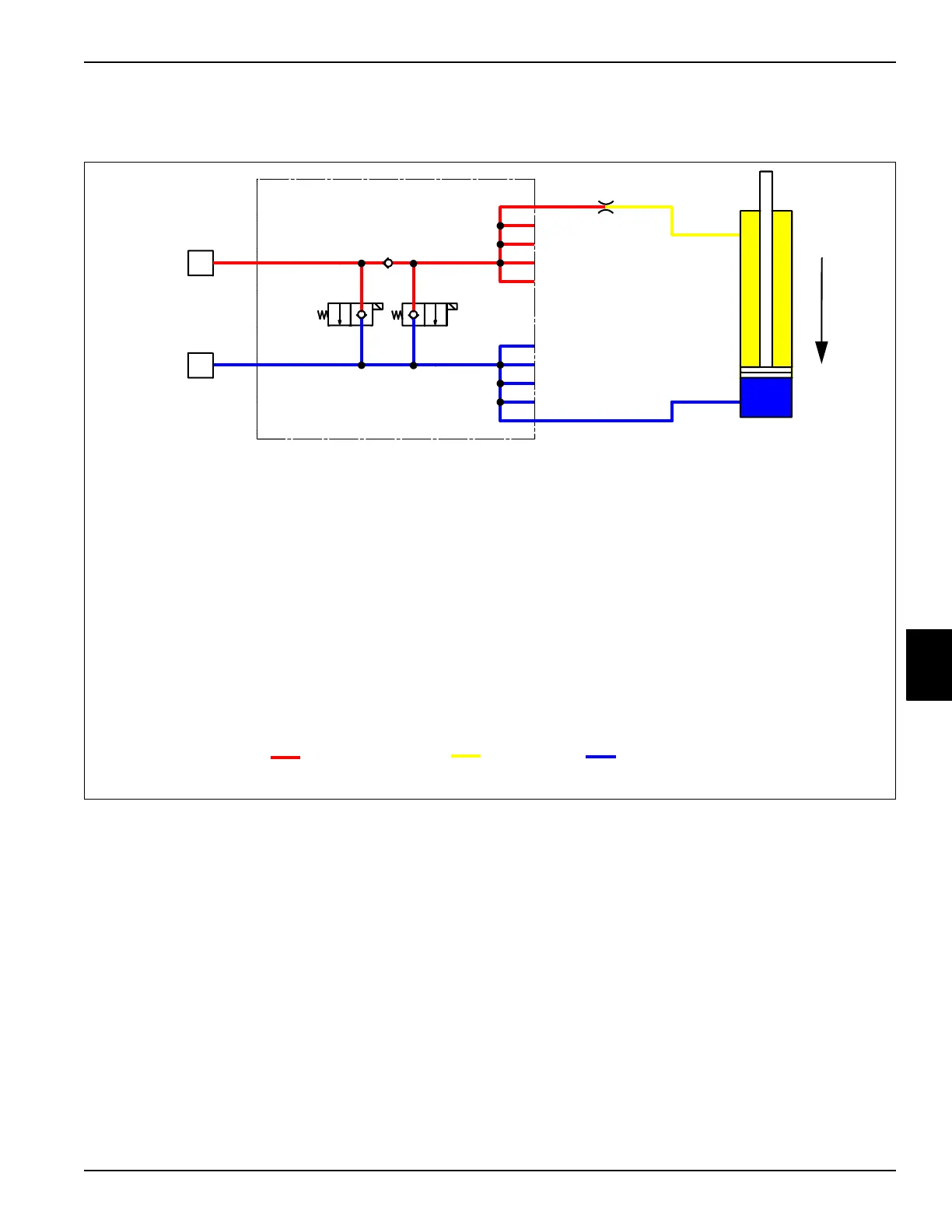

Raise Circuit Schematic

See Figure 6-8.

Figure 6-8

1 Operating Pressure Oil from Steering Valve AUX Port 2 Return Oil to Oil Filter, Oil Cooler, and Hydraulic Oil Tank

TN1372

Operating Pressure Oil

Metered Oil

Return Oil

C1 = Left Rear Cylinder—Rod End

C2 = Right Rear Cylinder—Rod End

C3 = Center Front Cylinder—Rod End

C4 = Right Front Cylinder—Rod End

C5 = Left Front Cylinder—Rod End

C6 = Left Front Cylinder—Piston End

C7 = Left Rear Cylinder—Piston End

C8 = Right Rear Cylinder—Piston End

C9 = Center Font Cylinder—Piston End

C10 = Right Front Cylinder—Piston End

Lift Valve

0.040 in.

Orifice

Check

Valve CV1

C10

Lower/Proportional

Solenoid Valve

Raise Solenoid

Valve

Left Rear

Cylinder
