Textron Jacobsen AR-5 Technical/Repair Manual

ENGINE
4181383 First Edition 3-13
3
Throttle Cable and Control Lever
Removal and Installation
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Stop the engine and remove the ignition key.

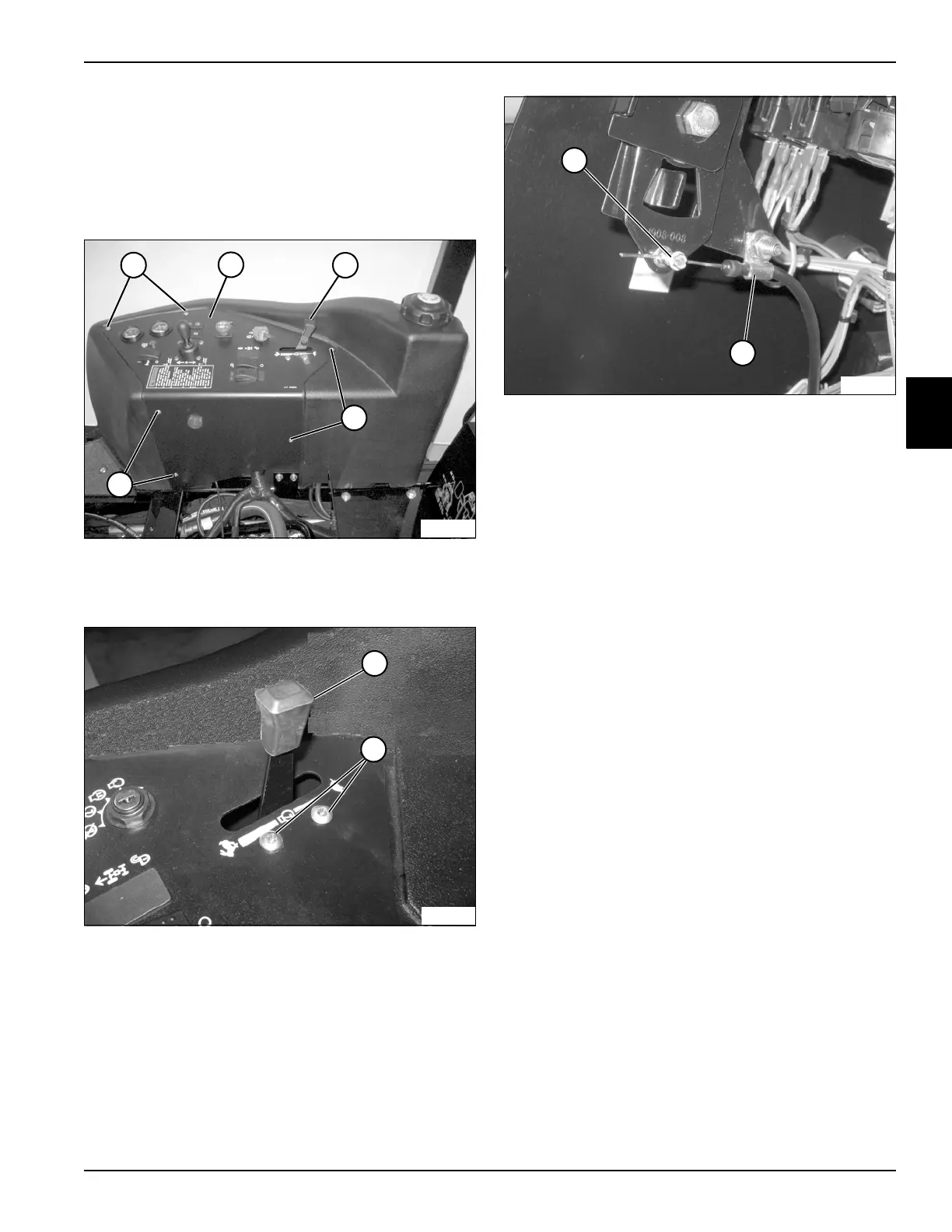

Figure 3-21
3. Remove six screws (1) and lift instrument panel (2)
up to access the throttle lever (3).
Figure 3-22
4. Remove the screws (5) and remove the throttle lever
knob (4).
Figure 3-23
5. Remove the cable clamp (7) and the wire stop screw
(4).
6. Remove throttle lever through the bottom of the
instrument panel.
7. Repair or replace as necessary.
Installation Notes
• Install the throttle cable and control lever by reversing
the order of removal.
• When replacing a worn or broken throttle cable, route
the same as the old cable.
• Secure using existing cable clamps.
• After replacing, follow the adjustment procedure.
(See “Throttle Cable” on page 3-5.)
TN1488
1
1
1
2
3
5
4
TN1493
7
6
TN1496
