Textron Jacobsen AR-5 Technical/Repair Manual

ACCESSORIES AND MISCELLANEOUS REPAIR
4181383 First Edition 9-9
9
Traction Pedal
Disassembly and Assembly
See Figure 9-12.

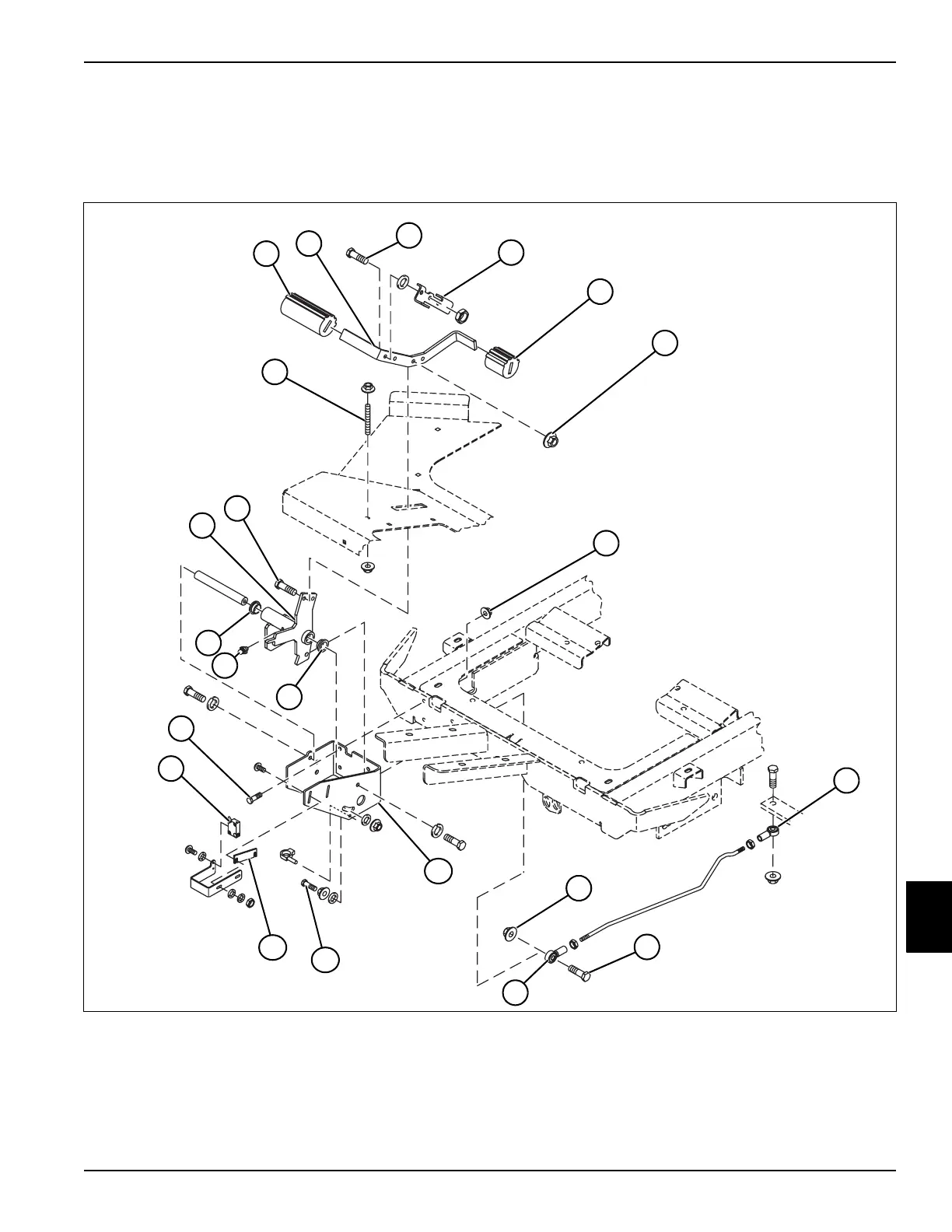

Figure 9-12
1 Pedal Grip 8 Rod End (2) 15 Hex Bolt (4)
2 Traction Pedal 9 Hex Bolt 16 Treadle Pivot Bushing
3 Hex Bolt (2) 10 Locking Hex Nut 17 Grease Fitting
4 Mow Speed Stop 11 Treadle Pivot Bracket 18 Treadle Pivot Bushing
5 Pedal Grip 12 Reverse Pedal Stop 19 Treadle Pivot
6 Locking Flange Nut (2) 13 Neutral Switch Shim 20 Hex Bolt (2)
7 Locking Flange Nut (4) 14 Neutral Switch 21 Pedal Stop
1
10
9
6
5
4
3
2
8
7
8
14
13
16
18
19
20
15
17
21
11
12
